Fire-proof Brick Hydraulic Press Machine

Fire-proof Brick Hydraulic Press Machine thumbnail-1
Fire-proof Brick Hydraulic Press Machine photo-1
US$ 50,000 - 250,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shengli
Model Number:
YF76
Contact Supplier Request Quote Chat Now
Huzhou Machine Tool Works Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Shengli
Model Number YF76
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Good appearance
2. High efficiency and low cost
3. Excellent hydraulic system
4. Easy operation and repair
5. CE,SGS

Application & Feature

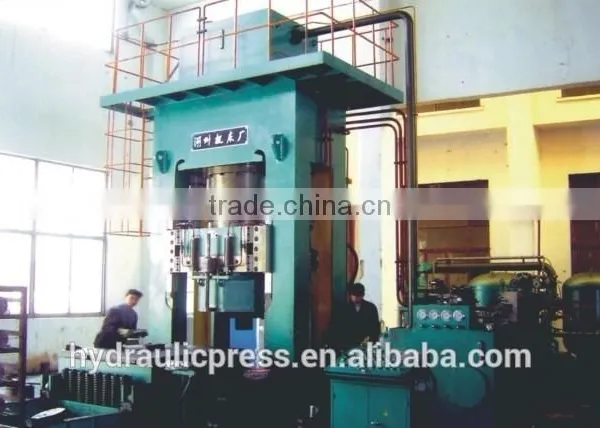

  It is designed for a special-purpose of pressing high strength and density fire-proof bricks with straight-side body, 8-point gib guided way and a float pressing movable bolster to obtain quality bricks.



  Nominal capacity: 6300 ~ 20000 KN

  Brick specification profile: 340x340 mm

  Depth: 20 ~ 50 mm





Item Unit Main Technical Parameters
YF76- YF76- YF76- YF76- YF76-1000B YF76-1000C YF76-1600C
400 630 630A 630B (Whole Rack) (Fission Rack) (Fission Rack)
Nominal Pressure KN 4000 6300 6300 6300 10000 10000 16000
Allowable Working Force KN 6300 10000 10000 10000 16000 16000 25000
Max. Working Force KN 8000 12500 12500 12500 20000 20000 32000
Executed Stroke MM 500 600 600 600 700 700 700
Stroke Times Min/Times 20 13 13 13 10 10 10
Min. Closing Height MM 520 650 650 650 700 700 750
Thickness of Workbench Plate MM 120 180 180 180 200 200 200
Top Brick Approach   Rigidity Rigidity Rigidity Rigidity Rigidity Rigidity Rigidity
Top Brick Stroke MM 350 350 350 350 500 500 500
Slider Bottom Surface Front Rear MM 635 700 700 700 1190 1190 1000
Left Right MM 635 700 700 700 800 800 900
Workbench Surface Front Rear MM 820 920 920 920 1200 1200 1250
Left Right MM 730 820 820 820 1000 1000 1100
Overall Size Front Rear MM 2110 4387 4387 4387 6000 5355 4500
Left Right MM 2812 4694 4694 4694 5670 4900 5742
Height MM 5155 6060 6060 6060 7250 7290 8090
Main Motor Power/Quality KW 37 55 55 55 75 90 132
KG 17900 41500 41500 43500 74000 85000 106000
