Application & Feature
It is mainly available for pressing glass fiber reinforced plastic such as SMC,BMC,DMC,GMC,LET-D etc. Providing four-column and straight side style with high strength and functions of quick ram descent, controllable multistage pre-pressing, pressurizing and micro-mould-open. It's the ideal solutions for applications of aviation and spaceflight, shipbuilding, automobile, architecture, petrochemical, energy, electronics and culture & spots industries.
Nominal capacity: 1000-60000KN
Main Technical Data
| Item | Unit | HJ078-63 | HJ078-100 | HJ078-200 | HJ078-315 | HJ078-400 | HJ078-500 | HJ078-630 | HJ078-800 | HJ078-1000 | HJ078-1250 | HJ078-1600 | HJ078-2000 | HJ078-2500 | HJ078-3000 | |
| Nominal Force | KN | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 30000 | |
| Prepressing Force | KN | 250 | 315 | 630 | 1000 | 1250 | 2000 | 2500 | 2500 | 3150 | 3150 | 5000 | 6300 | 8000 | 10000 | |
| Mould-open Force | KN | 125 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 1600 | 1600 | 2500 | 3150 | 4000 | 5000 | |
| Knock-off Force | KN | 125 | 250 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 | |
| Opening Table Size | LR | mm | 570 | 720 | 930 | 1260 | 1300 | 1400 | 1600/2000 | 2000 | 2000 | 2200 | 2500/3000 | 3000 | 3200 | 3600 |
| FB | 500 | 630 | 900 | 1200 | 1300 | 1400 | 1600/1800 | 1600 | 1600 | 1600 | 1600/1600 | 2000 | 2500 | 2500 | ||
| T-slot | 22 | 22 | 28 | 28 | 36 | 36 | 36 | 36 | 36 | 36 | 42 | 42 | 42 | 42 | ||
| Daylight | mm | 800 | 900 | 1120 | 1250 | 1250 | 1500 | 1500/2000 | 1600 | 2000 | 2000 | 2000/1700 | 2500 | 2500 | 2500 | |
| Ram Stroke | mm | 500 | 630 | 710 | 800 | 800 | 900 | 1100/1400 | 1200 | 1400 | 1400 | 1500/1200 | 1500 | 1500 | 1500 | |
| Knock-off Stroke | mm | 200 | 200 | 200 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
| Max.System Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Quick Descent Speed | mm/s | 120 | 120 | 120 | 150 | 180 | 180 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | |
| Pre-pressing Speed | mm/s | 5~25 | 5~25 | 5~20 | 5~20 | 5~20 | 5~20 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | |
| Pressing Speed | mm/s | 2~10 | 2~10 | 2~7 | 2~7 | 2~7 | 2~7 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | |
| Mould-open Speed | mm/s | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 2~25 | 2~25 | 2~25 | 2~25 | |
| Ram Return Speed | mm/s | 100 | 100 | 100 | 120 | 140 | 170 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | |
| Slow Knock-off Speed | mm/s | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 2~30 | 2~30 | 2~30 | 2~30 | |
| Quick Ejecting Speed | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 80 | 80 | 80 | 80 | 100 | 100 | |
| Press-body Type | Four-column | Four-column | Four-column | Four-column | Four-column | Four-column | Framed | Framed | Framed | Framed | Framed | Framed | Framed | Framed | ||
1.Specifications mentioned above are subject to any change without notice.
2.The products can be tailored as customer's desire or provide a complete set of FRP fabrication technology.
Standard Configuration

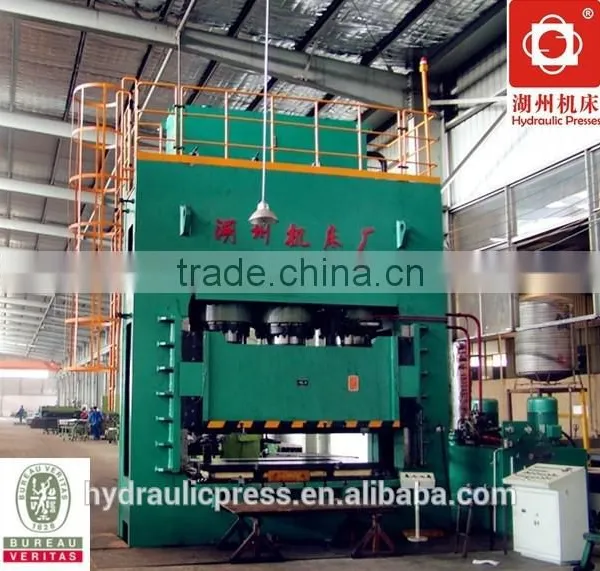

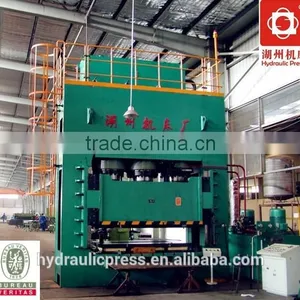

1.Four-column type for including and below 500 ton, framed body type for including and above 630 ton with X-type rail guide.
2.Omron PLC and touch screen.
3.Pressure transducer.
4.Displacement transducer.
5.Excellent home-made pumps and valves.
6.Excellent home-made seal rings.
7.Schneider electrical parts.
8.Light-curtain protector in front of the press body.
9.Hydraulic station at the right of the press body for including and below 500 ton, at the top of the press body for including and above 630 ton.
10.Digital display of speed and pressure.
11.Ejecting outside the die.
Optional Accessories
1.Movable working table.
2.Hydraulic float-rail and die-change bracket outside press body.
3. Die-change trolley.
4.Imported pumps and valves
5.Imported seal rings
6.Other brand electrical parts
7.Die heating system.
8.Light-curtain protector at the back of the press body.
9.NC control of speed, pressure and temperature.
10.Control system of ejecting inside the die, loosing-core, vacuum and blowing knock-off.
FAQ ABOUT HYDRAULIC PRESSES
Does welded beam easy deformation?
We treat it with tempering treatment to reduce internal stress.Besides, we also make casting beam.
The oil cylinder is important part,what if it broke?
We use forging cylinder which is forged by one 45# round steel,no welded.The broke rate is almost zero.
What about the electric system?
We use PLC electric control system with less line,easy maintenance and can programmable.
If part of the machine broke,does it easier to buy it in our country?
We can use customer appointed accessories if necessary.
Do you provide after service?
We provide technical service for life.
we are manufacturer of hydraulic press more than fifty years and can manufacture non-standard hydraulic press as your need( such as large worktable,deep slider stroke,multiple cylinder,high speed,double acting...)
.
