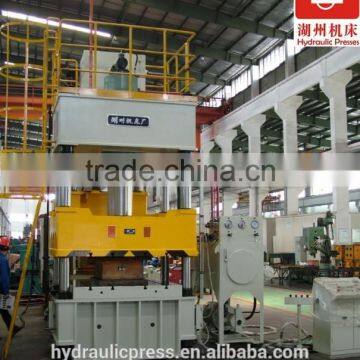

Hydraulic Press For Rubber & Plastic Products

Hydraulic Press For Rubber & Plastic Products thumbnail-1
Hydraulic Press For Rubber & Plastic Products photo-1
US$ 10,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Shengli
Contact Supplier Request Quote Chat Now
Huzhou Machine Tool Works Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Shengli
Model Number HJS32-630
Machine Type Beading Machine
Raw Material Other, Plastic,rubber,electric-motor,ceramic ware,metal product,powder
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Other, Adjust, manual, semi-automatic
Extra Services Other, Flanging, drawing, straightening, press-fit
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

 Applications & Features



1) Machine Structural Feature:
1. HJS32 Series 4- Column Hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products. Presses offer fast, easy, and safe setup and operation as well as years of trouble-free service.
2. 4- Column Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.
3. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.
5. The entire equipment be totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety.





2) ACCURL Press Features:

1. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.
2. Main cylinder is specially designed for high velocity, motor uses less power, high ascending and descending speed, increased efficiency.
3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.



4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe.
5. Piston has been heat treated and precision ground finished, uses high quality, imported oil seals & packing; high wear resistance and durability.
6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
7. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
8. All pipes, flange and joint with vibrations proof and leakage proof design and setting.





9. Machining is carried out on modern Pentahedron machining center and CNC boring & milling machine to guarantee maximum precision.

3) Ram Adjustment and Structure:
1. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain.
2. The Machine Adjustable stroke control, Pressure regulator and gauge, allows to limit the ram pressure. Can move the ram up slowly,which allows the operator to control work piece conveniently.
3. Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.





4). Electrical System and the Safety Interlock:
1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. The machine by the European Union CE certification and ISO quality system certification.
4. Meet standards and legislation Security (protection man / machine),such as PPRPS, EU CE,NT-16 and NR-12, NR-13.





5) Presses Control System:
1.Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.
2. PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds.
3. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
4. Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.









Main Technical Data

Item Unit YF31-25 YB32-40A YC32-63A HJS32-100 HJS32-200 HJS32-315 HJS32-400
Serial Number   YW03 YW043 YW06 GYZ11N2 GYZ12M6 GYZ1242 GYZ11N5
Nominal Force KN 250 400 630 1000 2000 3150 4000
Eject Force KN 60 100 160 300 400 630 630
Return Force KN 110 150 125 160 240 300 350
Max.Working Pressure Mpa 25 25 25 25 25 25 25
Ram Stroke mm 250 320 500 630 710 800 800
Eject Stroke mm 125 150 160 200 250 300 300
Daylight mm 450 520 800 900 1120 1250 1250
Ram Speed Quick descent mm/s 45 55 110 185 200 220 220
Work 10~24 15~36 9~22 10~24 7.5~18 6~15 7.5~18
Return 55 105 105 140 150 150 210
Eject Speed Eject mm/s 100 150 90 75 95 75 110
Retreat 200 380 220 155 160 130 200
Opening Table Size Left-to-right mm 360 450 570 720 930 1260 1300
Front-to-back 320 400 500 630 900 1200 1300
Table Height above Floor mm 750 870 800 860 550 650 710
Overall Size Lefe-to-right mm 1100 1240 1850 2010 2360 2840 3600
Front-to-back 900 1120 1860 1690 2000 2000 2540
Height above Floor 1900 2260 2910 3490 3830 4340 4640
Motor Power kw 3 5.5 5.5 11 18.5 22 37





Item Unit HJS32-500 HJS32-500 HJS32-630 HJS32-800 HJS32-1000 HJS32-2500 HJS32-4000
Serial Number   GYZ11N6 YZ11P7 GYZ11N7 / / / /
Nominal Force KN 5000 5000 6300 8000 10000 25000 40000
Eject Force KN 1000 1000 1000 1250 2000 2500 4000
Return Force KN 380 570 430 720 1600 2000 4360
Max.Working Pressure Mpa 25 25 25 25 25 25 25
Ram Stroke mm 900 900 1000 1000 1000 1000 1000
Eject Stroke mm 300 300 300 350 450 500 500
Daylight mm 1500 1500 1600 1600 1600 1600 1700
Ram Speed Quick descent mm/s 250 160 250 150 150 150 150
Work 6~15 8~15 5~12 5~12 5~12 3~5 5
Return 185 125 165 120 75 74 55
Eject Speed Eject mm/s 75 75 75 80 60 50 60
Retreat 160 160 160 160 120 160 100
Opening Table Size Left-to-right mm 1400 1980 1900 1880 2000 3000 3500
Front-to-back 1400 1600 1600 1600 1800 2500 2500
Table Height above Floor mm 500 500 500 500 450 450 380
Overall Size Lefe-to-right mm 3750 4470 5140 5390 5940 8800 11085
Front-to-back 2620 2539 2539 2480 3000 3800 6350
Height above Floor 5220 5107 5570 5535 5400 6640 7088
Motor Power kw 37 44 36 60 74 81.55 161.33









FAQ ABOUT HYDRAULIC PRESSES





The oil cylinder is important part,what if it broke?



We use forging cylinder which is forged by one 45# round steel,no welded.The broke rate is almost zero.







What about the electric system?



We use PLC electric control system with less line,easy maintenance and can programmable.







If part of the machine broke,does it easier to buy it in our country?



We can use customer appointed accessories if necessary.







Do you provide after service?



We provide technical service for life.







we are manufacturer of hydraulic press more than fifty years and can manufacture non-standard hydraulic press as your need( such as large worktable,deep slider stroke,multiple cylinder,high speed,double acting...)
