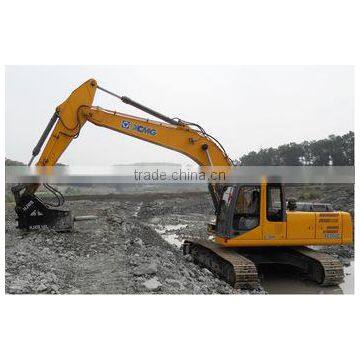

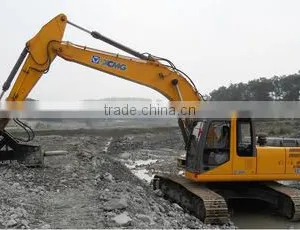

26ton Excavator for Sale

                                  Model

Unit

XE260C

Operating weight

kg

25500

Standard bucket capacity

m³

1.05~1.25

Engine

Engine Model

/

ISUZU BB-6BG1TRP

Direct injection

/

√

 Four strokes

/

√

Water cooling

/

√

Turbo charged

/

√

 Air to air intercooler

/

×

No. of cylinders

/

6

Rated power/speed

kw/rpm

128.5/2100

Max. torque/speed

N.m

637/1800

Displacement

L

6.494

Main Performance

Travel speed

km/h

5.5/3.5

Swing speed

r/min

132.1

Max. gradeability

/

≥35

Ground pressure

kPa

51.7

Max.Bucket digging force

kN

163

Max.arm crowd force

kN

116

Max.traction force

kN

194

Rate flow of main pump

L/min

2×231

Max pressure of prime relief valve

MPa

31.5/34.4

Max pressure of travel system

MPa

34.3

Max pressure of swing system

MPa

23

Max pressure of pilot system

MPa

3.9

Oil Capacity

Fuel tank capacity

L

400

Hydraulic tank capacity

L

240

Engine lubrication

L

25

Dimentions

Overall length

mm

10160

Overall width

mm

2990

Overall height

mm

3100

Overall width of upperstructure

mm

2830

Track length

mm

4270

Overall width of undercarriage

mm

2990

Crawer width

 mm

600

Crawer gauge

mm

2390

Clearance under counter weight

mm

1050

Ground clearance

mm

470

Min.tail swing radius

mm

2985

Work Scope

Max. digging height

mm

9595

Max. dumping height

mm

6725

Max. digging depth

mm

6960

8inch horizonal digging depth

mm

6750

Max. vertical wall digging depth

mm

6090

Max. digging reach

mm

   10240

Min. swing radius

mm

3850
