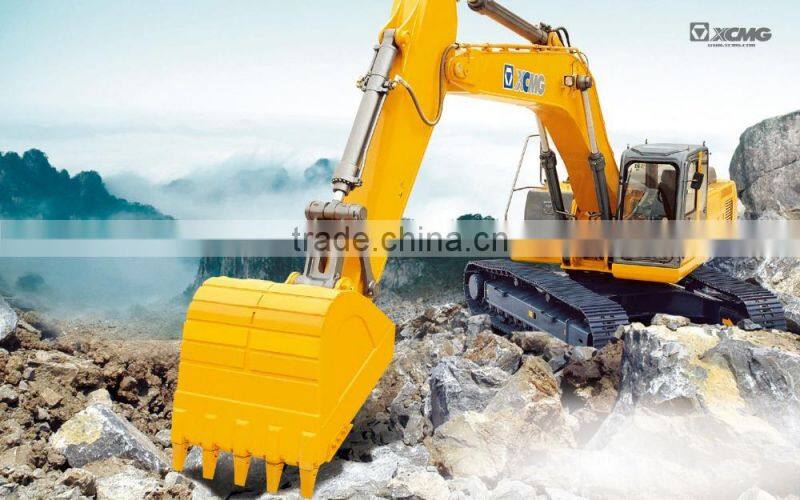

Factory price 33.5ton excavator XE335C
Model | Unit | XE335C | |
Operating weight | kg | 33800 | |
Standard bucket capacity | m³ | 1.4~1.6 | |
Engine | Engine Model | / | ISUZU AA-6HK1XQP |
Direct injection | / | √ | |
Four strokes | / | √ | |
Water cooling | / | √ | |
Turbo charged | / | √ | |
Air to air intercooler | / | √ | |
No. of cylinders | / | 6 | |
Rated power/speed | kw/rpm | 184/2000 | |
Max. torque/speed | N.m | 872.8/2000 | |
Displacement | L | 7.79 | |
Main Performance | Travel speed | km/h | 5.5/3.3 |
Swing speed | r/min | 9.7 | |
Max. gradeability | / | ≥35 | |
Ground pressure | kPa | 66 | |
Max.Bucket digging force | kN | 225 | |
Max.arm crowd force | kN | 183 | |
Max.traction force | kN | 261 | |
Hydraulic System | |||
| Rate flow of main pump | L/min | 2×280 |
Max pressure of prime relief valve | MPa | 31.5/34.3 | |
Max pressure of travel system | MPa | 34.3 | |
Max pressure of swing system | MPa | 27.5 | |
Max pressure of pilot system | MPa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 630 |
Hydraulic tank capacity | L | 320 | |
Engine lubrication | L | 28 | |
Dimensions | Overall length | mm | 11246 |
Overall width | mm | 3190 | |
Overall height | mm | 3330 | |
Overall width of upper structure | mm | 2960 | |
Track length | mm | 4725 | |
Overall width of undercarriage | mm | 3190 | |
Crawler width | mm | 600 | |
Track length on ground | mm | 3183 | |
Crawer gauge | mm | 2590 | |
Clearance under counter weight | mm | 1170 | |
Ground clearance | mm | 495 | |
Min.tail swing radius | mm | 3450 | |
Work Scope | Max. digging height | mm | 10404 |
Max. dumping height | mm | 7256 | |
Max. digging depth | mm | 7158 | |
8inch horizonal digging depth | mm | 6935 | |
Max. vertical wall digging depth | mm | 6526 | |
Max. digging reach | mm | 10887 | |
Min. swing radius | mm | 4424 | |
Shipping
Certifications Of Product
Other models for your choose
Other hot selling products on sale
Shanghai CANMAX Electronic & Mechanical Equipment Co., Ltd is officially approved by Shanghai governmental foreign economic relations and trade commission, and we professionally operate imports, exports and sales engineering machinery equipment, etc.
Our company is located in Shanghai which is a financial, trade and shipping center in china. All these give our company an obvious superiority in trade, transportation and material flow.
CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " think what customer cares, do what client wants", devote ourselves to what customer needs, and provide products and service with high performance and good price.
After years of market expansion and win-win cooperation, we gain a lot of marketing experience in Engineering Machinery. And we now enjoy customers trust and a good reputation. We have already exported our products to more than 30 countries and regions, including: USA, MEXICO, AUSTRALIA, NEW ZELAND, IRAN, YEMEN, RUSSIA, MOST AREAS OF AFRICA, CENTRAL AISA, SOUTHEAST ASIA and so on. We now still keep a steady incremental development trend.
Our products refer to construction, road construction, ports, and petroleum pipeline and other mechanical equipments, totally 11 general classes, up to thousands of products.
Why choose us?
Quality:we make quality control for each unit separately ,shipping department check each goods before packing,totally avoid manufacturing defects,we care specially about cargo details and quality.
Competitive Prices : Our price is absolutely synchronization with market, the price is very reasonable.
Service:Our team always take the customer as the center, as much as possible to
help you find you want products, welcome your consultation.
CONTACT US for more detailed information
