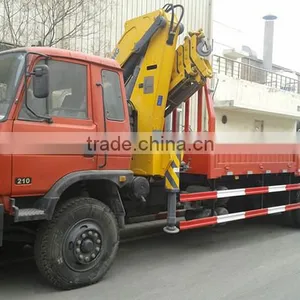

Truck Mounted Crane Jib Crane

Name: Truck Mounted Crane Jib Crane
Brand: XCMG
SKU: 141326476
Availability: InStock

US$ 52,000 - 53,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

0-10t lifting capacity

Rated Loading Capacity:

10t

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 0-10t lifting capacity

Rated Loading Capacity 10t

Max. Lifting Load 10t

Max. Lifting Height 13m

Span 10m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number SQ10ZK3Q

Certification ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

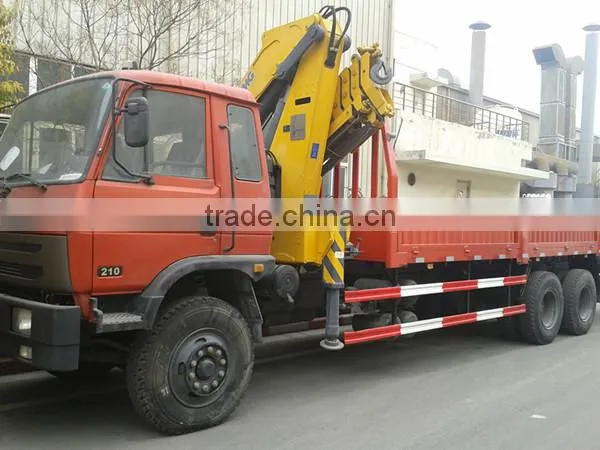

Truck-mounted Crane, 10t truck mounted crane

Classify	Items	Parameters
Chassis specification	Model of chassis	EQ1208KB3GJ1
	Manufacturer	Dongfeng
	Total weight	13000kg
	Load capacity	7295kg
	Max speed	90km/h
	Overall dimension	11050×2480×3800mm
	Carriage dimension	8450×2294×550mm
	Passengers	3
	Wheelbase	5370+1300mm
	Distance of front and rear wheels	1940/1860mm
	Drive mode/Number of shafts	*64/3**
	Approaching angle/Departure angle	32/10°
	Front suspension/Rear suspension	1245/3085mm
	Number of steel plate springs	8/12
	Type of tire	10.00-20
Engine specification	Model of engine	B21033(EGR)
	Power of engine	155/207Kw/Hp
	Engine output volume	5900mm
	Motor manufacture	Dongfeng Cummins
Truck with loading crane	Crane model
SQ10ZK3Q
Max lifting capacity		10000KG
Max lifting capacity		20T.M
Recommend power		28KW
Max oil flow		40L/MIN
Max pressure		30MPA
Oil Tank Capacity		160L
Crane weight		3477KG
Installation space		1150MM
Rotation angle		360DEGREE
Extension length		9755MM
Lifting height		13000MM
Max elevation		75DEGREE
