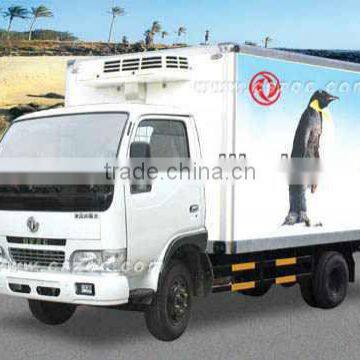

DONGFENG 153 Refrigerated Van

Name: DONGFENG 153 Refrigerated Van
Brand: Dongfeng
SKU: 141326394
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

US$ 30,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Drive Wheel:

4x4

Horsepower:

150 - 250hp

Payment & Shipping

Payment Methods:

Port of Shipment:

main ports in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Drive Wheel 4x4

Horsepower 150 - 250hp

Transmission Type Manual

Fuel Type Diesel

Brand Name Dongfeng

Model Number EQ5146XLC2

Specifications

This van adopts DONGFENG original packaging EQ1146GJ2 chassis, the function is remarkable, performance is steady

More details about this refrigerated van:

Model	EQ5146XLC2 refrigerated van		Chassis Model	EQ1146GJ2 second kind
Weight parameter (kg)	Load weight	7205	Outline dimensions (mm)	8630×2470×3565
	Curb weight	7500	Carriage dimensions(mm)	6000×2220×2050
	MAX overall weight	14900	Wheelbase (mm)	5000
Engine	Model	EQB210-20	type	Water-cooled, strait line ,six cylinder four-stroke supercharge diesel engine
Engine	Power/ Displacement	155/5880	Product factory	DONGFENG Cummins engine limited company
Performance parameter	Max speed (km/h)	85	Track span (mm)	Front axle	1940
	Max creeping slope capacity (%)	28	Track span (mm)	Rear axle	1860
	Oil consumption/100K(L)	22.4	Reaching out of vehicle (mm)	Front overhang	1245
	Slope stop for empty vehicle (%)	8.5	Reaching out of vehicle (mm)	Rear overhang	2385
	Min circle turning Diameter(m)	16	Driving angle (°)	Proximal angle	34
	Smallest ground clearance (mm)	248	Driving angle (°)	Off angle	14

Transmission description	A148 machine six-speed transmission	Steering explanation	Power steering	Brake system explanation	spring-brake
Clutch description	φ380mm spring-loaded clutch		Air condition	Available to install air condition have not fluorine
Front axle description	Hold fist type I beam structure ,5T		Rear axle description	10T cast rigid ,,the final gear ratio is 6.33
Frame explanation	Ram rivet joint structure ,vehicle frame width is 861MM		Frame max transversal surface	250×8×7mm
Cab	CPB12 G flat head single take sleeper cab
