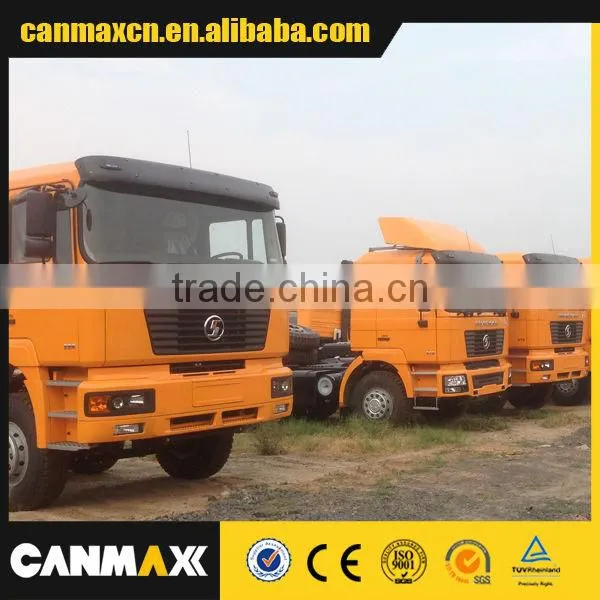

hot selling Dumper truck SHACMAN truck trailer top two
- 200 Unit / Units per Month
- Andy port of China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Drive Wheel: | 6x4 | Capacity (Load): | 21 - 30t | Horsepower: | 251 - 350hp |
Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 2 |
Fuel Type: | Diesel | Gross Vehicle Weight: | 12100 | ||
Place of Origin: | Shaanxi, China | Brand Name: | SHACMAN | Model Number: | SX3251DM384 |
Dimensions (L x W x H) (mm): | 5600*2300*1500 |
Product Description
truck trailer
1. MAN technology
2. Comfortable four suspension Cabin
3. Weichai Euro II engine
4. FULLER transmission
Model | SX3251DM384 |
Drive type | 6×4 |
Weight |
|
Complete kerb mass (kg) | 12100 |
GVW (kg) | 25000 |
Dimensions |
|
Max.length(mm) | 8329 |
Max.width(mm) | 2490 |
Max.heigh(mm) | 3450 |
Front / Rear overhang (mm) | 1525/1654 |
Wheel base(mm) | 3800+1350 |
Track width(mm) | 2035/1860 |
Performance |
|
Max.speed (km/h) | 74 |
Min.turning circle(m) | 17 |
Min.ground clearance(mm) | 314 |
Approach / Departure angle (°) | 22/30 |
Max.gradeability(%) | 33 |
Engine |
|
Brand | WEI CHAI |
Model | WD12.290 |
Power(kw/HP) | 290 |
Max.Torque (N.m )/rpm | 1500/1200—1600 |
Displacement (L) | 11.596 |
Emmission Standards | Euro Ⅱ |
Transmission |
|
Brand | FAST |
Model | 10JS140 |
Control type | manual |
Gear Shift | 10-forward and 1 reverse speeds |
Clutch |
|
Type | Spring plate,diaphragm spring |
Diameter (mm) | φ430 |
Action | mechanical type,hydraulic and pneumatic operation |
Brakes |
|
Type | Drum |
Service brake | With dual-circuit |
Park brake | Power spring brake acting |
Auxiliary brake | WEVB |
Option | ABS |
Steering |
|
Type | Integral circulating ball |
Option | ZF8098 |
Chassis |
|
Type | Ladder structure with |
Dimensions (mm) | 300×80×(8+7) |
Suspension |
|
Front Suspension | Longitudinal leaf spring |
Rear Suspension | Inverted leaf spring stabilizator suspension |
Axles |
|
Brand | HANDE |
Front axle | 7500kg MAN |
Rear axle | 16000kg(each other) STR |
Ratio | 5.73(Option 4.8) |
Tyres |
|
Type (Standard) | 12.00R20 |
Option | 11.00R20/12R22.5 |
Fueltank |
|
Tank capacity (L) | 380 |
Material | Metal |
Electrics |
|
Type | 24V |
Starter | 5.58kw(24V) |
Generator | 1.54kw(28V 55A) |
Battery | 2×135Ah |
Cab |
|
Type | MAN F2000, Mid-lengthened flat roof |
Equipments | 2 rear window, mechanical clerestory, |
Option | electric windows, electricity heated rear-view mirror,CD,Tachograph; |
Other |
|
Platform dimentions(mm) | 5600×2300×1500 |
Platform specification (mm) | Floor 8, Side 4 |
