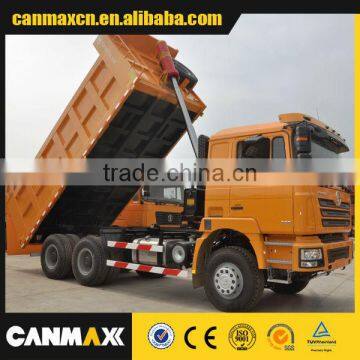

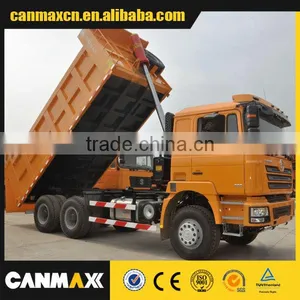

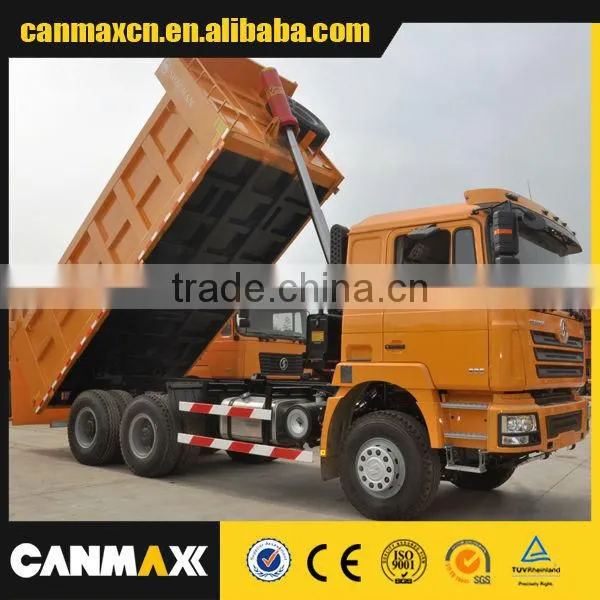

hot selling Dumper truck SHACMAN trucks for sale
- 200 Unit / Units per Month
- Andy port of China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Drive Wheel: | 6x4 | Capacity (Load): | 21 - 30t | Horsepower: | 251 - 350hp |
Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 2 |
Fuel Type: | Diesel | Gross Vehicle Weight: | 12100 | ||
Place of Origin: | Shaanxi, China | Brand Name: | SHACMAN | Model Number: | SX3251DM384 |
Dimensions (L x W x H) (mm): | 5600*2300*1500 |
Product Description
Specifications
trucks for sale1. MAN technology
2. Comfortable four suspension Cabin
3. Weichai Euro II engine
4. FULLER transmiss
trucks for sale
1. MAN technology
2. Comfortable four suspension Cabin
3. Weichai Euro II engine
4. FULLER transmission
Model | SX3251DM384 |
Drive type | 6×4 |
Weight |
|
Complete kerb mass (kg) | 12100 |
GVW (kg) | 25000 |
Dimensions |
|
Max.length(mm) | 8329 |
Max.width(mm) | 2490 |
Max.heigh(mm) | 3450 |
Front / Rear overhang (mm) | 1525/1654 |
Wheel base(mm) | 3800+1350 |
Track width(mm) | 2035/1860 |
Performance |
|
Max.speed (km/h) | 74 |
Min.turning circle(m) | 17 |
Min.ground clearance(mm) | 314 |
Approach / Departure angle (°) | 22/30 |
Max.gradeability(%) | 33 |
Engine |
|
Brand | WEI CHAI |
Model | WD12.290 |
Power(kw/HP) | 290 |
Max.Torque (N.m )/rpm | 1500/1200—1600 |
Displacement (L) | 11.596 |
Emmission Standards | Euro Ⅱ |
Transmission |
|
Brand | FAST |
Model | 10JS140 |
Control type | manual |
Gear Shift | 10-forward and 1 reverse speeds |
Clutch |
|
Type | Spring plate,diaphragm spring |
Diameter (mm) | φ430 |
Action | mechanical type,hydraulic and pneumatic operation |
Brakes |
|
Type | Drum |
Service brake | With dual-circuit |
Park brake | Power spring brake acting |
Auxiliary brake | WEVB |
Option | ABS |
Steering |
|
Type | Integral circulating ball |
Option | ZF8098 |
Chassis |
|
Type | Ladder structure with |
Dimensions (mm) | 300×80×(8+7) |
Suspension |
|
Front Suspension | Longitudinal leaf spring |
Rear Suspension | Inverted leaf spring stabilizator suspension |
Axles |
|
Brand | HANDE |
Front axle | 7500kg MAN |
Rear axle | 16000kg(each other) STR |
Ratio | 5.73(Option 4.8) |
Tyres |
|
Type (Standard) | 12.00R20 |
Option | 11.00R20/12R22.5 |
Fueltank |
|
Tank capacity (L) | 380 |
Material | Metal |
Electrics |
|
Type | 24V |
Starter | 5.58kw(24V) |
Generator | 1.54kw(28V 55A) |
Battery | 2×135Ah |
Cab |
|
Type | MAN F2000, Mid-lengthened flat roof |
Equipments | 2 rear window, mechanical clerestory, |
Option | electric windows, electricity heated rear-view mirror,CD,Tachograph; |
Other |
|
Platform dimentions(mm) | 5600×2300×1500 |
Platform specification (mm) | Floor 8, Side 4 |
