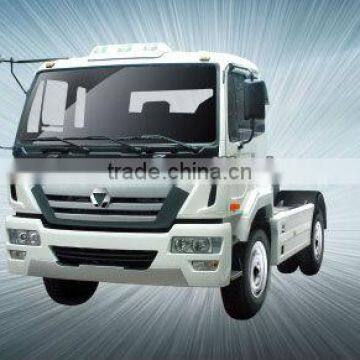

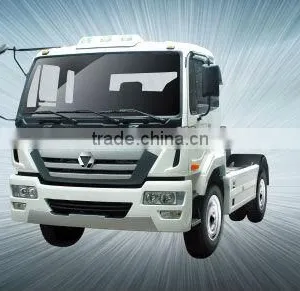

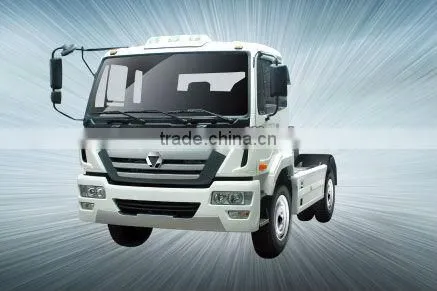

Heavy Traction Truck 4*2

Specifications

XCMG Automobile inherits the manufacturing tradition of top-quality construction machinery, redefind the standard of heavy truck

More details about this traction truck:

Drive type: 4*2

Max.travel speed(km/h): 95

Max.gradeability(%): 20

Max.braking gradient(%): 20

Min.turning diameter(m): 24

Fuel Tank Capacity(L): 240

Min.ground clearance [full load](mm): 245

Electric system(v): 24



Weight

Curb weight(kg): 5910

Total weight of semi-trailer(kg): 28895

Max.total weight(kg): 15995



Dimension

Total length(mm): 5565

Total width(mm): 2487

Total height [no-load](mm): 3250, 2720

Wheel base(mm): 3400

Frame(mm): 280



Main parts

Cab: high/flat top

Transimission: CA6DF3-24E3

Front axle: 153 single

Rear axle: 457 single ( small hub)

Tire: 10.00-20 10.00R20   11.00-20 11.00R20
