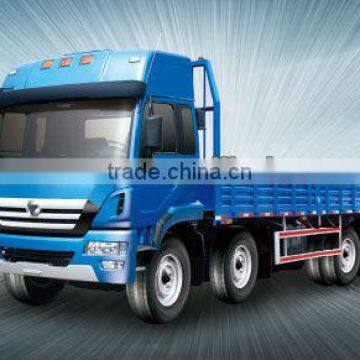

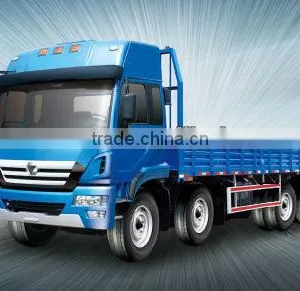

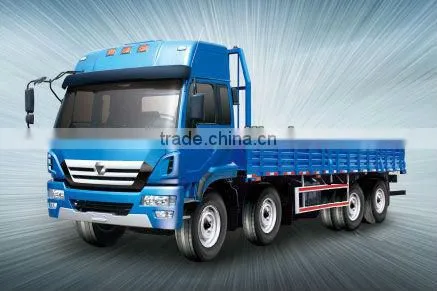

Cargo truck 8*4 NXG1310D3AZEL1

More details about this truck:

Drive type: 8*4

Max.travel speed(km/h): 90

Max.braking gradient(%): 25

Min.turning diameter(m): 20

Fuel Tank Capacity(L): 240

Min.ground clearance [full load](mm): 245

Electric system(v): 24

Weight

Curb weight(kg): 14780

Rated load(kg): 16020

Max.total weight(kg): 30995

Dimension

Total length(mm): 10510,10710

Total width(mm): 2495

Total height [no-load](mm): 3300

Wheel base(mm):

1900+4100+1300 1900+4100+1350

Main parts

Cab: high/ flat  top

Engine:

SC9DK240Q3B1 SC9DK270Q3B1

Transimission:

8JS125T 8JS118
RT-11509C 9JS119

Front axle: 153  double

Rear axle: 153 double

Tire:

10.00-20 11.00-20 10.00R20 11.00R20

Compartment dimension(mm):

7600,7800×2300,
2100×1115,1090,
1200,1180
