CANMAX Chip Section Tower Crane TC5012

Name: CANMAX Chip Section Tower Crane TC5012
Brand: CANMAX
SKU: 141326174
Availability: InStock

US$ 56,000 - 85,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Loading Capacity:

6tons

Max. Lifting Load:

6tons

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 6tons

Max. Lifting Load 6tons

Max. Lifting Height 160

Place of Origin Jiangsu, China

Brand Name CANMAX

Model Number TC5012

Certification ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

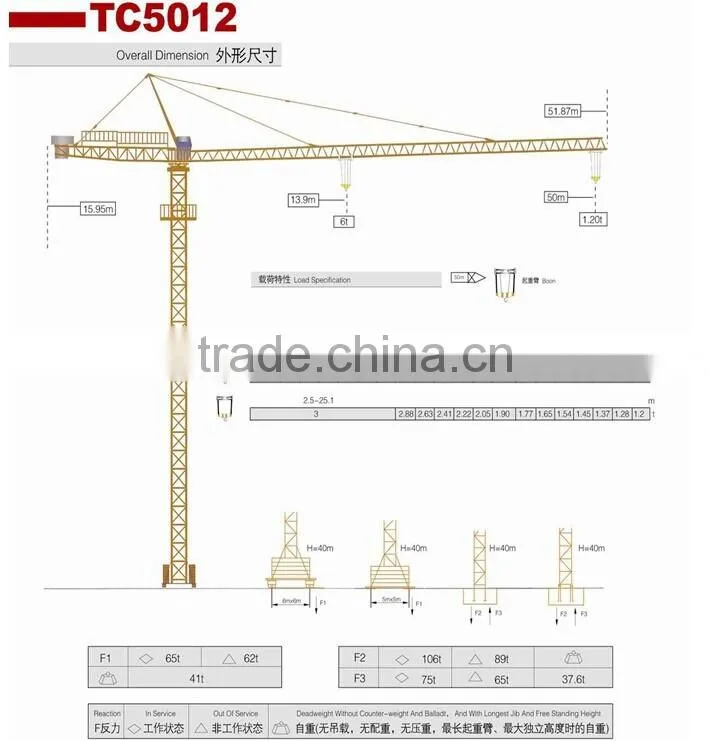

Technical Parameters on TC5012

Model	TC5012
Version	Fixed type
Free height	40 meters
Max height	160 meters
Max radius	56 meters
Jib end load	1.0t at 56 meters
Max load	6t at 13.7 meters
Hoisting mechanism	JT1.5
Drum capacity	300 meters
Lifting speed	3.05m/min~80m/min
Slewing mechanism	HZ-63
Slewing speed	0.6r/min
Trolley mechanism	BF-63
Trolley speed	28 or 42m/min
Power line voltage	380V/50Hz
Color	Yellow
Counter weight	Steel-structured frame(without concrete)
Mast section	1.8×1.8×3m
Mast section and Mast section connection	By bolts
Foundation bolt	Included (8sets)
Cabin (with air condition)	Included
Telescoping cage	Included
Pump and cylinder	Included
Main cable	Included
Basic mast	Included
