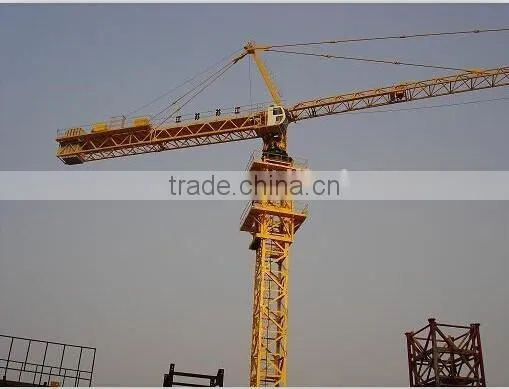

CANMAX Tower Crane TC7021

Name: CANMAX Tower Crane TC7021
Brand: CANMAX
SKU: 141326140
Availability: InStock

US$ 155,000 - 180,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Loading Capacity:

12tons

Max. Lifting Load:

12tons

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 12tons

Max. Lifting Load 12tons

Max. Lifting Height 200

Place of Origin Jiangsu, China

Brand Name CANMAX

Model Number TC7021

Certification ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Technical performance and parameter of TC7021 tower crane

NO	Name of parameter		Unit	Value
1	Rated lifting moment			3000
2	Max rated lifting weight		t	12
3	Max working range/rated lifting weight			70/3.0
4	Min working range		m	3.1
5	Allowable max range in max lifting weight		m	23.3
6	Hoisting velocity	Independent	m	50
		Attached	m	200
7	Hoisting mechanism (planet reducer)	Rate		2			4
		Hoisting velocity / max lifting weight	m /min	4.32	6		2.17		12
				20.2	6		10.1		12
				40.3	6		20.1		12
				60.1	3		30		6
				80	3		40		6
		Lowest steady descending speed	m /min	2.17
		Model of motor		YZTD200L 24/8/4				YZRSW250L 8/4
		power	kW	4/15/15				37/37
		Swing speed	r/min	195/680/1385				725/1425
8	Slewing mechanism	Slewing velocity	r/min	0~0.68
		Model of motor		YLEWF112M-95-4F1
		Power	kW	7.5
		Swing speed	r/min	1400
9	Range-changing mechanism (range-changing)	Range-changing velocity	m/min	0~70
		Model of motor		YPBE132M-4
		Power	kW	7.5
		Swing speed	m/min	1400
10	Rising mechanism	Rated rising speed	m/min	0.5
		Rated working pressure	MPa	40
		Model of motor		Y160L-4
		Power	kW	11
		Swing speed	m/min	1400
11	boom length/relative counterweight		m/t	70/21.3
12	Weight of the whole crane		t	Fixed without base frame		77
				Fixed with base frame		87.5
				Stepped		94
13	Hoisting height		m	Fixed without base frame		45.6
				Fixed with base frame		49.4
				Stepped		50
14	Total power(rising motor not included)		kW	74.5
15	Mast section dimension(length×wide×height)		m	2.0×2.0×3.0
16	Boom section dimension		m	1.6×1.1
