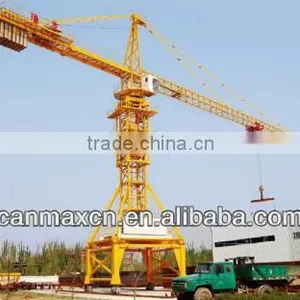

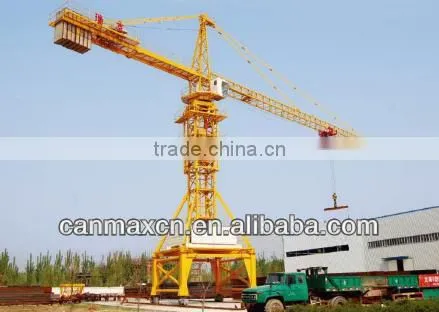

China Bestselling Tower Crane

Name: China Bestselling Tower Crane
Brand: CANMAX
SKU: 141326104
Availability: InStock

US$ 28,000 - 90,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

construction

Rated Loading Capacity:

3ton

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction

Rated Loading Capacity 3ton

Rated Lifting Moment 630kn.m

Max. Lifting Load 3ton

Max. Lifting Height 130m

Span 50m

Place of Origin Shanghai, China

Brand Name CANMAX

Model Number CM120L

Certification CE, ISO,CCC

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Tower Crane
CE, GOST, ISO
top 5 in China
more than 20 years manufacture
export to more than 30 countries

1. CANMAX tower crane:

1. Developed by us combined with advanced international technology in tower crane industry.

2. Self-telescoping, top slewing and trolleying on horizontal jib.

3. Complete safety devices makes an excellent performance.

4. Easy to assemble and disassemble with a pin system.

5. Advanced technology applied in the mechanisms and control system.

6. High reliability and easy maintenanc.

2. Main technical parameters for CANMAX tower crane:

No	Name of parameter	Unit	Value
1	Max. rated lifting capacity	t	3
2	working span	m	50
3	Independent Height	m	50
5	Max.Height	m	130
6	Wall-attached Frame		3
7	Main Material		135 × 135 ×12 Square steel tube
8	Hoisting Speed	m/min	0-80
9	Mini.Stabilizing Falling Speed	m/min	5
10	Slewing Speed	r/min	3
11	Traveling Speed	m/min	50/11
12	Climbing Speed	m/min	0.6
13	Motor Total Power	kw	64
14	Independent Structure Weight	kg	451000
15	Counter Weight	t	12
