Tower Crane--topkit TC5010--CANMAX

Name: Tower Crane--topkit TC5010--CANMAX
Brand: CANMAX
SKU: 141326088
Availability: InStock

US$ 28,000 - 62,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

construction

Rated Loading Capacity:

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction

Rated Loading Capacity 6t

Rated Lifting Moment 400KN.m

Max. Lifting Load 6t

Max. Lifting Height 140m

Span 50m

Place of Origin Shanghai, China

Brand Name CANMAX

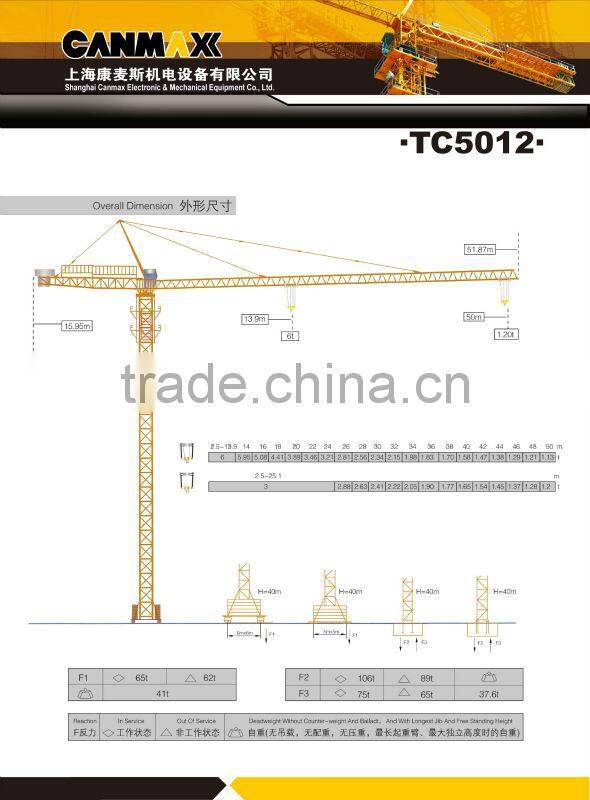

Model Number TC5012

Certification GOST,CE, ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Tower Crane
1. CE approved, ISO and GOST certification
2. Complete safety devices
3. Good quality&competitive price

CANMAX Tower Crane

1. main technical parameters for CANMAX TC4010 tower crane:

Certificate		CE,ISO9001,Gost,
lifting moment		600KN.m
Biggest lifting weight		4t
Biggest working range/lifting weight		40m/1.0t
Smallest working range		2.5m
Hoisting height	Fixed form	32m
	Attached form	140m
Hoisting system (planet differential type)	Hoisting speed/ Biggest lifting weight	Two falls		Four falls
		m /min	t	m /min	t
		16.5	3	39.3	1.5
		8.25	6	19.7	3
slewing system	Slewing speed	0.6r/min
Trolley system	Trolley speed	28/42m/min
Jacking system	Rating jacking speed	0.5m/min
Mast section’s size (dimension)		1.8×1.8×3.0m
