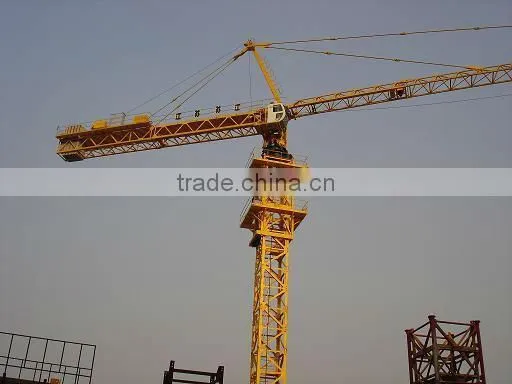

50m TC7030 Tower Crane

US$ 60,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Construction

Rated Loading Capacity:

12ton

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Construction

Rated Loading Capacity 12ton

Rated Lifting Moment 800kn

Max. Lifting Load 12ton

Max. Lifting Height 220m

Place of Origin Jiangsu, China

Brand Name ZCM

Model Number TC7030

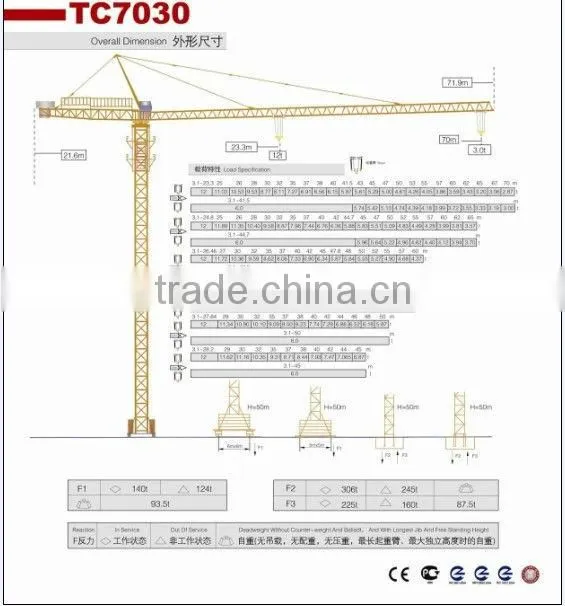

Specifications

1.Max. height: 220m;
2.Free height: 50m;
3. Max. load: 12t at 23.3meters.

NO	Name of parameter		Unit	Value
1	Rated lifting moment			3000
2	Max rated lifting weighgt		t	12
3	Max working range/rated lifting weight			70/3.0
4	Min working range		m	3.1
5	Allowable max range in max lifting weight		m	23.3
6	Hoisting velocity	Independent	m	50
		Attached	m	200
7	Hoisting mechanism (planet reducer)	Rate		2			4
		Hoisting velocity / Relevent max lifting weight	m /min	4.32	6		2.17		12
				20.2	6		10.1		12
				40.3	6		20.1		12
				60.1	3		30		6
				80	3		40		6
		Lowest steady descenting speed	m /min	2.17
		Model of motor		YZTD200L 24/8/4				YZRSW250L 8/4
		power	kW	4/15/15				37/37
		Swing speed	r/min	195/680/1385				725/1425
8	Slewing mechanism	Slewing velocity	r/min	0~0.68
		Model of motor		YLEWF112M-95-4F1
		Power	kW	7.5
		Swing speed	r/min	1400
9	Range-changing mechanism (range-changing)	Range-changing velocity	m/min	0~70
		Model of motor		YPBE132M-4
		Power	kW	7.5
		Swing speed	m/min	1400
10	Rising mechanism	Rated rising speed	m/min	0.5
		Rated working pressure	MPa	40
		Model of motor		Y160L-4
		Power	kW	11
		Swing speed	m/min	1400
11	boom length/relevent counterweight		m/t	70/21.3
12	Weight of the whole crane		t	Fixed without base frame		77
				Fixed with base frame		87.5
				Stepped		94
13	Hoisting height		m	Fixed without base frame		45.6
				Fixed with base frame		49.4
				Stepped		50
14	Total power(rising motor not inclouded)		kW	74.5
15	Mast secton dimension(length×wide×height)		m	2.0×2.0×3.0
16	Boom section dimension		m	1.6×1.1
