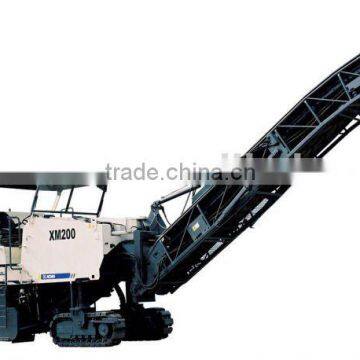

road milling machine

Specifications

1.Multifunctional milling machine used for various roads
2.Imported engine and crawler drive
3.Perfect product and best price

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.



Performance and characteristic:

High strength milling rotor drive by blet ,reliable and high efficiency.

Four tracks driving system ,power traction ,fourkinds of steering modes,flexible to travel.

Full automatic power adjusting system ,realizing the automatic power distribution between the milling power and driving power.

Advanced automatic control system of milling depth ,easy operation and reliable .

Original imported electrical control engine ,Euro Ⅲ emission standard ,reliable operation ,energy conservation and environmental protection.

Two front-wheels transporting system ,conveying a mass of milling materials smoothly and uninterruptedly.







Model			XM200
	Max. milling with	mm	2000
	Max. milling depth	mm	320
Milling wheel	Number of tools		168
	Drum diameter with tools	mm	980
Engine	Model		QSX15
	Rated power	kW	447
	Rated speed	rpm	2100
Specifications	Operating speed	m/min	0~30
	Travel speed	km/h	0~5
	Ground clearance	%	80
	Ground clearance	mm	≤300
	Operating weight	kg	32500
Volume	Fuel tank	L	1300
	Hydraulic oil tank	L	400
	Water tank	L	3400
Conveyor	Width	mm	800
Measurement	Overall machinery LxWxH	mm	7130×2500×3000
	Conveyor LxWxH	mm	8000×1150×900
Travel mode			Track
