1.Full automatic power adjusting system2.High strength milling rotor drive by blet
3.Original imported engine

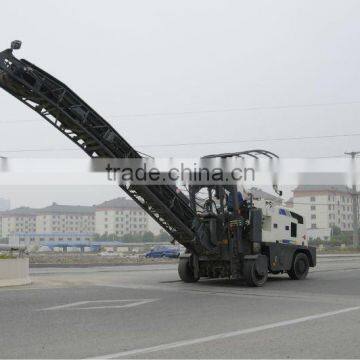

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic:
High strength milling rotor drive by blet ,reliable and high efficiency.
Four tracks driving system ,power traction ,fourkinds of steering modes,flexible to travel.
Full automatic power adjusting system ,realizing the automatic power distribution between the milling power and driving power.
Advanced automatic control system of milling depth ,easy operation and reliable .
Original imported electrical control engine ,Euro Ⅲ emission standard ,reliable operation ,energy conservation and environmental protection.
Two front-wheels transporting system ,conveying a mass of milling materials smoothly and uninterruptedly.
Moder | XM120F | ||
Max. milling with | mm | 1200 | |
Max. milling depth | mm | 320 | |
Milling wheel | Number of tools | 144 | |
Drum diameter with tools | mm | 980 | |
Engine | Model | QSC8.3 | |
Rated power | kW | 209 | |
Rated speed | rpm | 2100 | |
Specifications | Operating speed | m/min | 0~32 |
Travel speed | km/h | 0~5.2 | |
Ground clearance | % | 80 | |
Ground clearance | mm | ≤300 | |
Operating weight | kg | 21000 | |
Volume | Fuel tank | L | 660 |
Hydraulic oil tank | L | 120 | |
Water tank | L | 1250 | |
Conveyor | Width | mm | 600 |
Measurement | Overall machinery LxWxH | mm | 5900*2140*3000 |
Conveyor LxWxH | mm | 8200*1200*1500 | |
Travel mode | Tire | ||
