Help CenterZOOMLION ROAD PAVER LTU120A
Related Products
Specifications
1. ZOOMLION ROAD PAVER LTU120A2. Max.Paving Width :12 m
3. High quality and competitive price

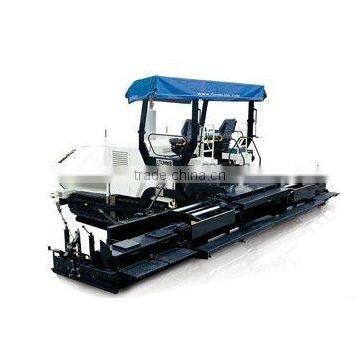

ZOOMLION ROAD PAVER LTU120A
1 . All major mechanism are independent hydraulic driven, auto control, ensures stability during the paving process, minimize the factor which affect the accuracy of the paving, keeps high accuracy of the paving.
2 . Deutz 6 cylinder center cooling engine original imported from Germany, powerful, suitable for any paving situation, meet requirement from tableland.
Basic Paving Width |
2.5 m |
Max.Paving Width |
12 m |
Max.Paving Thickness |
300mm |
Paving Speed |
0~16 m/min |
Traveling Speed |
0~4 km/h |
Theoretical Productivity |
800 t/h |
Hopper Capacity |
14 t |
Temper Stroke |
Front Temper 0/3/6/9/12mm |
Tamper Frequency |
0~28 Hz |
Vibrator Frequency |
0~58 Hz |
Method of Screed Extension |
Mechanically |
Crown Adjustment |
-1~+3% |
Engine Type |
BF6M1013C |
Power/Revolution |
161 kw/2300rpm |
Heating |
Burning with dimethylmethane |
Total Weight |
20~28t |
Dimension |
6244mm×2677mm×3764mm |
