Home > Products > Pipe driving machinery > Trenchless Drilling Equipment XZ180
Trenchless Drilling Equipment XZ180
USD $76,500 - $81,500
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | XCMG | Model Number: | XZ180 |
| Power(W): | 97 | Dimension(L*W*H): | 6490X2270X2350 | Weight: | 18Tons |
| Certification: | ISO | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
| Condition: | New |
Product Description
Specifications
Trenchless Drilling Equipment XZ1801.Cummins Engine
2. Self loading and unloading with truck mounted crane.

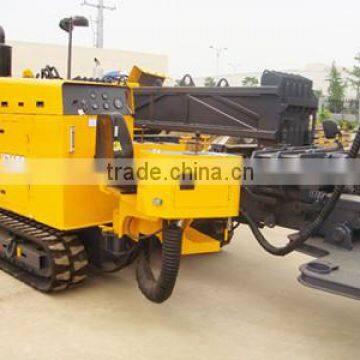

Mobile Drilling Equipment XZ180
XZ180 horizontal directional drilling machine is an integrated directional drilling unit. The whole machine mainly
consists of main frame, power unit, drilling cramp, engine system, drill rod automatic access unit, vice, anchoring
unit, drilling tool, hydraulic system, electric system and mortar system, etc.
Engine model |
| Cummins 6BT5.9-C130 |
Rated power of the engine | kW /rpm | 97/2200 |
Maximum extracting/drilling force | kN | 180/180 |
Maximum torque of power unit | N.m | 6000 |
Revolving speed of power unit | r/min | 0~140 |
Maximum diameter of counter boring | mm | φ650 |
Length of drill rod(single) | m | 3 |
Diameter of drill rod | mm | φ60 |
Drilling angle | ° | 10~22 |
Maximum flow of mortar | L/min | 250 |
Maximum pressure of mortar | bar | 80 |
Whole machine quality | kg | 10500 |
Overall dimensions | mm | 6490X2270X2350 |
