Specifications
ZR150 rotary drilling rig1. Advanced technical performance
2. Reliable quality assurance
3. Reasonable structural design

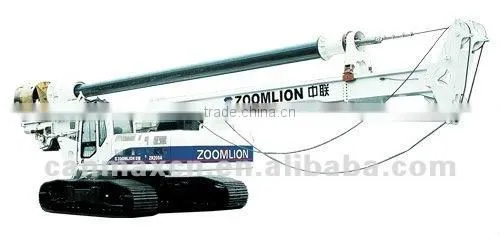

ZOOMLION ZR150A Rotary Drilling Rig
1. Wide job scope:Depth of pore forming is 50m and drilling diameter is 1500mm.
2,High job efficiency
3. Strong Power
4. Specific Scalable Caterpillar Base Plate :hiding hydraulic Scalable Caterpillar structure and reasonable center of gravity design, the rear-mounted Master Winch.
5. Advanced hydraulic pressure system:Adopting technology of Kawasaki and Harway as main parts. Independent cooling system make hydraulic pressure system smoothly working even in 40°C ambient temperature.
6,Advanced electrical control system:Adopting CAN-bus- based engineering mechanical specific controller coordinated control engine, oil pump, main valve and controlling handle. It assures excellent operating performance as well as environmental protection energy saving in working.
7,Monitoring parameter such as working status of engine and mast, drill depth of drilling tools;pre-warning potential failure so as to assure best working status.
8,Comfortable operating system:man-machine engineering based operating platform with reasonable parts arrangement can farthest prevent from mis-operating. High Definition full color LCD screen provide advanced man-machine conversation interface .
9. Convenient transportation:auto up and down; two-section mast assure short time of folding and unfolding of the machine.
10,Convenient repair and maintenance: Taking repair and maintenance into consideration, hydraulic pipes are arranged in order and regular.
11,Hoisting structure :Single-layer hoist can farthest enlarge the service life of wire rope.
drilling torquek Nm |
150 |
Master Winch lifting speed n/min |
62 |
Max Drilling Diameter mm |
1500 |
Lifting speed of assist Winch(first level) kN |
70 |
Max Drilling Depth m |
50 |
Stress oil cylinder stroke mm |
4500 |
Engine Model |
WP10-270 |
walking speed km/h |
1.6 |
rated power kW |
199 |
Caterpillar centre distance mm |
2300~3300 |
Drill Velocity r/min |
11~22 |
tractive force kN |
351 |
Lifting power of Master Winch(first level) kN |
160 |
Gross weight t |
49 |
