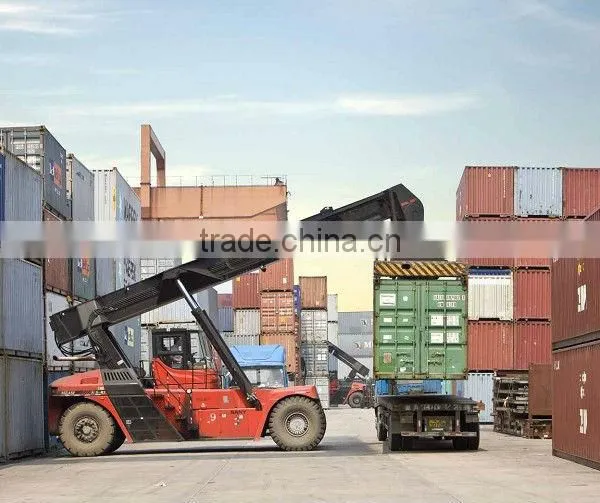

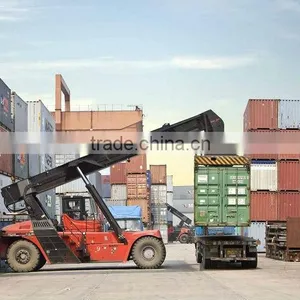

Brand New 45T Container Reach Stacker

FOB Price

USD $385,000 - $386,000 / Unit

1 Unit(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	CANMAX
Model Number:	SRSC45C30	Type:	Other	Power Souce:	Diesel Engine
Rated Loading Capacity:	45T	Max. Lifting Height:	15100 mm	Overall Dimensions:	1125941884770mm
After-sales Service Provided:	Engineers available to service machinery overseas

1. Original VOLVO engine, 256kw/2100rpm
2. Germany Kessler D102 with wet disc brakes
3. DANA CLARK Transmission

45T REACH STACKER SRSC45C30

Lifting capacity:	45000 kg
Max. Lifting height:	15100 mm
Boom angle:	0-60°
Min. ground clearance:	400 mm
Min. turning radius:	8000 mm
Tread (front wheel/rear wheel):	3033/2750 mm
Wheelbase:	6000 mm
Dimension (length×width×height):	11259×4188×4770mm
Dead weight:	69 t
Engine:	VOLVO TWD1340VE (Sweden)-6 cylinders 12 litres
	Power rating: 256 kW at 2100 rpm
	Torque rating: 1770 Nm at 1260 rpm
Transmission:	DANA CLARK 15.5HR36000 4 gears fwd/ 4 rev
Transmission:	Fully automatic transmission
Drive axle:	Kessler D102 with wet disc brakes

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.: Contact nameRyan Lee; Phone86-21-35359336; Address401-402, No. 3, Lane 533, Anbo Road
