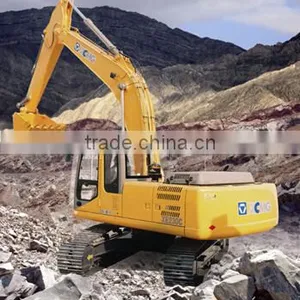

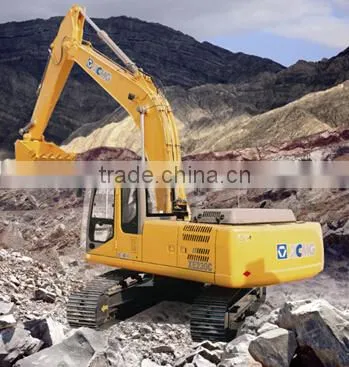

Factory price 33.5ton excavator XE335C
Model | Unit | XE335C | |
Operating weight | kg | 33800 | |
Standard bucket capacity | m³ | 1.4~1.6 | |
Engine | Engine Model | / | ISUZU AA-6HK1XQP |
Direct injection | / | √ | |
Four strokes | / | √ | |
Water cooling | / | √ | |
Turbo charged | / | √ | |
Air to air intercooler | / | √ | |
No. of cylinders | / | 6 | |
Rated power/speed | kw/rpm | 184/2000 | |
Max. torque/speed | N.m | 872.8/2000 | |
Displacement | L | 7.79 | |
Main Performance | Travel speed | km/h | 5.5/3.3 |
Swing speed | r/min | 9.7 | |
Max. gradeability | / | ≥35 | |
Ground pressure | kPa | 66 | |
Max.Bucket digging force | kN | 225 | |
Max.arm crowd force | kN | 183 | |
Max.traction force | kN | 261 | |
Hydraulic System | |||
| Rate flow of main pump | L/min | 2×280 |
Max pressure of prime relief valve | MPa | 31.5/34.3 | |
Max pressure of travel system | MPa | 34.3 | |
Max pressure of swing system | MPa | 27.5 | |
Max pressure of pilot system | MPa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 630 |
Hydraulic tank capacity | L | 320 | |
Engine lubrication | L | 28 | |
Dimensions | Overall length | mm | 11246 |
Overall width | mm | 3190 | |
Overall height | mm | 3330 | |
Overall width of upper structure | mm | 2960 | |
Track length | mm | 4725 | |
Overall width of undercarriage | mm | 3190 | |
Crawler width | mm | 600 | |
Track length on ground | mm | 3183 | |
Crawer gauge | mm | 2590 | |
Clearance under counter weight | mm | 1170 | |
Ground clearance | mm | 495 | |
Min.tail swing radius | mm | 3450 | |
Work Scope | Max. digging height | mm | 10404 |
Max. dumping height | mm | 7256 | |
Max. digging depth | mm | 7158 | |
8inch horizonal digging depth | mm | 6935 | |
Max. vertical wall digging depth | mm | 6526 | |
Max. digging reach | mm | 10887 | |
Min. swing radius | mm |
| |
