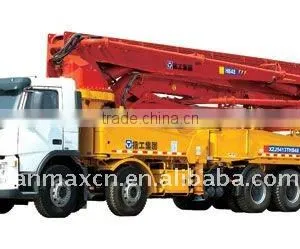

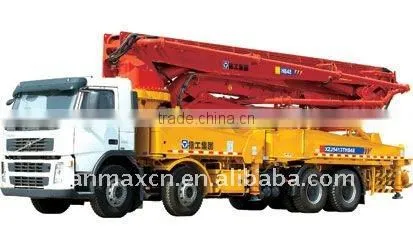

48M TRUCK MOUNTED CONCRETE PUMP

48M TRUCK MOUNTED CONCRETE PUMP thumbnail-1
48M TRUCK MOUNTED CONCRETE PUMP photo-1
US$ 464,000 - 471,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
XCMG
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name XCMG
Model Number HB48-B-C-D

Specifications

1. 48m reaching height.
2. Engine:VOLVO and European III standard.
3. Chassis:VOLVO

XCMG TRUCK MOUNTED CONCRETE PUMP HB48-B-C-D




Advanced technology performance, reliable quality and high safety are available in the unit. max.138m3 per hour theoretical output, max.13MPa delivery pressure, 48m reach height, 42.75m operating radius and 34m reach depth can be realized in the unit. 5 section “RZ”  folding placing boom is suitable for applications in confined sites. Sections of the placing boom can be operated not only individually but also simultaneously, so nearly eliminate all construction blind areas. Main parts are world brand products such as 4 chassis made by VOLVO Company Sweden, placing boom, turntable, sub frame and outrigger assy. imported from Italy, electro-hydraulic proportional valve from HAWE Company Germany, hydraulic pump unit and control valves from REXROTH Company Germany, and transfer gearbox from STIEBEL Company Germany. Ergonomic design is emphasized. Safety devices are well equipped. And it is not only good looking, but also convenient to operate. Complies with national compulsory standard and gains “3C” certification.



Item

Parameter

Outline dimensions (Length´ Width ´Height)mm

12430×2500×3995

Fuel type

Diesel

Engine emission standard

Euro 3

Displacement/Powerml/kW

12100/279

Steering type

Steering wheel

No. of axle

4

Wheel basemm

1793+4407+1370

No. of spring leaf (front/rear)

2+3/9

Tire

12.00R20

Track (front/rear) mm

2029/1872

No. of tire (exclude spare tire)

12

Total vehiclecurb weight

Total weightkg

40870

Front axle loadkg

15870

Mid, rear axle loadkg

25000

Total weight

Total weightkg

41000

Front axle loadkg

16000

Mid, rear axle loadkg

25000

Crew in cab

2

Approach angle/Departure angle

21°/10°

Front overhang /Rear overhangmm

1360/3500

Max. speedkm/h

94

Min. ground clearancemm

270

Max. grade-ability

38%

Fuel consumption of 100kmL/100km

40

Chassis

Model

FM12

Grade

2

Manufacturer

VOLVO

Engine

Model

D12

Manufacturer

VOLVO
