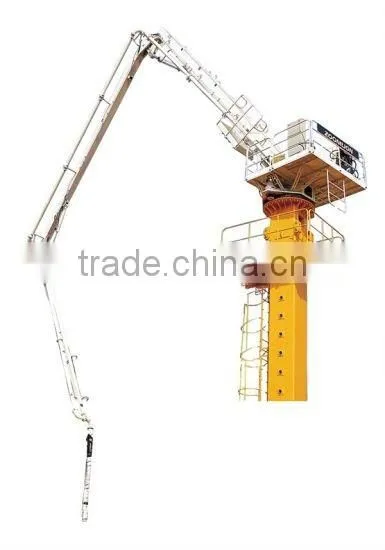

38m ZOOMLION HG38T Concrete Placing Boom

Name: 38m ZOOMLION HG38T Concrete Placing Boom
Brand: ZOOMLION
SKU: 141324386
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Hunan, China

Brand Name:

ZOOMLION

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hunan, China

Brand Name ZOOMLION

Model Number HG38T

Specifications

38m ZOOMLION HG38T concrete placing boom
1.Max.radius of placing boom 38m
2.Total weight 37500kg
3.Motor Power 37kw

38m ZOOMLION HG38T concrete placing boom

Model			HG45T	HG41T	HG38T
Performance	Max.radius of placing boom(m)		45	41.5	38
	Freestanding height (to the joint between the end of the boom and swivel table)(m)		50	50	44
	Boom articulation(·)		±360
	Slewing brake		always open
	Working temperature(°C)		-20°C~48°C
	Total weight(kg)		50000without counter-weight	49000without counter-weight	37500without counter-weight
	Power		380V/50HZ
Motor	Model		Y2-225S-4-B35		Y2-160M-4-B35
	Power(kw)		37		11
	Safety grade		IP54
	Insulation grade		F
Hydraulic system	Pressure(Mpa)		35		28
	Flux(l/min)		47		16.8
Hydraulic oil	5°C-48°CCircumstance temperature 5°C-48°C		ESSO NUTO H46
	-20°C-5°CCircumstance temperature -20°C-5°C		ESSO NUTO H32
Control mode			Radio remote control/short—haul Control
Pipeline cleaning			Wet cleaning/Dry cleaning
Structure of tower body			Girder
Section of tower body (m×m)			2×2		1.8×1.8
boom	Shape		Five hydraulic foldable arms		Three hydraulic foldable arms
	Inner diameter of pipeline		DN125
	End hose(″×mm)		5″×3000/4000
	1st section	Length(m)	10250	9350	19.5
		Articulation	0°~90°	0°~90°	0°~+85°
	2nd section	Length(m)	8650	8100	10
		Articulation	0°~180°	0°~180°	0°~180°
	3rd section	Length(m)	8450	7900	8.5
		Articulation	0°~180°	0°~180°	0°~180°
	4th section	Length(m)	8900	7910
		Articulation	0°~250°	0°~250°
	5tht section	Length(m)	8700	8250
		Articulation	0°~250°	0°~250°
