Red 30 Hp Wheel Tractor for Sale

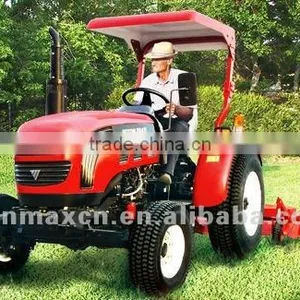

Red 30 Hp Wheel Tractor for Sale thumbnail-1

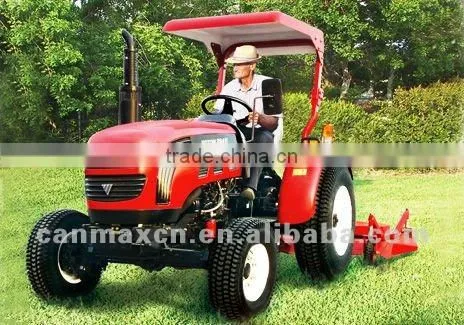

Red 30 Hp Wheel Tractor for Sale photo-1
US$ 3,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Certificate CE
Brand Name LOVOL
Model Number TE300E
Place of Origin Shandong, China



LOVOL  TE300E Wheel Tractor



1. The use of a simple floor structure and an external divider is easy for maintenance;
2. The safety frame is optional;
3. The single-acting or double-acting clutch is optional;
4. The various gear configurations, such as 8+2, 8+8, and 16+4 are optional, and the velocity distribution is reasonable to meet different operating needs;
5. The synchronized shuttle shift is optional, and the operation is easy, flexible and reliable;
6. The operations of hydraulic steering, the mandrel cylinder front drive axle are easy and flexible.





Drive type 4*2 Overall dimension(L * W * H) 3340*1500*2051
Wheelbase (mm) 1776 Track(front/rear) 1100-1300/960-1460
Track(front/rear) regulating method Step/stepless Min.Ground clearance(mm) 338
Min.operating weight (kg) 1480 Counterweight (max)(front/rear) 54/180
Gears(forward/reverse/creeper) 8+2/8+8 Theoretical speed of each gear(forward/reverse) 1.72-26.02/2.25-10.39;1.72-26.02/1.61-24.24;
Brand Laidong, Jiangdong, lijia Engine type In-line, four-stroke
Intake mode Natural intake Number of cylinders 3
Bore 75 Stroke 105
Displacement(L) 1.81 Engine rated power kW/rpm 22.1
Rated speed 2350 Air cleaner type Dry or wet type
Type of cooling system Water-cooled Max. Torque/ revolving speed (rpm) ≥96/1650
Specific fuel consumption at rated conditions (g/kW/h) ≤244 Fuel tank capacity (L) 29
Type of steering system Hydraulic/mechanical Type of steering gear Cam and roller steering gear/cycloid orbitrol steering gear
Type of braking system Shoe type Clutch type Single-action/double action
Gearbox type Two-axis mechanical gearbox Gearbox shift mode Shift sleeve +sliding gear
Type of central transmission Spiral bevel gear type Final transmission mode (front/rear) Built-in type, single-stage spur gear
Frame type Frameless Type of hydraulic suspension system Open-center, separated type
Type of linkage Three point rear linkage Linkage classes Class 0 or class I
Lift capacity(610mm point))kN 6.2 Regulating mode Positioning control and floating control
Type of PTO shaft Non-independent type The number of PTO shaft splines 6 splines/8splines
Outer diameter of PTO shaft spline φ35/φ38 PTO shaft speed 540/760 or 540/1000
Hydraulic output flow (L/min) 26
