45hp wheel tractor LYH4501.Good quality, low price.
2.Professional service.
3.Drive type:4*2.

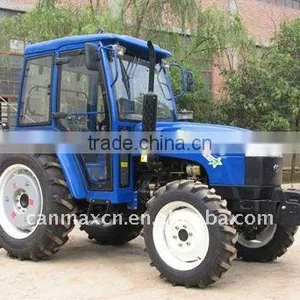

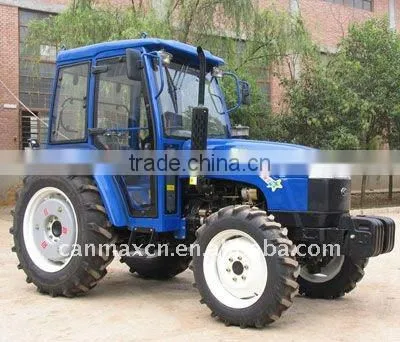

45hp wheel tractor LYH450
Tractor model |
LYH450 |
|
Pattern |
4×2(Two turn actuation) |
|
Outlook sizemm |
Long(in front of belt counterweight) |
3579 |
|
Width |
1750 |
|
High (to air vent) |
2130 |
Spread of axies (mm) |
1946 |
|
Front wheel tread (mm) |
1200-1500(Commonly used 1300) |
|
Rear wheel tread (mm) |
1200-1500(Commonly used 1300) |
|
Smallest gully (mm) |
400 |
|
Agronomy gully (mm) |
450 |
|
Changes radius (mm) |
Unilateral brake 3.1 |
>3.4 |
|
Unilateral brake 3.5 |
>4.1 |
Complete machine quality (kg) |
Structure quality 1665 |
1890 |
|
Smallest use quality 1840 |
2080 |
|
First disposes 108 |
>144 |
|
Latter disposes 360 |
>360 |
Fixed force of traction (KN) |
9 |
|
Engine model |
> >498BT |
|
Demarcation power (KW) |
36.8 |
|
Coupling |
10 inch dry list function or double-acting |
|
Gear box |
4× (2 1) keeps off the composition type meshing wrap to shift gears |
|
Speed range |
2.4-31.9 |
|
Central rotation |
Screw round bevel gear pair |
|
Differential device |
Two planetary gears, closed type |
|
Differential lock |
Plug type |
|
Final transmission |
Planet gear type |
|
First driving axle |
The entire seal bevel gear type (four-wheel drive type uses) |
|
Transfer case |
The straight tooth cylindrical gears (four-wheel drive type uses) |
|
Front wheel tire specification |
6.0-16 8.3-20 |
|
Trailing wheel tire specification |
12.4-28 |
|
Diverter pattern |
Mechanical or the entire hydraulic pressure changes |
|
Brake labor |
Biplate oil bath plate brake (mechanical type) |
|
Hoist pattern |
The half minute sets at the type |
|
Ploughs the deep control mode |
Strength, position control and fluctuation control |
|
Suspension unit pattern |
Postpositioned three point suspension |
|
Dynamic output speed of spindle (r/min) |
540/760 |
|
