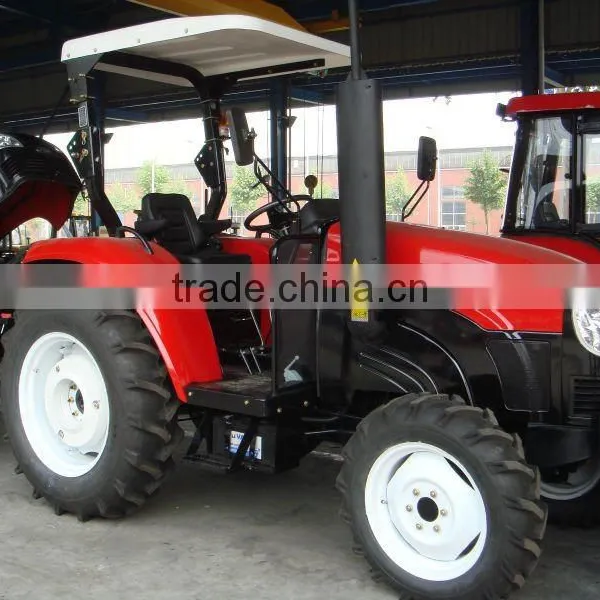

30-35hp Wheel Tractor

30-35hp Wheel Tractor thumbnail-1
30-35hp Wheel Tractor photo-1
US$ 6,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Certificate CE
Brand Name YTO
Model Number 30-35hp
Place of Origin Henan, China

Specifications

30-35hp wheel tractor
1.Good quality,low price.
2.World famous brand, professional service
3.Drive type:4*4/ 4*2

30-35hp wheel tractor



Features


The utilization of disc brake ensures reliable braking performance.
OECD anti-turnover bar is adopted for great safety.
Tractor awning is available upon request.
9-inch dry single or double action clutch is used.
This wheeled tractor is applicable to both paddy fields and dry farmlands.



30-35HP Wheeled Tractor Specifications



Model YTO-ME300 YTO-ME350 YTO-ME304 YTO-ME354
Diesel engine
Model ZN390T SL3100ABT-2 ZN390T SL3100ABT-2
Type Three cylinder, vertical, water cooled, four stroke
Displacement (L) 1.81 2.47 1.81 2.47
Rated power/speed(Kw)/(r/min) 22.1/2350 25.7/2200 22.1/2350 25.7/2200
Max. torque (N.m)/speed (r/min) 105.5/1760 122.7/1650 105.5/1760 122.7/1650
Bore x stroke (mm) 90*95 100*105 90*95 100*105
Transmission
Gear shift, forward/backward 8/4 8/4 8/4 8/4
Speed range (Km/h), forward/backward 2.16~28.31/3.20~9.78 2.35~30.87/3.49~10.66 2.16~28.31/3.20~9.78 2.35~30.87/3.49~10.66
PTO power (Kw) 18.78 21.85 18.78 21.85
PTO rotation speed (r/min) 540/720 or 540/1000
Clutch 9-inch, dry, double action
Implement
Three-point linkage category Rear three-point linkage I
Tilling depth control mode Draft adjustment, position adjustment
Lifting force(KN) 4.96 5.8 4.96 5.8
Options
Transmission with creeper gear 4x(2+1)x2
Hydraulic output 2 group
Adjustment mode, rear wheel Stepless adjustment
Clutch 9-inch, dry, single action
Dimensions, mass, drive
Drive type 4x2 4x2 4x4 4x4
Overall dimensions (LxWxH)(mm) 3520x1388x2700 3540x1395x2730 3595x1390x2740 3595x1390x2740
Wheelbase(mm) 1700 1700 1760 1760
Min. ground clearance(mm) 338 395 290 290
Min. operating mass(with safety stand)(Kg) 1445 1535 1655 1745
Tyre spec., front /rear 5.50-16/11.2-24 5.50-16/11.2-28 6.50-16/11.2-24 7.50-16/11.2-28
Wheel tread, front/rear 1100,1200,1300,1400/1100,1200,1300,1400 1200/1100,1200,1300,1400
Steering Mechanical Full hydraulic
Brake Disc, mechanical



As a wheeled tractor manufacturer with decades of experience, we are able to provide a wide range of quality tractors for you to choose from. In addition, reliable combine harvester, tractor implement and road roller etc. are also available. We invite you to contact us today for more information!
