60-70 hp Wheel Tractor

60-70 hp Wheel Tractor thumbnail-1
60-70 hp Wheel Tractor photo-1
US$ 12,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Certificate CE
Brand Name YTO
Model Number 60-70hp
Place of Origin Henan, China

Specifications

60-70 hp wheel tractor
1.Good quality,low price.
2.World famous brand,professional service
3.Drive type:4*4

60-70 hp wheel tractor



1.Our wheeled tractor has multiple gears and a wide speed range.
2.Hydraulic steering, small turning radius, good maneuverability.
3.The wet disc brake is equipped for reliable braking performance.
4.External double acting cylinder helps achieve large lifting force.
5.Double action clutch can manipulate the power output without shutdown.
6.Adjustable ground clearance makes our wheeled tractor suitable for operations in paddy fields.
7.Streamlined enclosed cab is optional.



60-70HP Wheeled Tractor Specifications



ModelYTO-MG600YTO-MG650YTO-MG700YTO-MG604YTO-MG654YTO-MG704
Tractor
Type4x24x4
Overall dimensions (LxWxH)(mm)3997 X
1784 X 1727		3997 X
1784 X 1752		3997X
1784 X 1752		3997 X
1784 X 1727		3997X
1784 X 1752		3997X
1784 X 1752
Wheelbase(mm)2155.6
Min. ground clearance(mm)430455455420445445
Min. operating mass(with safety stand)(Kg)250025002500280028002800
Tyre spec., front /rear6.50-16/14.9-287.50-16/14.9-308.3-24/14.9-289.5-16/14.9-30
Wheel tread, front/rear1400-1700/1310-18061274-1770/1310-1806
SteeringFull hydraulic
BrakeOil immersed, disk type, mechanically actuated
Diesel engine
ModelYT4A2-22YT4B2-22YT4B2-22YT4A2-22YT4B2-22YT4B2-22
TypeFour cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L)4.164.44.164.4
Rated power/speed(Kw)/(r/min)45/220048/220051.5/220045/220048/220051.5/2200
Max. torque (N.m)/speed (r/min)234/1600-1800250/1600-1800268/1600-1800234/1600-1800250/1600-1800268/1600-1800
Bore x stroke (mm)105X120/
105X125		108X120//105X125105X120/105X125108X120//105X125
Transmission
Gear shift, forward/backward10/2
Speed range (Km/h), forward/backward2.29~30.98/
3.05~12.20		2.37~32.12/3.16~12.652.29~30.98/3.05~12.202.37~32.12/3.16~12.65
PTO power (Kw)40.5434640.54346
PTO rotation speed (r/min)540/720/1000 optional
Clutch11-inch, dry, double action
Implement

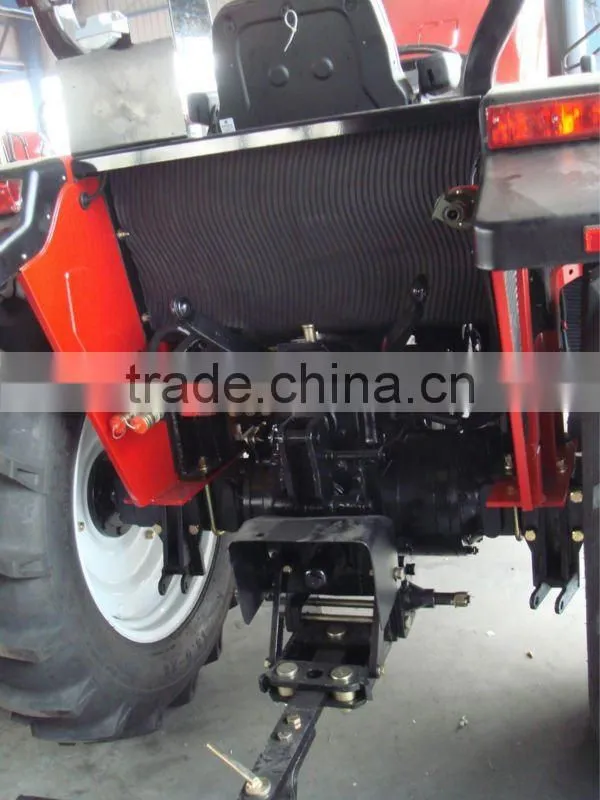

Three-point linkage categoryThree-point linkage category II
Tilling depth control modeHeight floating control
Lifting force(KN)15
Options
OECD anti-turnover barOptional
CabOptional
Paddy field tireOptional



 60-70 hp wheel tractor
