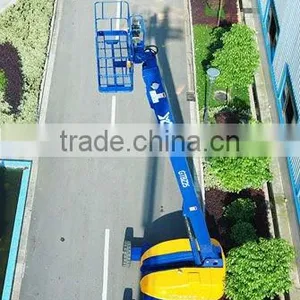

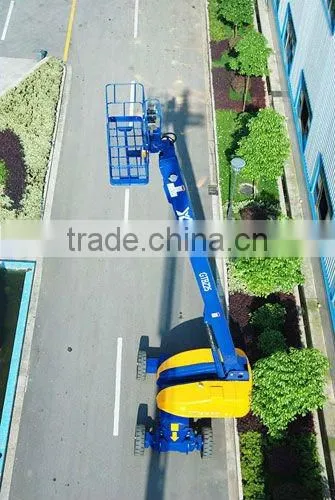

27m Telescopic Boom Self-propelled Aerial Work Platform
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CANMAX
Model Number:
GTBZ27Z
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25m Telescopic Boom Self-propelled Aerial Work PlatformNegotiableMOQ: 1 Set -
20m Telescopic Boom Self-propelled Aerial Work PlatformNegotiableMOQ: 1 Set
-
14m Articulating Boom Self-propelled Aerial Work PlatformNegotiableMOQ: 1 Set
-
16m Articulating Boom Self-propelled Aerial Work PlatformNegotiableMOQ: 1 Set
-
22m Articulating Boom Self-propelled Aerial Work PlatformNegotiableMOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
CANMAX
Model Number
GTBZ27Z
Specifications
27m Telescopic boom Self-propelled aerial work platform1.Platform height 26.7m
2.Lift capacity 480kg
3.WEIGHT 16140kg
27m Telescopic boom Self-propelled aerial work platform
| MODEL | GTBZ27Z | |
| MEASUREMENTS | Metric | US |
| Working height maximum * | 28.4m | 93ft |
| Platform height maximum | 26.7m | 88ft |
| Horizontal reach maximum ** | 23.4m | 77ft |
| Below ground reach | 3.73m | 12ft |
| Platform length-8ft model | 0.91m | 3ft |
| Platform length-6ft model | 0.76m | 2ft |
| Platform width-8ft model | 2.44m | 8ft |
| Platform width -6ft model | 1.83m | 6ft |
| Height-stowed | 2.8m | 9ft |
| Length-stowed | 12.46m | 40ft |
| Width | 2.8m | 8ft |
| Wheelbase | 3.8m | 9ft |
| Ground clearance-center | 0.43m | 1ft5in |
| PRODUCTIVITY | ||
| Lift capacity (restricted) | 480kg | 1056lbs |
| Lift capacity (non-restricted) | 200kg | 441lbs |
| Platform rotation | 160° | |
| Jib rotation | 135° | |
| Turntable Swing | 360°continuous | |
| Turntable tailswing | 1.32m | 4ft4in |
| Travel speed -stowed | 5.3km/h | 3.3mph |
| Travel speed -raised or extended | 1.1km/h | 0.68mph |
| Gradeability -stowed (4WD/2WD) | 45%/30% | |
| Turning radius - inside | 3.59m | 11ft9in |
| Turning radius - outside | 6.25m | 20ft |
| Controls | 24V DC Proportional | |
| Solid tires | 12.00-20/8.5 | |
| POWER | ||
| Power source | Cummins B3.3NA-C60 60HP (45kw) | |
| Lovol 1004-4 78 hp (58kw) | ||
| Perkins 400 61hp (45.5kw) | ||
| Auxiliary power unit | 24V DC | |
| Hydraulic tank capacity | 190L | |
| Fuel tank capacity | 150L | |
| WEIGHT *** | ||
| 2WD | 16140kg | 35508lbs |
| 4WD | 16220kg | 35684lbs |
| 4WD | ||
| STANDARDS COMPLIANCE EN280JG/T5101Q/ADZV001-2008 |
