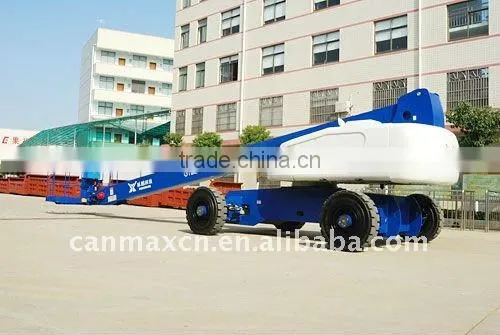

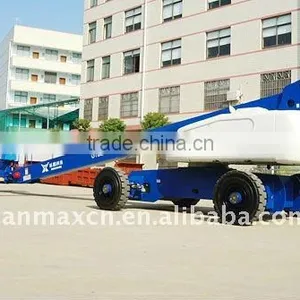

30m Telescopic Boom Self-propelled Aerial Work Platform
Negotiable
/ Set
1 Set(Min. Order)
- any port of China
- T/T
You May Like
-
20m Articulated Boom Aerial Work Platform
-
20m Articulated Boom Aerial Work Platform
-
27m Telescopic Boom Self-propelled Aerial Work Platform
-
25m Telescopic Boom Self-propelled Aerial Work Platform
-
20m Telescopic Boom Self-propelled Aerial Work Platform
-
14m Articulating Boom Self-propelled Aerial Work Platform
Product Details
| Place of Origin | Shanghai, China | Brand Name | CANMAX | |
| Model Number | GTBZ30 |
Product Description
Specifications
30m Telescopic boom Self-propelled aerial work platform1.Platform height 32.2m
2.Lift capacity 480kg
3.WEIGHT 18520kg
30m Telescopic boom Self-propelled aerial work platform
| MODEL | GTBZ30 | |
| MEASUREMENTS | Metric | US |
| Working height maximum * | 32.2m | 105ft |
| Platform height maximum | 30.4m | 100ft |
| Horizontal reach maximum ** | 22.9m | 75ft |
| Below ground reach | 3.34m | 11ft |
| Platform length-8ft model | 0.91m | 3ft |
| Platform length-6ft model | 0.76m | 2ft6in |
| Platform width-8ft model | 2.44m | 8ft |
| Platform width -6ft model | 1.83m | 6ft |
| Height-stowed | 3.08m | 10ft |
| Length-stowed | 13m | 43ft |
| Width –axle retracted | 2.49m | 8ft |
| Width –axle extended | 3.35m | 11ft |
| Wheelbase | 3.66m | 12ft |
| Ground clearance-center | 0.43m | 1ft5in |
| PRODUCTIVITY | ||
| Lift capacity (restricted) | 480kg | 1056lbs |
| Lift capacity (non-restricted) | 340kg | 748lbs |
| Platform rotation | 160° | |
| Jib rotation | - | |
| Turntable Swing | 360°continuous | |
| Turntable tailswing -axle retracted | 1.82m | 6ft |
| Turntable tailswing -axle extended | 1.38m | 5ft |
| Travel speed -stowed | 4.4km/h | 2..73mph |
| Travel speed -raised or extended | 1.1km/h | 0.68mph |
| Gradeability -stowed (4WD/2WD) | 42%/30% | |
| Turning radius - axle retracted inside | 4.14m | 13ft7in |
| Turning radius - axle retracted outside | 6.56m | 22ft |
| Turning radius - axle extendeded inside | 2.74m | 9ft |
| Turning radius - axle retracted outside | 5.85m | 19ft |
| Controls | 24V DC Proportional | |
| Solid tires | 12.00-20/8.5 | 12.00-20/8.5 |
| POWER | ||
| Power source | Cummins B3.3 80 HP (60kw) | |
| Lovol 1004-4 78 hp (58kw) | ||
| Perkins 400 76 hp (56kw) | ||
| Auxiliary power unit | 24V DC | |
| Hydraulic tank capacity | 265L | |
| Fuel tank capacity | 150L | |
| WEIGHT *** | ||
| 2WD | 18520kg | 40830lbs |
| 4WD | 18600kg | 41000lbs |
| 4WD | 18600kg | 41000lbs |
| STANDARDS COMPLIANCE EN280JG/T5101Q/ADZV001-2008 |
