Raw Material Grain Grader Equipment

Name: Raw Material Grain Grader Equipment
Brand: XLFY
SKU: 141323534
Availability: InStock

Qingdao Wolong Peanut Machinery Co., Ltd.

US$ 5,000 - 9,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XLFY

Model Number:

XLFY1000-4-7

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XLFY

Model Number XLFY1000-4-7

Type Grain Processing Equipment

After-sales Service Provided Engineers available to service machinery overseas

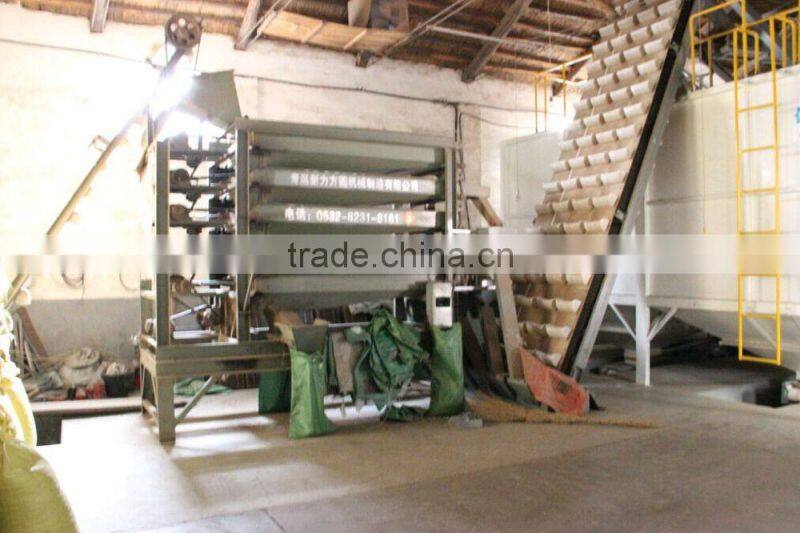

Wolong Peanut Grading Machine/ Peanut Machine

grain,peanut processing line

2-6 levels peanut screening machine/peanut grading machine/Peanut classifier

This machine is absorbed the advantages of similar products at home and abroad,

with compact structure, reasonable, high efficiency, save energy consumption,

easy to use the characteristic such as being reliable, applicable in selected peanut kernels,

by a select can achieve precise classification standard. The sprocket, chain drive push rod,

sieve body smooth reciprocating screening, the screen piece made with iron plate punching,

each layer sieve body are returned to the disc, can make the material in the screen piece by the whole process

above screening, and clear materials in the halfway or front screen that is caused by the classification is not clear into

the disadvantages,and each layer sieve bottom after all have certain lists, facilitate the material flow smoothly.

Main parameter of the machine:

NO.	Model	processing capacity MT/H	after insallation dimension(m)	Power(KW)	frequency conversion	screen sheet
1	80-2-7	1	3.51.122.7 6.523.2	1.5		20
2	80-3-7	1.5	3.51.122.6 6.523.2	1.5		30
3	80-4-7	2	3.51.51.7 6.523.5	1.5		50
4	80-5-7	2.5	3.51.121.9 6.523.6	2.2		70
5	80-6-7	3	3.51.122.15 6.524	3		80
6	100-3-7	2	3.61.32.2 7.52.33.2	1.5		30
7	100-4-7	3	3.61.31.7 7.52.33.5	2.2		50
8	100-5-7	3.5	3.61.32.1 7.52.33.9	3		70
9	100-6-7	4	3.61.32.4 7.52.34.2	3		80
10	100-3-10	3	3.61.32.4 7.52.34.2	2.2		40
11	100-4-10	4	4.61.31.9 8.52.33.7	3	4KW	56
12	100-5-10	5	4.61.32.3 8.52.34.2	4		90
13	100-6-10	6	4.61.32.65 8.52.34.5	4		100
14	120-4-7	4	3.61.41.7 7.52.43.5	2.2		50
15	120-5-7	5	3.61.42.1 7.52.43.9	3		70
16	120-6-7	6	3.61.42.4 7.52.44.2	3		80
17	120-3-10
18	120-4-10	5	4.61.41.9 8.52.43.7	3	4KW
19	120-5-10	6	4.61.42.3 8.52.44.2	4
20	120-6-10	7	4.61.42.65 8.52.44.5	4
