Home > Products > Processing equipment > High Effciency Peanut Screening Vibrator Machinery
High Effciency Peanut Screening Vibrator Machinery
- Qingdao
- T/T Credit Card
You May Like
-
Factory Peanut Color Sorter Machine Line in China
-
Best Sale New Style Chroma Color Sorting Machine Line
-
Peanut Color Grading Sorting Machine Line Supplier
-
my Text Color Sorting Machine
-
New Design Rotary Groundnut Screening Machine
-
Cheap High Efficiency Standard Peanut Kernels Grading Sieving Machine
Product Details
| Condition | New | Type | Other, sorter | |
| Application | Other, Food Processing, Picking different size of peanut, and other nuts, etc | Place of Origin | Shandong, China | |
| Brand Name | XLFY | Model Number | XLFY400-4 | |
| Voltage | 380V | Power(W) | 1.5kw,2.2kw,3kw,4kw | |
| Dimension(L*W*H) | could be adjustable according to your detailed requirement | Weight | could be adjustable according to your detailed requirement | |
| Certification | ISO9001 | Warranty | Peanut screening machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High effciency peanut screening vibrator machinery
This axles transmission screening machine (national patent products),is new product in the same industry area .Greatly improved the previously Chain transmission mode .Lower noise ,simple appearance ,precisely sorting ,lower cost ,these advantages are highly admired by customers .
This sorter could be used to particles sorting ,grain sorting ,peanut and etc sorting work .Recently we have six models for custormers’ choose. (Sorter machine sieve sheet :Each layer of commonly used original seven sieving slice ,improved ten screen pieces on each floor).
| type | number of plies | number of single screen piece | boundary dimension(meter) | substructure height | power (kw) | amount of finish(t/h) | ||
| length | wide | high | ||||||
| 80tyre | 2 | 7 | 2.92+0.7 | 1.12 | 0.94 | 1 | 1.5 | 1 |
| 3 | 7 | 2.92+0.7 | 1.12 | 1.27 | 0.7 | 1.5 | 1.5 | |
| 4 | 7 | 2.92+0.7 | 1.12 | 1.545 | 0.7 | 2.2 | 2 | |
| 5 | 7 | 2.92+0.7 | 1.12 | 1.845 | 0.7 | 2.2 | 2.5 | |
| 6 | 7 | 2.92+0.7 | 1.12 | 2.14 | 0.7 | 3 | 3 | |
| 100tyre | 2 | 7 | 3.09+0.8 | 1.31 | 1.1 | 1 | 1.5 | 1.5 |
| 3 | 7 | 3.09+0.8 | 1.31 | 1.41 | 0.7 | 1.5 | 2 | |
| 4 | 7 | 3.09+0.8 | 1.31 | 1.79 | 0.7 | 2.2 | 3 | |
| 5 | 7 | 3.09+0.8 | 1.31 | 2.05 | 0.7 | 3 | 3.5 | |
| 6 | 7 | 3.09+0.8 | 1.31 | 2.42 | 0.7 | 3 | 4 | |
| 2 | 10 | 4.12+0.8 | 1.31 | 1.19 | 1 | 2.2 | 3 | |
| 3 | 10 | 4.12+0.8 | 1.31 | 1.57 | 0.65 | 2.2 | 3 | |
| 4 | 10 | 4.12+0.8 | 1.31 | 1.93 | 0.65 | 4 | 4 | |
| 5 | 10 | 4.12+0.8 | 1.31 | 2.3 | 0.65 | 4 | 5 | |
| 6 | 10 | 4.12+0.8 | 1.31 | 2.66 | 0.65 | 4 | 6 | |
| 120tyre | 3 | 7 | 3.09+0.9 | 1.51 | 1.56 | 0.7 | 2.2 | 3.5 |
| 4 | 7 | 3.09+0.1 | 1.51 | 1.925 | 0.7 | 2.2 | 4 | |
| 5 | 7 | 3.09+0.11 | 1.51 | 2.3 | 0.7 | 3 | 5 | |
| 6 | 7 | 3.09+0.12 | 1.51 | 2.665 | 0.7 | 4 | 6 | |
| 3 | 10 | 4.12+0.8 | 1.51 | 1.555 | 0.65 | 3 | 4 | |
| 4 | 10 | 4.12+0.8 | 1.51 | 1.925 | 0.65 | 3 | 5 | |
| 5 | 10 | 4.12+0.8 | 1.51 | 2.295 | 0.65 | 4 | 6 | |
| 6 | 10 | 4.12+0.8 | 1.51 | 2.665 | 0.65 | 4 | 7 | |
| 150tyre | 6 | 10 | 4.12+0.8 | 1.81 | 2.7 | 0.65 | 4 | 10 |
Above is a common model, also can be customized. The general model is 80 type, 100 type, 120 type, 150 type, each model can do 1 to 8 layers, each layer can do 7 and 10 sieve.

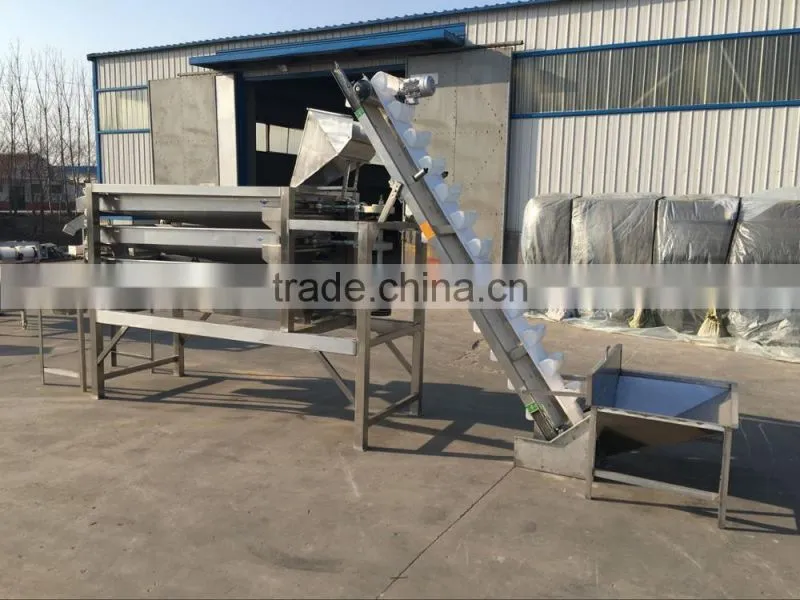

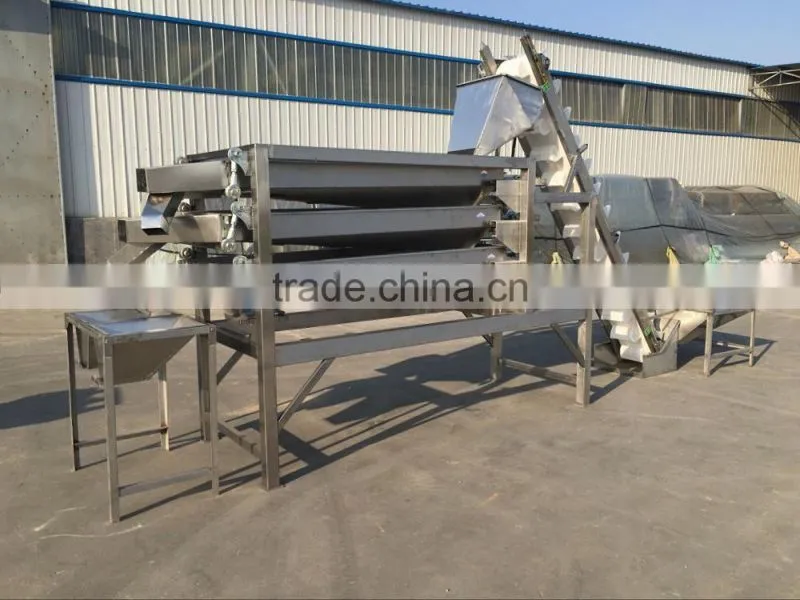

♦A set of screening machine standard configuration: a screening machine, a slope elevator, a large underground hopper, two trolley
1.Offer quality product with competitive price;
2.Comprehensive service for order following and tracking;
3.Shipping cost inquiry to your destination port;
4.OEM and customize design for your potential marketing product;
5.Friendly service and prompt reply within 24 hours.
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
