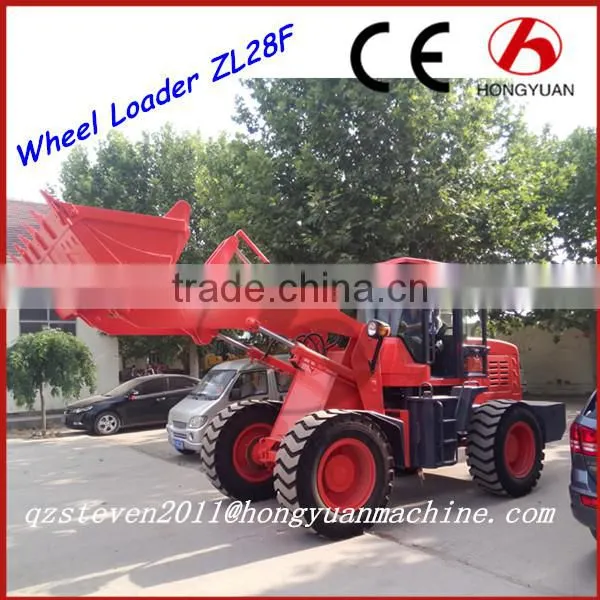

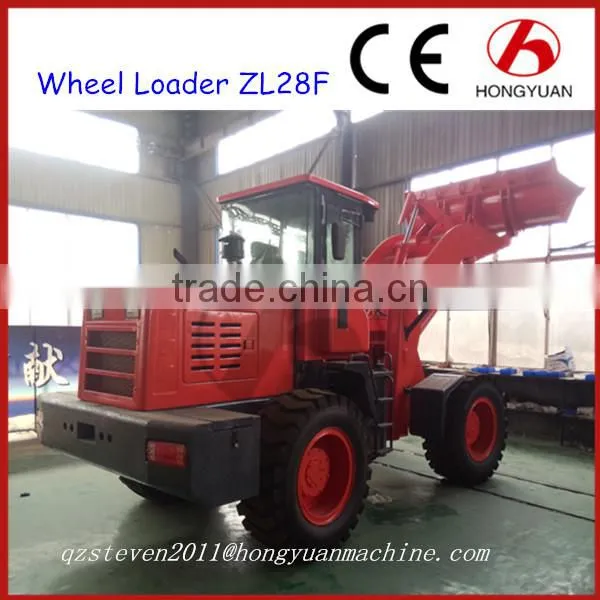

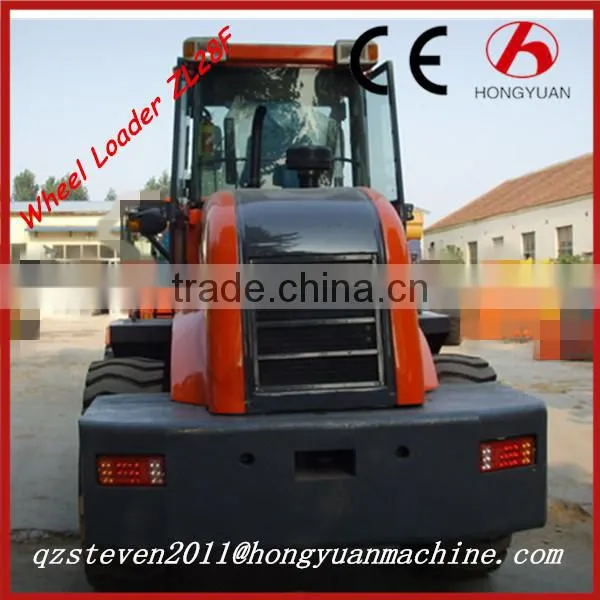

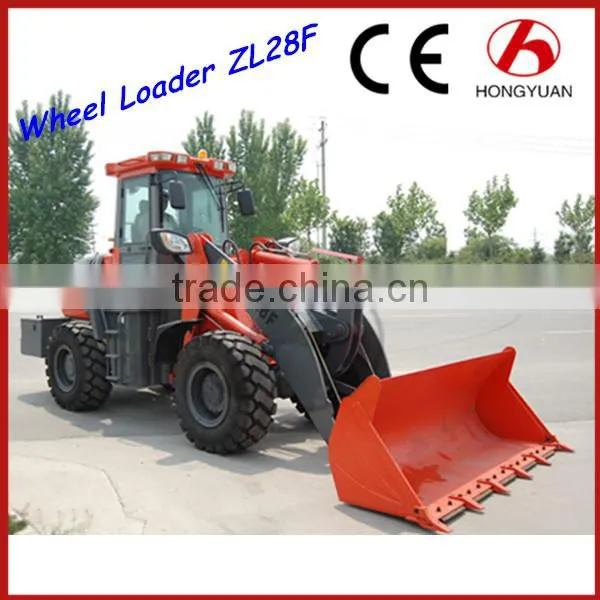

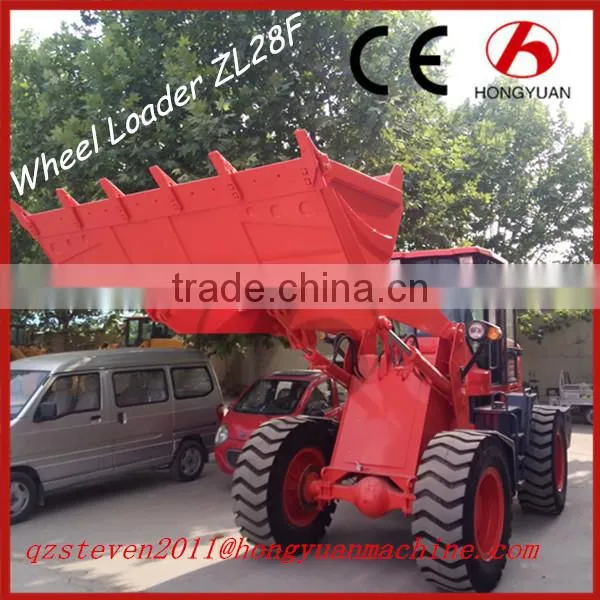

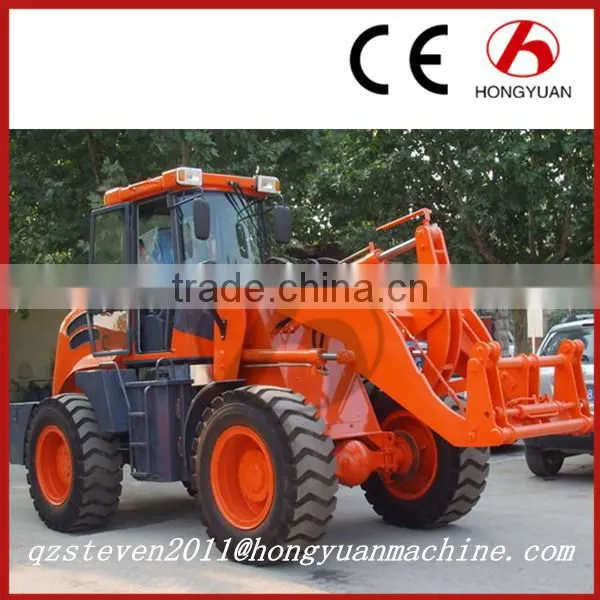

THE TECHNICAL PARAMETERS OF ZL28F CE CERTIFICATE MINI WHEEL LOADER | |||
Item |
Specifications |
Item |
Specifications |
Rated loading weight |
2800kg |
Operating weight |
6200kg |
Rated bucket capacity |
1.4m3 |
Overall dimensions (LxWxH) |
6570x2200x2850mm |
Track base |
1650mm |
Engine model |
YT4A2Z-24 |
Wheel base |
2600mm |
Engine type |
In-line arrangement, water cooled, four-cycle diesel engine |
|
Min. turning radius(outside of buckets) |
4800mm |
Engine starting mode |
Electric |
Min. Ground clearance |
380mm |
Rated power /Rated speed |
85KW/2400rpm |
Dump height fully raised |
3500mm |
Brake mode |
Four-wheel hydraulic spread-shoed brake |
Reach fully raised |
1300mm |
Warranty |
12 months after received the goods |
Lifting time |
6.0S |
Color |
According to the requirements of customers |
Max. Tilt angle |
300 |
Tyre type |
16/70-24 |
|
Max. Bucket breakout, lift cylinder |
64KN |
Shipping port |
Qingdao port, China |
Driving mode |
Four-wheel full hydraulic drive |
Packing details |
Nude package, 1 Unit/40's HQ |
Maximum Speed |
25km/h |
Delivery time |
15 days after confirm the order |
|
|
Supply ability |
100 units per month |
Major features
Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for
convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal
decoration.
The low vibration suspending seat is designed specially for the operators and improves
human feeling.
The air conditioner is optional.
Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity.
Good carrying capacity and stability.
Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation,
stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed
and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion
and self-washing performance, big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Nude packing, One 40 feet HC container can pack one unit with some accessories.
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of
wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All
of our products comply with international quality standards and are greatly appreciated in a variety of different
markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE
Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,
ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with more
than 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift, Sugarcane
loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have
exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,
Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,
Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
