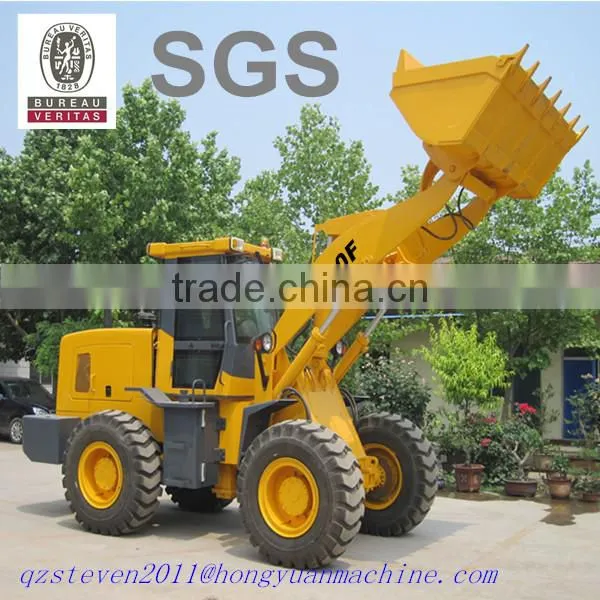

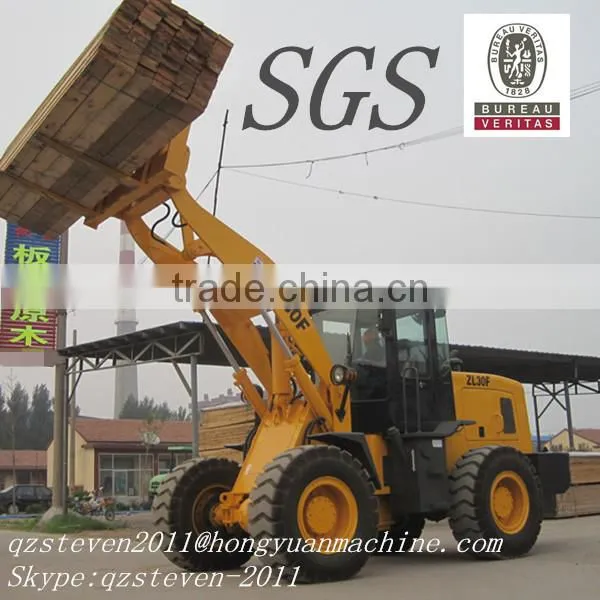

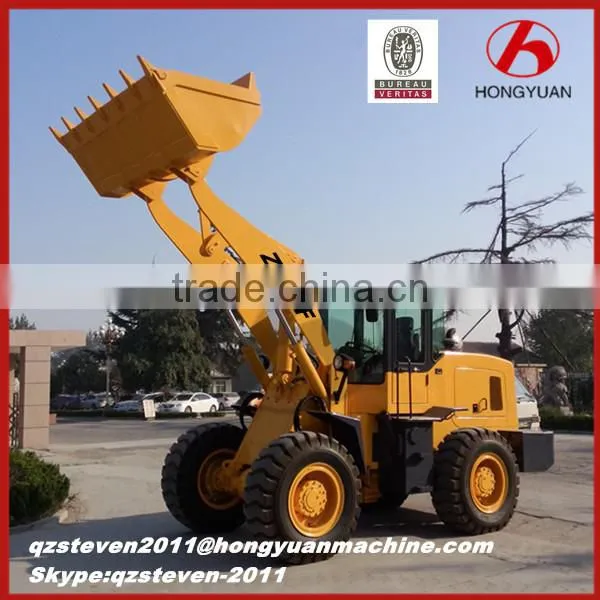

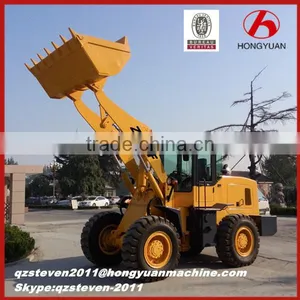

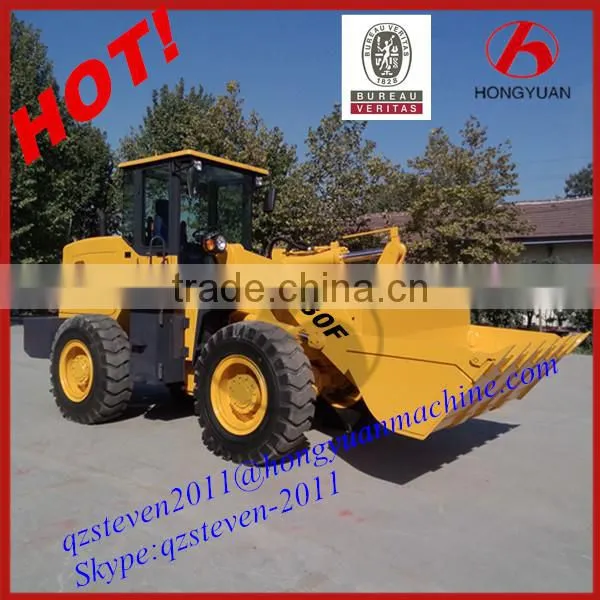

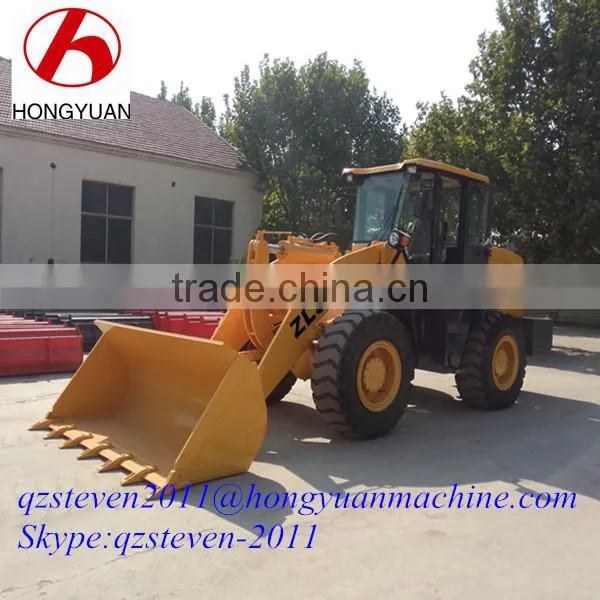

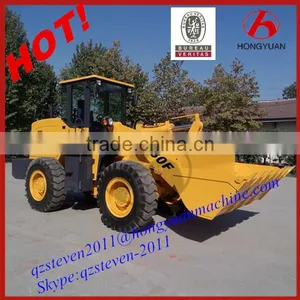

hy936 wheel loader(hongyuan) with 97kw engine for sale Vietnam

THE TECHNICAL PARAMETERS OF ZL30F CE CERTIFICATE MINI WHEEL LOADER

Item

Specifications

Item

Specifications

Rated loading weight

3000kg

Engine type

In-line arrangement, water cooled,

six-cycle diesel engine

Rated bucket capacity

1.7m³

Engine starting mode

Electric

Track base

1800mm

Rated power

97KW

Wheel base

2760mm

Brake mode

Four-wheel hydraulic spread-shoed

brake

Min. turning radius

(outside of  rear wheels)

5700mm

Warranty

12 months after received the goods

Dump height fully raised

3020/3250mm

Color

According to the requirements of customers

Reach fully raised

1200mm

Tyre type

      17.5-25

Lifting time+Lowering time

+Unloading time

11S

Shipping port

Qingdao port, China

Max. Bucket breakout, lift

cylinder

138KN

Packing details

Driving mode

Four-wheel full

hydraulic drive

Delivery time

15 days after confirm the order

Operating weight

9500kg

Supply ability

100 units per month

Overall dimensions(LxWxH)

7050x2430x3120mm

Engine model

Cummins

Front/Rear Axle

Planetary transmission is equipped with a compact structure and big torque.

Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.

Cab

With new steel frame, the cab features wider view field, reliable safety and low noise.

Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.

Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.

The low vibration suspending seat is designed specially for the operators and improves human feeling.

The air conditioner is optional.

Humper

Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.

Welding Structure

New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and stability.

Hydraulic System

The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.

The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.

All the hydraulic parts are well-known brands in China, with perfect and reliable performance.

Wide Thread Steel Radial Tyre

Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.

Widely applied for mining, earth-moving, loading and digging operation.

Electric System

The cable and jacket are made of anti-flaming material.
