Cheap 3d Wheel Alignment Machine Price Wheel Loader

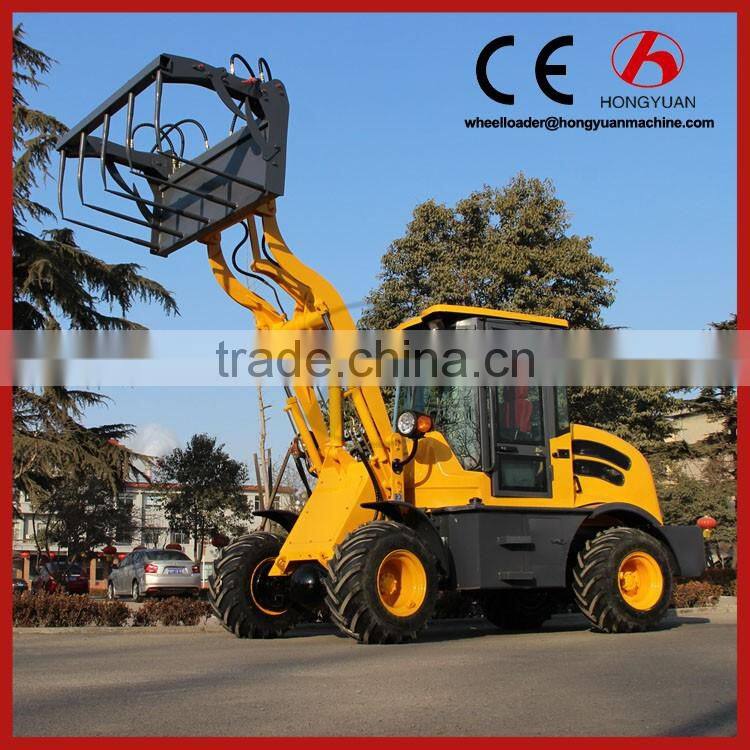

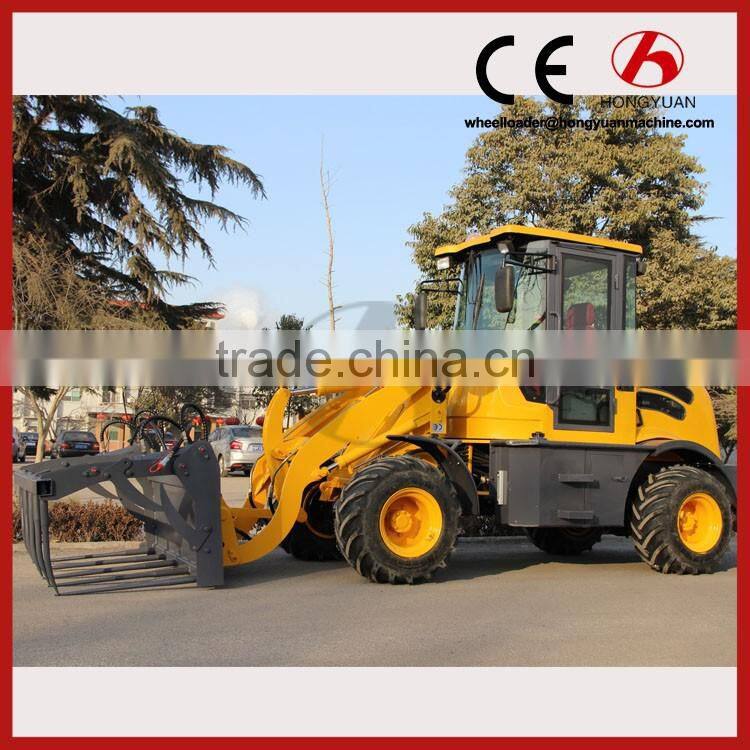

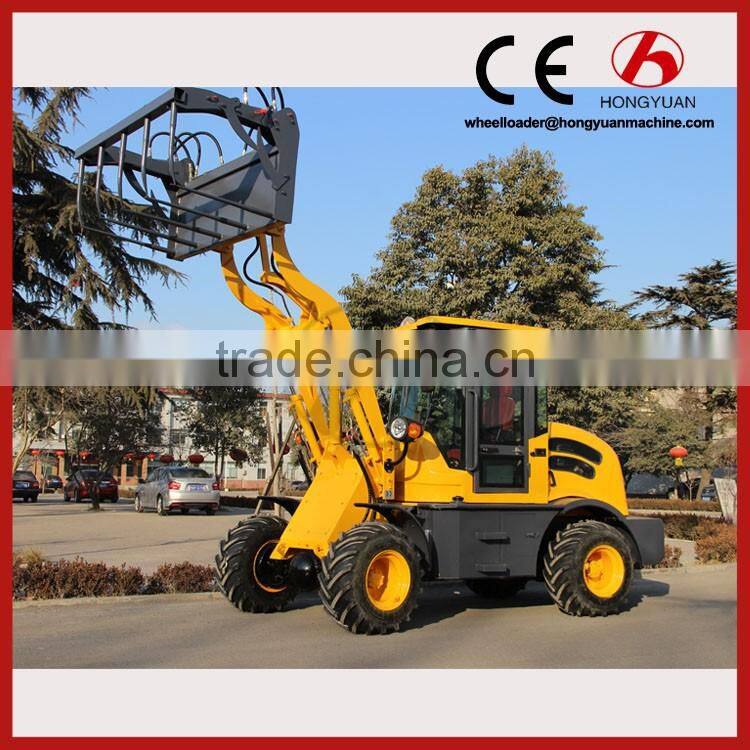

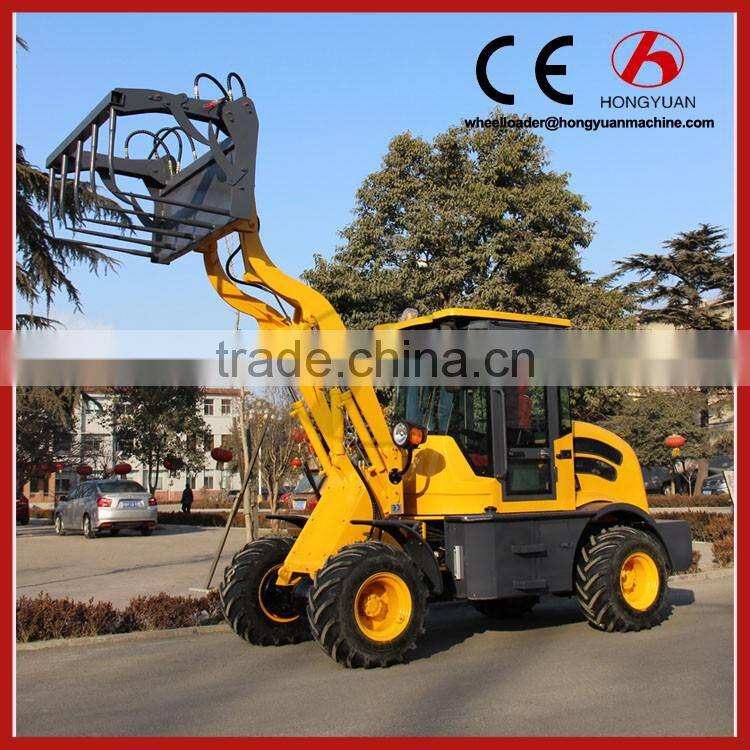

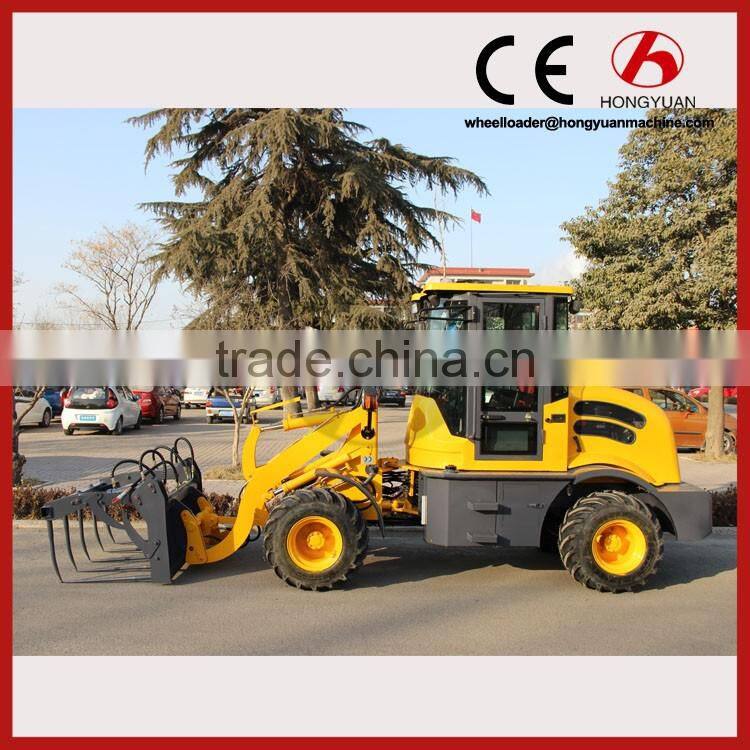

Cheap 3d wheel alignment machine price wheel loader

1.Using direct injection diesel engine as power, with easy startup and low oil consumption

2.Using special drive axle, with strong ability to overcome obstacle

3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation

in narrow space

4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and

reliable quality

5.Widely applying to the construction of agricultural engineering and small and medium building such as road,

coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory,

etc.

1.0 Engine details:

(1) Model: Changchai 385

(2) Engine type: In-line arrangement, water-cooled, three-cycle diesel Engine

(3) Rated Power: 20KW

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 269g/kw.h

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-80

(2) System Pressure: 10MPa

3.0 Bucket

(1) Bucket Capacity: 0.4 m3

(2) Bucket width: 1300mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 28KN

(5) Rated Load: 800kg

(6) Operating Weight: 2350kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4700mm

(2) Overall Height

(a) Ground to Cab Top: 2350mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(3) Overall Width: 1600mm

5.0 Operating Specifications

(1) Drive Means: Four-wheel drive

(2) Min Turning Radius: 4600mm

(3) Driving System: mechanical

(4) Dumping Height: 2300mm

(5) Dumping Reach at max height: 750mm

(6) Min the ground distance: 240mm

(7) Time of raise: 4sec.

(8) Hydraulic cycle time: 9sec.

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model: 7.50-16 (2) Width: 20cm (3) Diameter: 80cm

8.0 Wheelbase: 2170mm

9.0. Track: 1285mm
