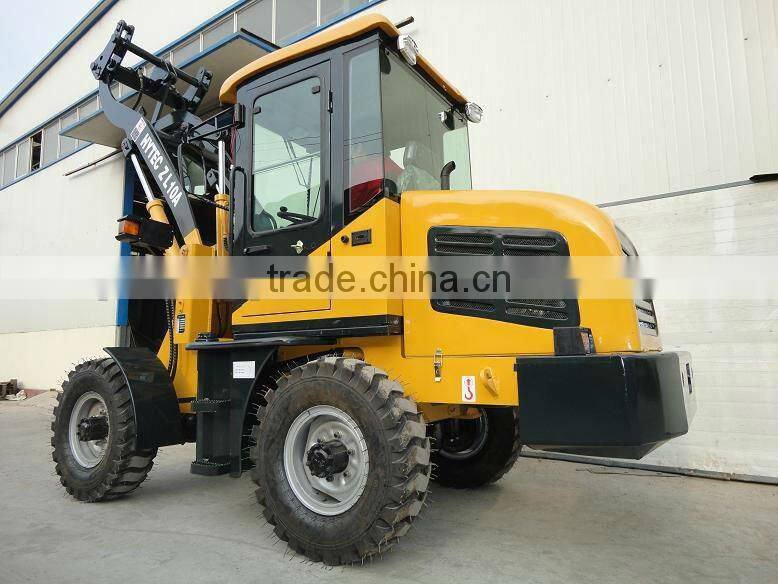

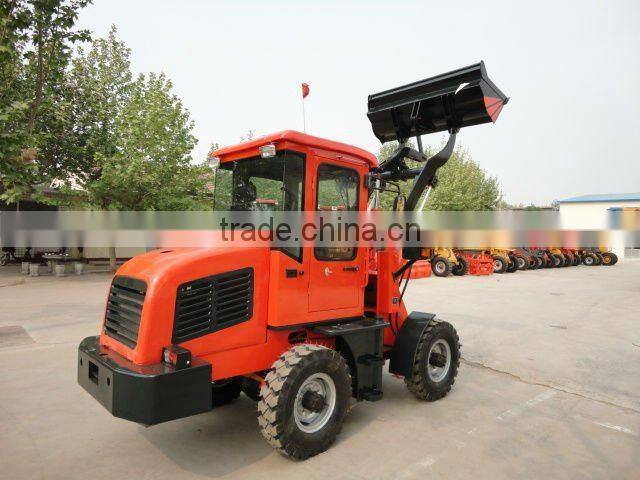

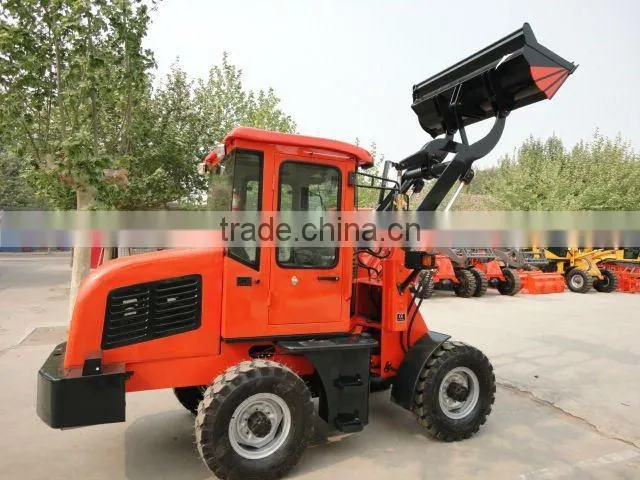

Factory Price Changchai 385 ZL10A Mini Wheel Loader

.ZL10A  mini wheel loader with CE.quickhitch
1 ;Rate load (kg) ;1000

2 ;Bucket capacity (m3) ;0.5

3 ;Wheel Distance (mm) ;1215

4 ;Axle-base (mm) ;1985

5 ;Loader clearance radius (mm) ;4200

6 ;Min Base to the ground (mm) ;250

7 ;Dump clearanle(mm) ;2220

8 ;Distance acc.to the height (mm) ;850

9 ;Time of Raise (s) ;4

10 ;Hydraulic cycle time (s) ;8.2

11 ;Turns to pick the strength most greatly ;22

12 ;Drive Means ;Four are Drive

13 ;Operating weight (kg) ;2700

14 ;Overall dimensions : (mm) ( Length*width*height) ;4750*1500*2530

15 ;Engine Model ;ZN385Q

16 ;Engine Rated power (kw) ;20

17 ;Engine Rated output (rpm) ;2600

1.Using direct injection diesel engine as power, with easy startup and low oil consumption

2.Using special drive axle, with strong ability to overcome obstacle

3.Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space

4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality

5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

5.Hydraulic mechanical transmission,can make full use of engine power

6.Using four -wheel -drive,low wide-based off-road tires

7.A single pipeline hydraulic brake system up for wheel brake shoe
