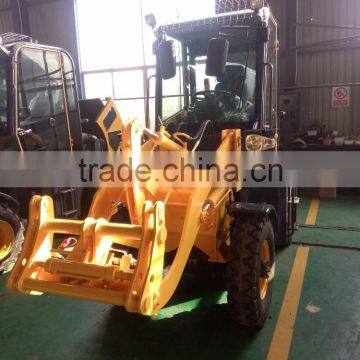

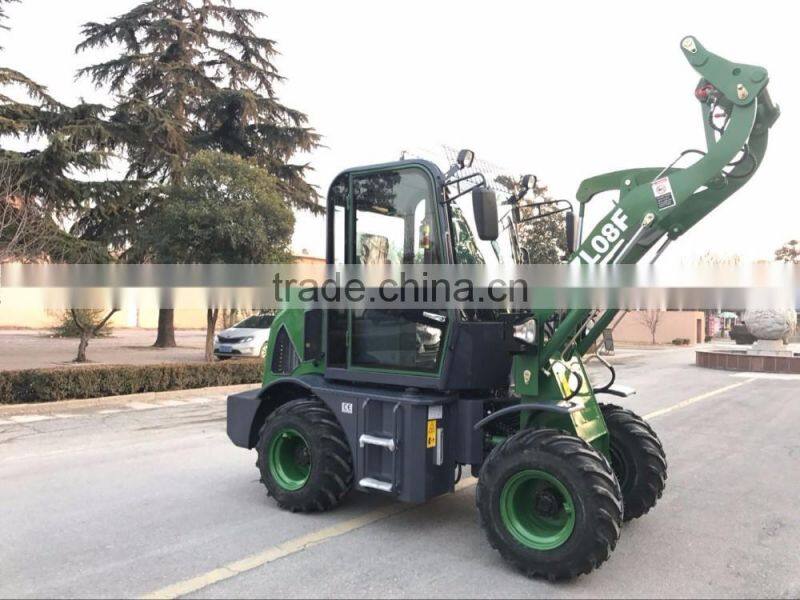

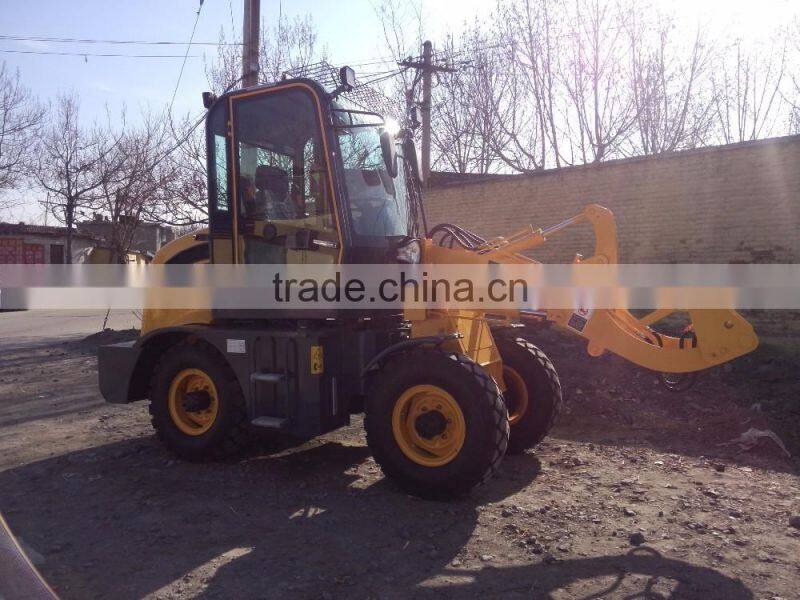

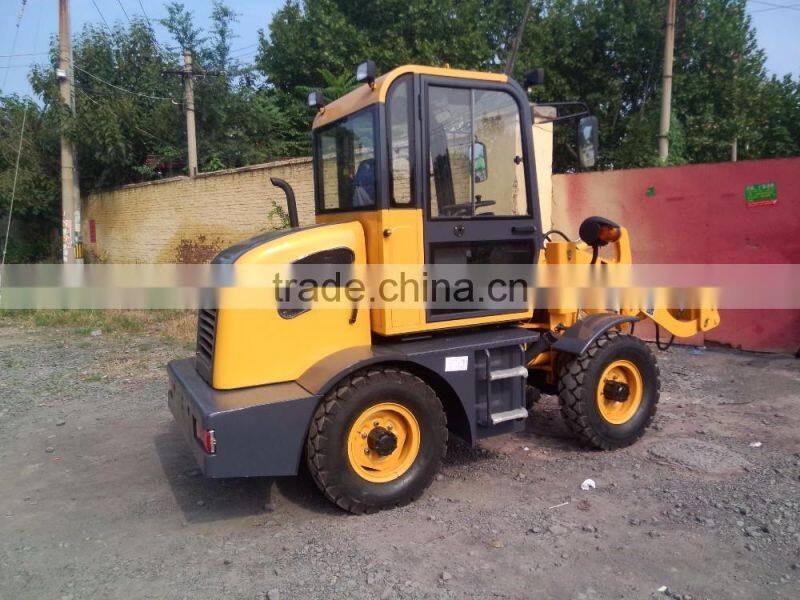

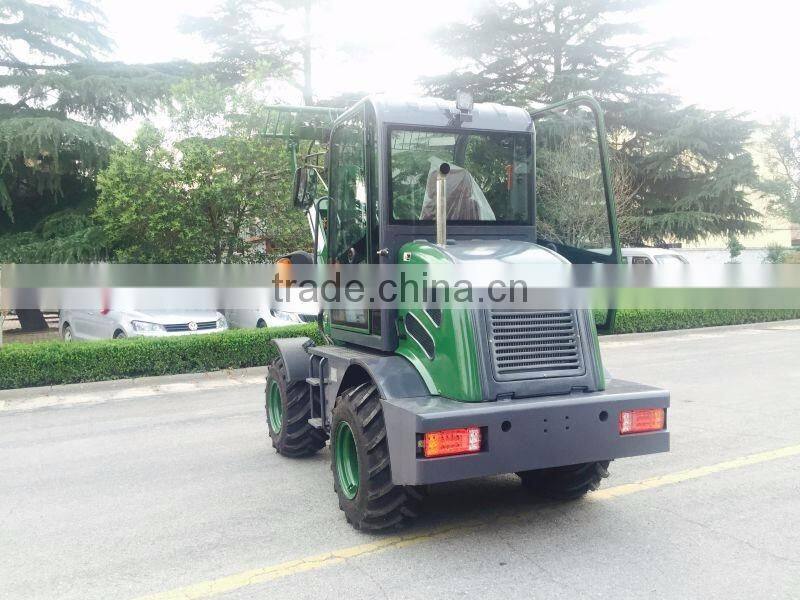

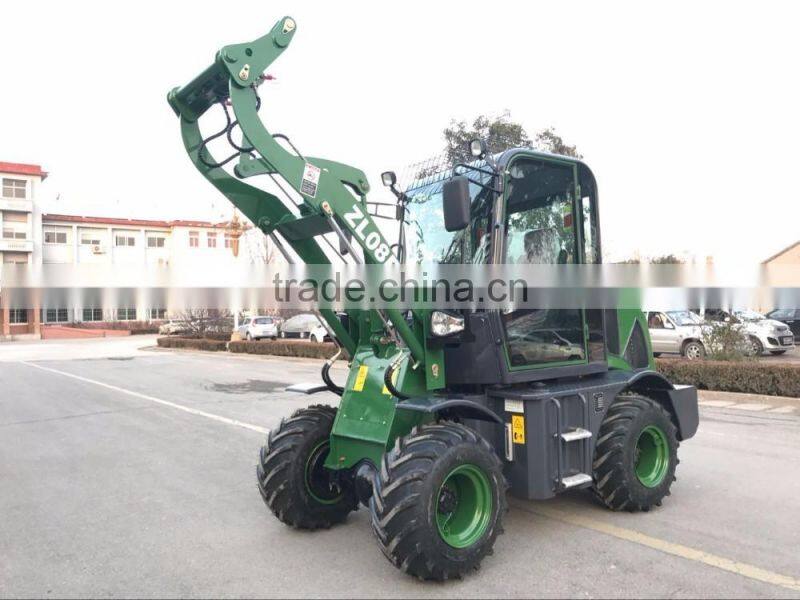

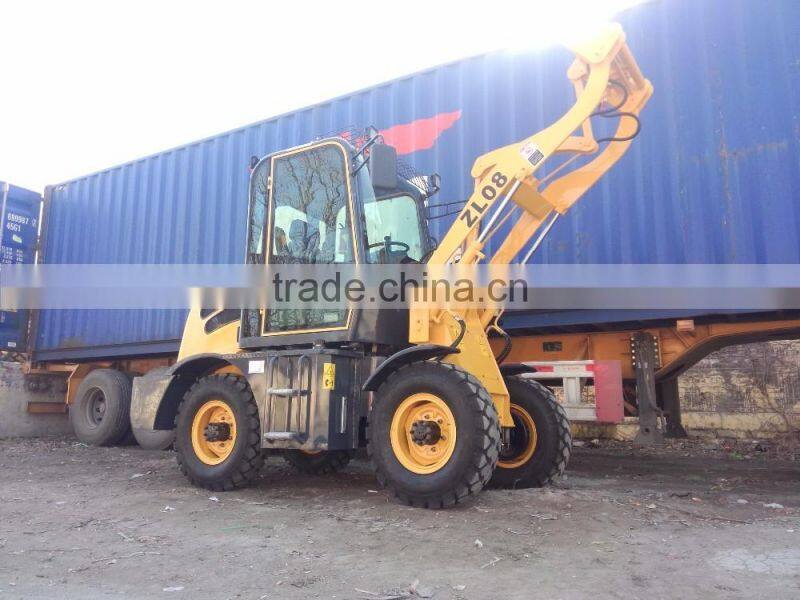

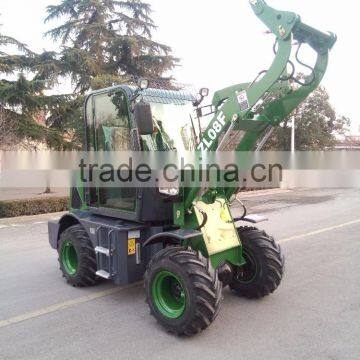

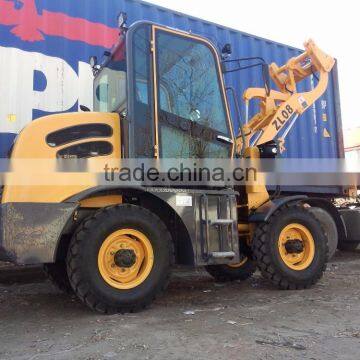

Help CenterNewest 0.8ton Mini Loader ZL08F With Cheap Price
Related Products
-
2017 Newest Type 0.8ton Rated Loading Capacity ZL08F With CE CertificateUS$ 5,000 - 5,300MOQ: 1 Unit -
Best Price ce Certificate Zl08 Mini Wheel Loader Price FactoryUS$ 3,900 - 4,200MOQ: 1 Unit
-
China Supplier Low Price Wheel Loader Factory Direct SaleUS$ 3,900 - 4,200MOQ: 1 Unit
-
China Factory Directly Provide Four Wheel Loader With CE for SaleUS$ 3,900 - 4,200MOQ: 1 Unit
-
China Made ZL08F Front End Wheel Loader With Competitive PriceUS$ 3,900 - 4,200MOQ: 1 Unit
THE TECHNICAL PARAMETERS OF ZL08F CE CERTIFICATE MINI WHEEL LOADER | |||
Item |
Specifications |
Item |
Specifications |
Rated loading weight |
800kg |
Operating weight |
2700kg |
Rated bucket capacity |
0.4m3 |
Overall dimensions (LxWxH) |
4700x1590x2450mm |
Bucket width |
1400mm |
Engine model |
CHANGCHAI 390 |
Track base |
1285mm |
Engine type |
In-line arrangement, water cooled, three cylinder diesel engine |
Wheel base |
2170mm |
Engine starting mode |
Electric |
|
Min. turning radius (outside of rear wheels) |
4600mm |
Rated power/Rated speed |
25KW/2400rpm |
Min. Ground clearance |
240mm |
Brake mode |
Four-wheel hydraulic spread-shoed brake |
Dump height fully raised |
2300mm |
Warranty |
12 months after received the goods |
Reach fully raised |
750mm |
Color |
According to the requirements of customers |
Lifting time |
4S |
Tyre type |
7.50-16 |
Hydraulic cycle time |
9S |
Shipping port |
Qingdao port, China |
Max. Tilt angle |
300 |
Packing details |
Nude package, 1Unit/20's GP, 3Units/40's HC |
|
Max. Bucket breakout, lift cylinder |
28KN |
Delivery time |
15 days after confirm the order |
Driving mode |
Four-wheel drive |
Supply ability |
100 units per month |
|
1.Using direct injection diesel engine as power, with easy startup and low oil consumption 2.Using special drive axle, with strong ability to overcome obstacle 3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space 4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality 5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc. |
We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer
and exporter of wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient
transportation access. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world. We have over 100 employees to reach
an annual sales e that exceeds USD10,000,000, and we are currently exporting 100% of our product
worldwide. We also have approved Real CE Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,
ZL15,ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with
morethan 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, etc. As a result of our high quality products and outstanding customer
service, we have exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium,
Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia,
Vietnam, Cambodia, Australia, Canada, USA, Brazil, Argentina, Uruguay etc.
