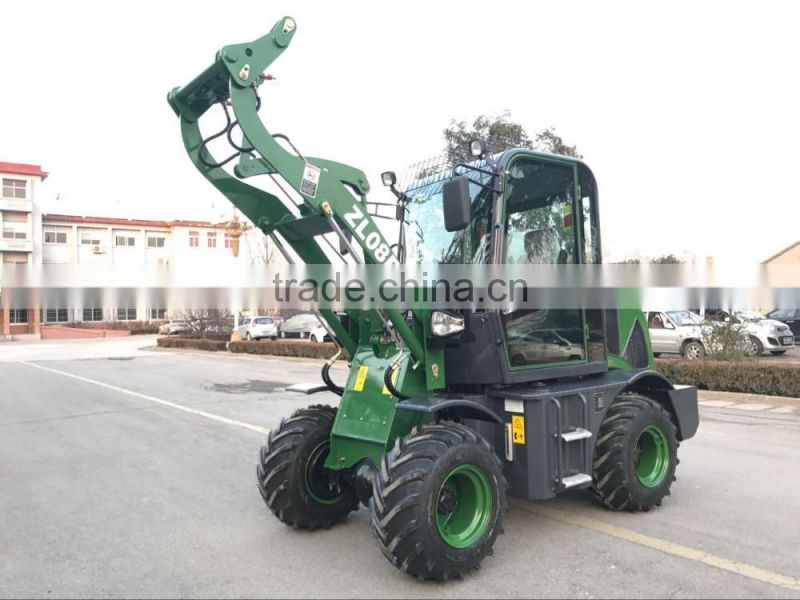

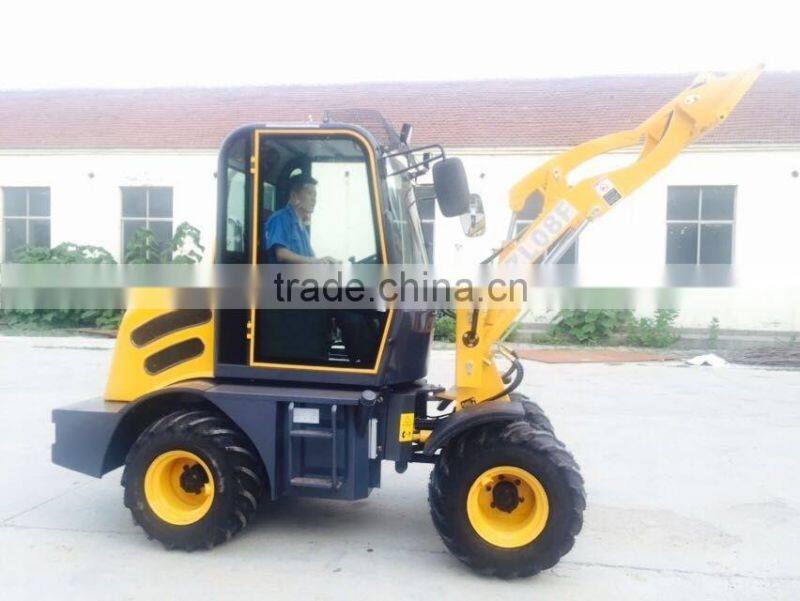

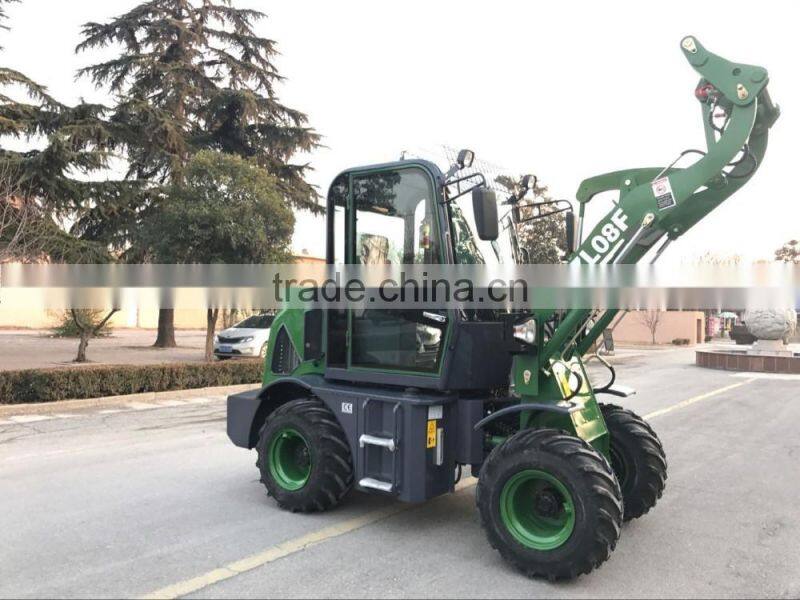

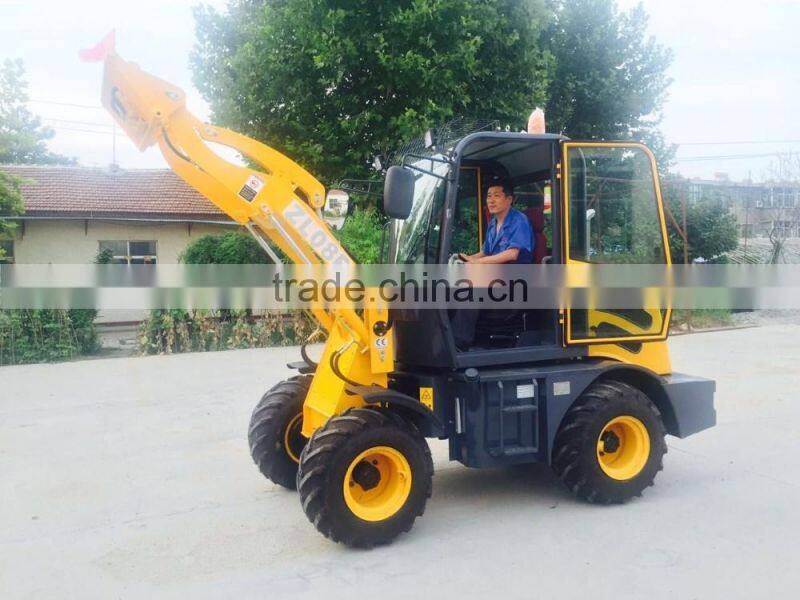

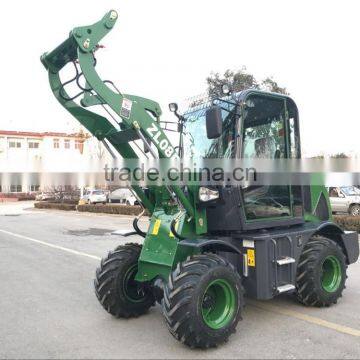

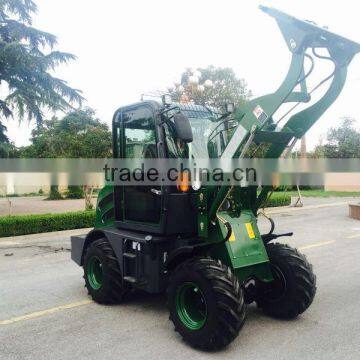

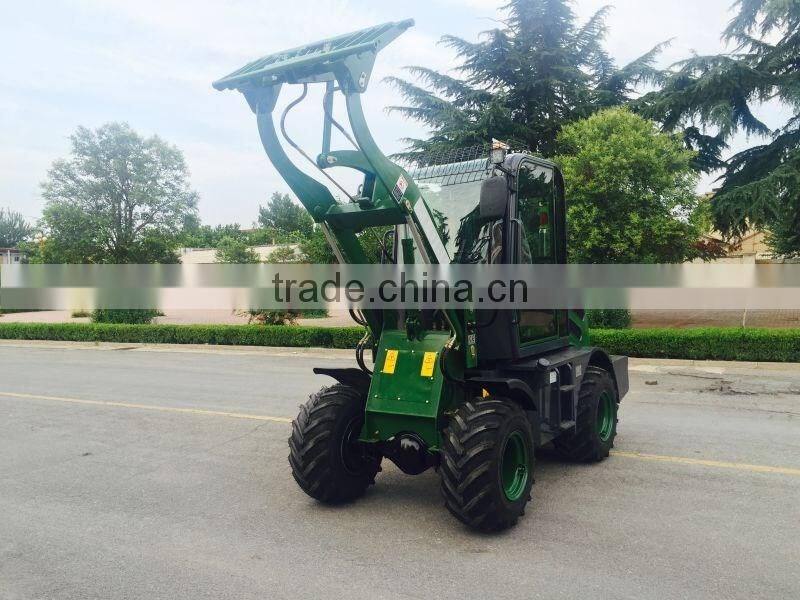

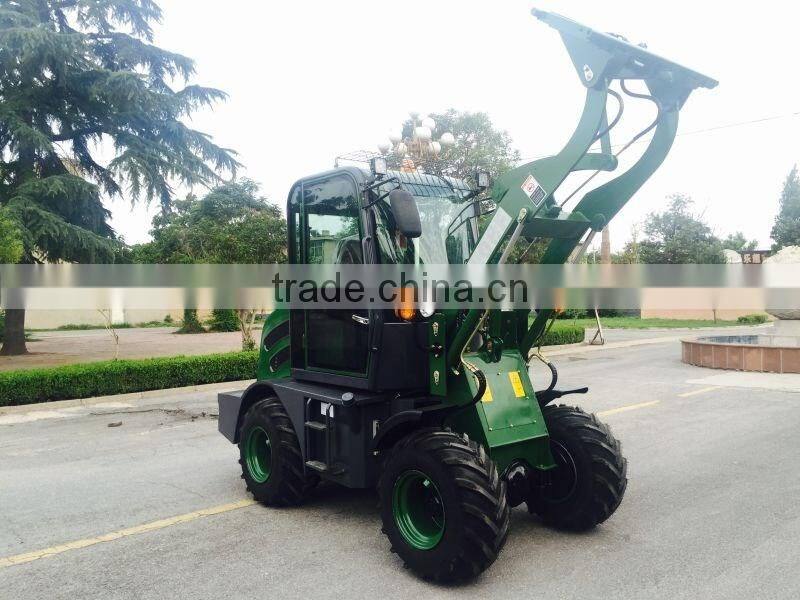

Help Center2017 Newest Type 0.8ton Rated Loading Capacity ZL08F With CE Certificate
Related Products
-
Best Price ce Certificate Zl08 Mini Wheel Loader Price FactoryUS$ 3,900 - 4,200MOQ: 1 Unit -
China Supplier Low Price Wheel Loader Factory Direct SaleUS$ 3,900 - 4,200MOQ: 1 Unit
-
China Factory Directly Provide Four Wheel Loader With CE for SaleUS$ 3,900 - 4,200MOQ: 1 Unit
-
China Made ZL08F Front End Wheel Loader With Competitive PriceUS$ 3,900 - 4,200MOQ: 1 Unit
-
Cheap Price Front End Loader for SaleUS$ 3,900 - 4,200MOQ: 1 Unit
TECHNICAL PARAMETERS
- Rated loading weight: 800kg
- Rated bucket capacity: 0.4CBM
- Bucket width: 1,400mm
- Track base: 1,285mm
- Wheelbase: 2,170mm
- Minimum swerve diameter: 4,600mm
- Minimum ground clearance: 240mm
- Dump height fully raised: 2,300mm
- Reach fully raised: 750mm
- Lifting time: 4 seconds
- Hydraulic cycle time: 9 seconds
- Maximum tilt angle: 300
- Maximum bucket breakout force, lift cylinder: 28kN
- Driving mode: four-wheel drive
- Operating weight: 2,400kg
- Dimensions (L x W x H): 4,700x 1,590 x 2,450mm
- Engine model: Changchai ZN390Q
- Engine type: in-line arrangement, water cooled, one-cycle diesel engine
- Engine starting mode: electric
- Rated speeds: 2,400rpm
- Rated power: 25kW
- Brake mode: four-wheel hydraulic spread-shoe brake
- Steering system pressure: 10mPa
- Work system pressure: 16mPa
- Color: According to the requirements of customer
- Packaging details: Nude package, 3 units/40-foot HQ container
- Supply ability: 100 units per month
MAJOR FEATURE:
1.Using direct injection diesel engine as power, with easy startup and low oil
consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning,
which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient
operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and
medium building such as road, coal mine, brickyard, urban construction, kiln factory,
stone material factory, prefabricated cement parts factory, etc.
We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Nude packing, One 20 feet GP container can pack one unit with some accessories, but need to disassemble the cabin.
One 40 feet HC container can pack 3 units with some accessories.
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
2016 Germany Munich Bauma fair
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer
and exporter of wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient
transportation access. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world. We have over 100 employees to reach
an annual sales e that exceeds USD10,000,000, and we are currently exporting 100% of our product
worldwide. We also have approved Real CE Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,
ZL15,ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with
morethan 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, etc. As a result of our high quality products and outstanding customer
service, we have exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium,
Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia,
Vietnam, Cambodia, Australia, Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
If you are interested in any of our products or would like to discuss a custom order,
please feel free to contact us.We are looking forward to forming successful business
relationships with new clients around the world in the future.
