Hydrolic compact wheel loader ,telescopic arm
- 120 Unit / Units per Month
- Qingdao port China
- T/T
Product Details
Condition: | New | Brand Name: | HONGYUAN | Model Number: | HY1500 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 4760X1680X2550mm | Rated Load: | 1500kg | Certification: | CE, ISO |
Warranty: | 12 months, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hydrolic compact wheel loader ,telescopic arm
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to
the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good
performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building
such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory,
prefabricated cement parts factory, etc.
PARAMETERS:
Specification | overall weight(kg) | 3600 |
L×W×H(mm) | 4760×1680×2550 | |
rated bucket capacity(m3) | 0.7 | |
Rated load(kg) | 1500 | |
Maximum dump height (mm) | 2750 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | Xinchai A498BT1(EURO III) |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) | 36.8kw | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ240 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 27±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | Oil brake(Vacuum booster) |
Tyres | Standard tyres | 20.5-16 |
Optional wide tyres | 20.5/70-16,23.5/70-16 |

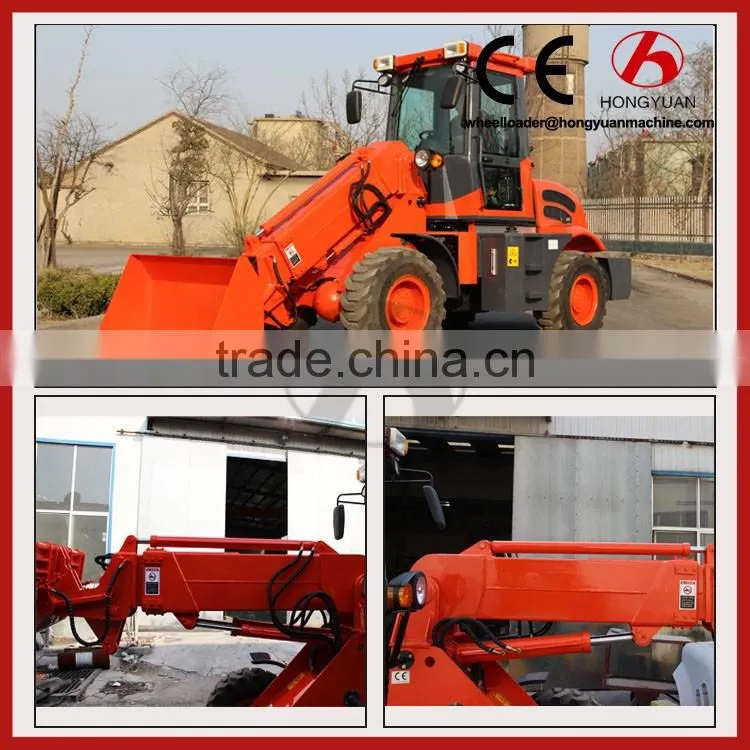

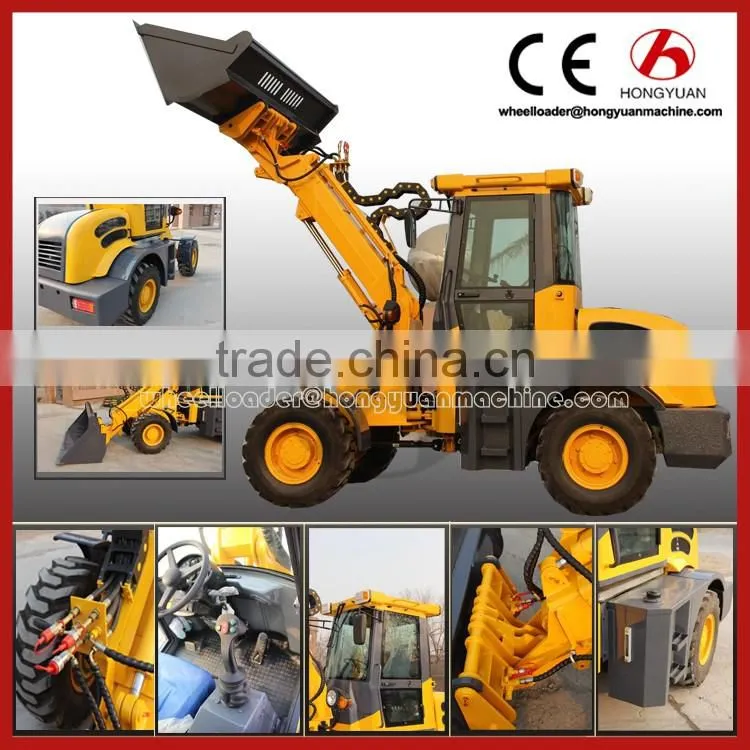

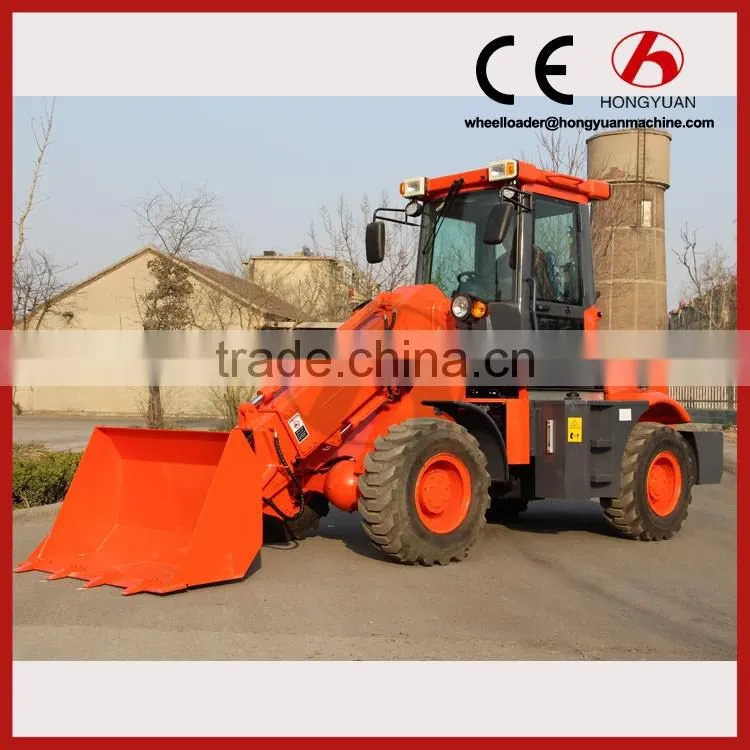

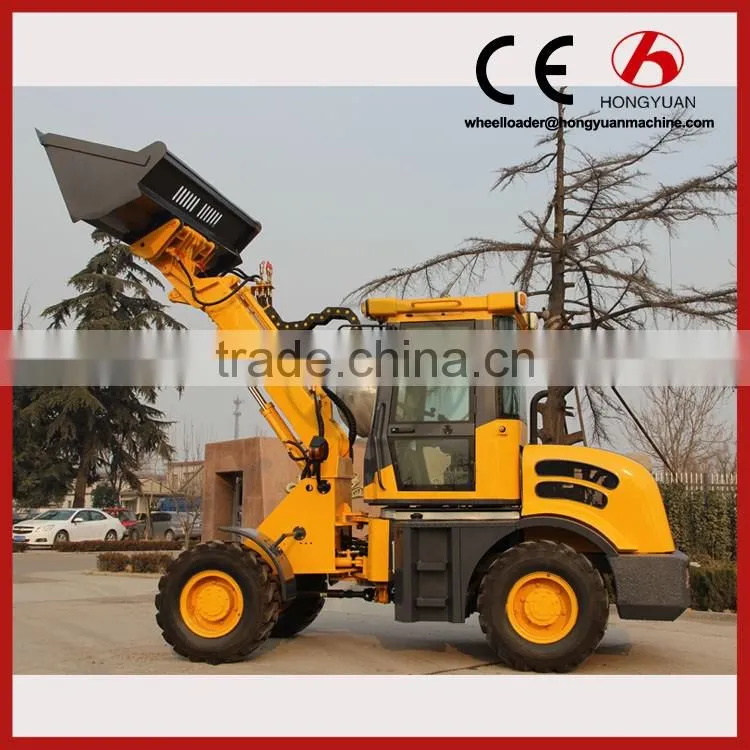

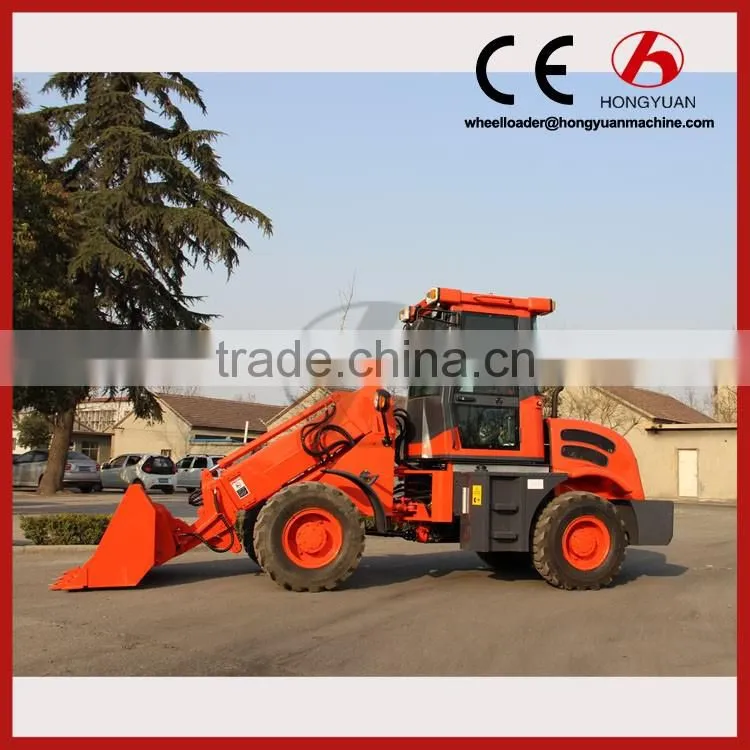

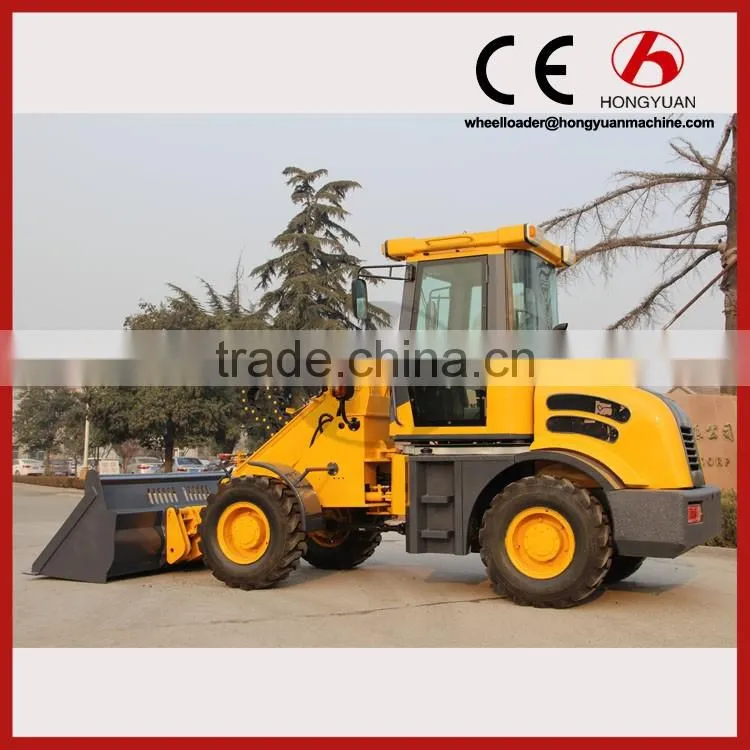

Picture show :
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of
wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All
of our products comply with international quality standards and are greatly appreciated in a variety of different
markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE
Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,
ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with more
than 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift, Sugarcane
loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have
exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,
Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,
Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
