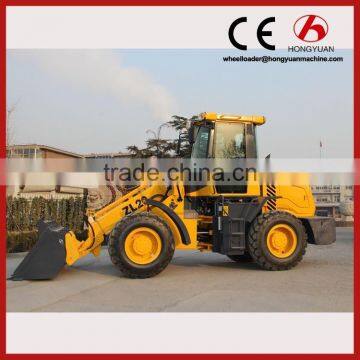

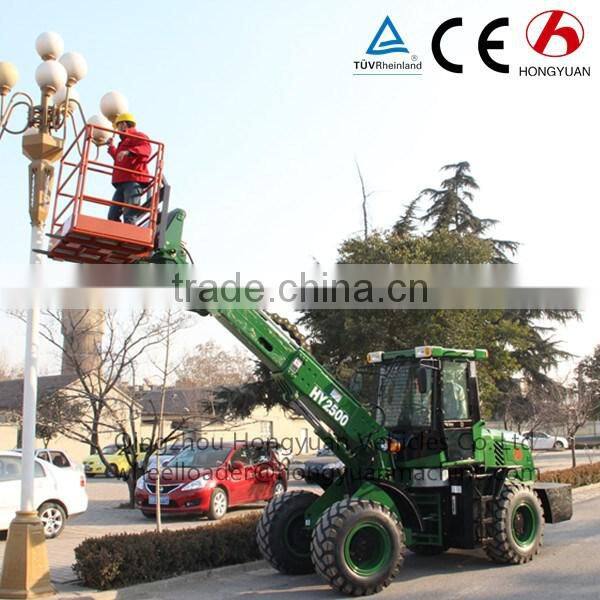

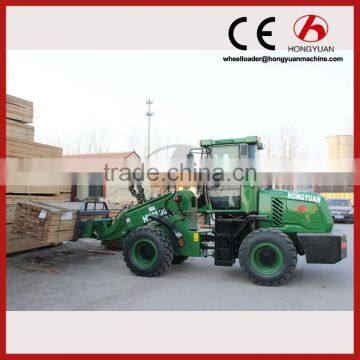

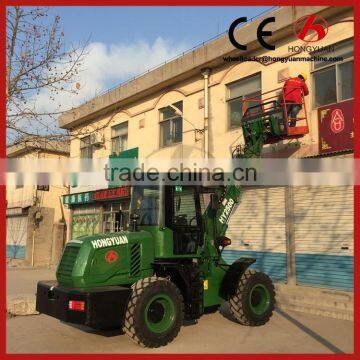

China agricultural mini telescopic wheel loader with cheap price
*EPA IV engine
*joystick.quickhitch
*Electric control telescopic boom
*with torque converter. 280 torque converter with CVT shift.2F and 2R
*four-wheel drive,timer,
*preheater device
*Luxury cab.Luxury seat,adjustable steer wheel.
*220V engine heater
*1 year or 1500 working hours warranty
*Axle reduction and 16/70-20 tyres avaible
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
5.Hydraulic mechanical transmission,can make full use of engine power
6.Using four -wheel -drive,low wide-based off-road tires
7.A single pipeline hydraulic brake system up for wheel brake shoe
Specifications:
1.0 Engine Details
(1) Model: Luotuo 4108 engine/Cummins
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 60KW/80Hp
(4) Rated Speed: 2400 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 180g/kw. H
2.0 Transmission System
Hydraulic converter + drive shaft + axles
3.0 Bucket
(1) Bucket Capacity: 0.8 m3
(2) Bucket width: 1800mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment
4.0 Overall Dimensions
(1) Overall Length: 4900mm
(2) Overall Height: 2720mm
(3) Overall Width: 1870mm
(4) Max. Lifting Height: 4500mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5600mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering
6.0 Brake System
(1) Service Brake: Four Wheel Chuck brake
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 16/70-20, 12ply (
(2) Width: 307mm
(3) Diameter: 831mm
8.0 Wheelbase: 2430mm
9.0 Track: 1470mm
10. System pressure: 20Mpa; Hydraulic output: 96L/min

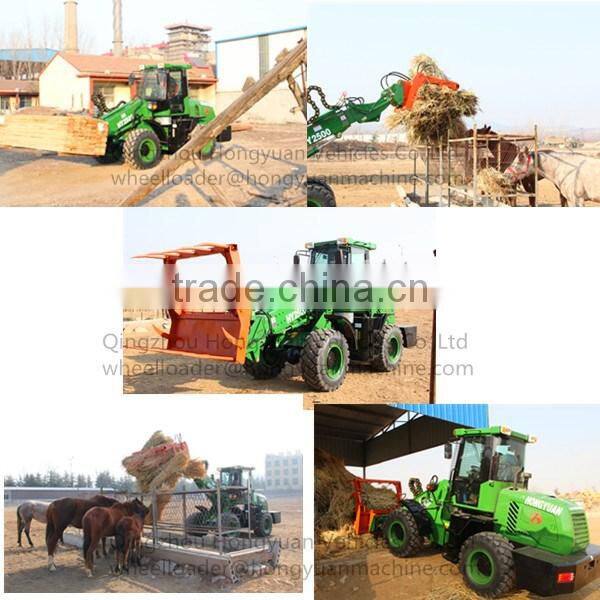

Multi-Function:

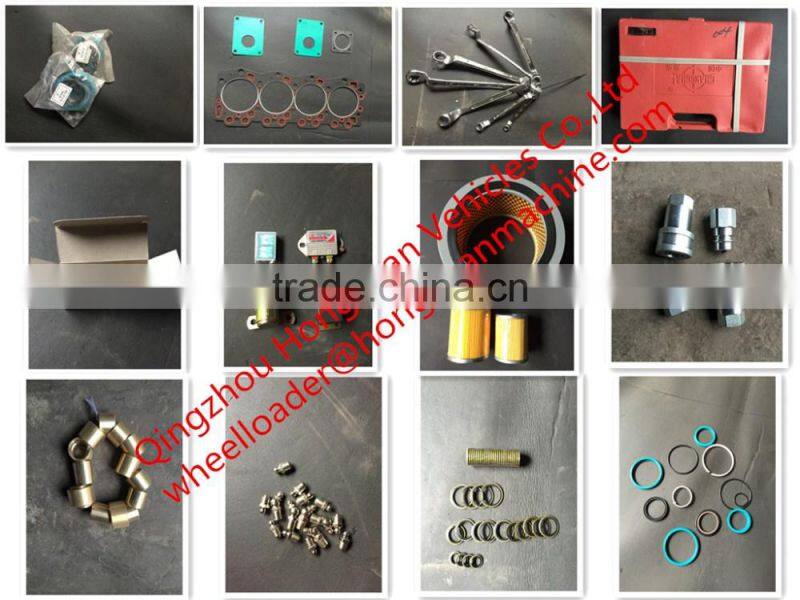

Som easy-damage spareparts for every wheel loader:
If you are interested in this machine.Please contact with me
Qingzhou Hongyuan Vehicles Co.,Ltd
No.852 Longshan Road.Qingzhou City.Shandong Province.P.R.China
TeL:86-13963639827
Skype:shi.yongqiang
