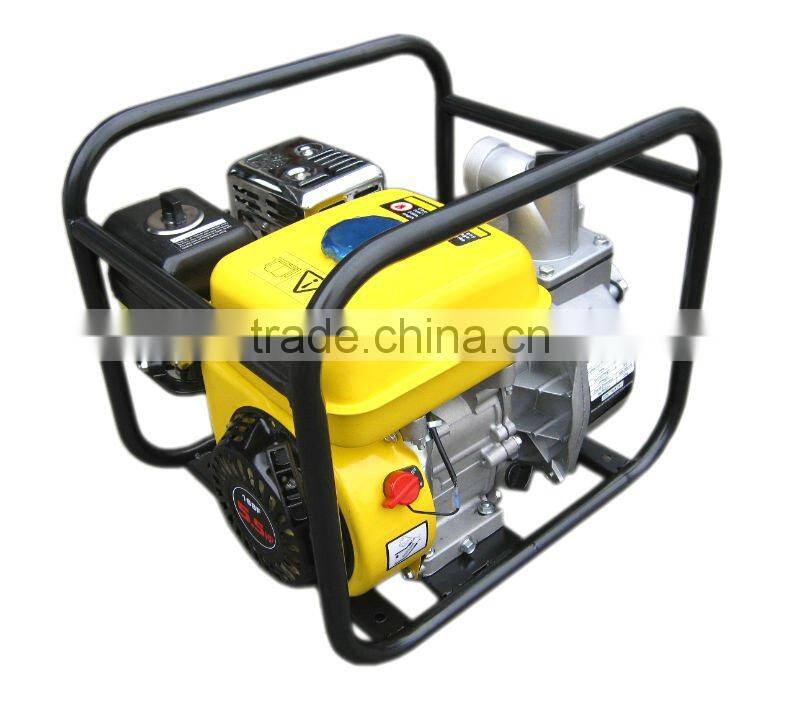

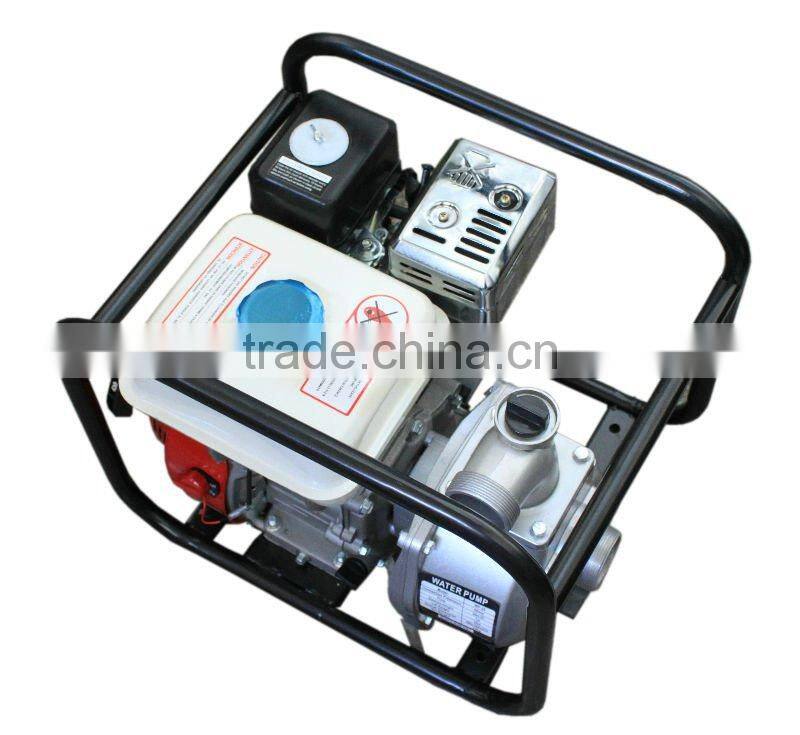

JK-WP20 Gasoline WATER PUMP
Water Pump WP20 Specifications
Engine 168F
Displacement 163 cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 8.5:1
Oil Alert Std
Pump type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal Silicon Carbide/Silicon Carbide
Priming time 70 sec. @ 16.4 ft.
Drive system Direct
Discharge capacity 187 gal./min.
Suction port diameter 2"
Discharge port diameter 2"
Total head lift 98 ft.
Suction head lift 26 ft.
Maximum pressure 42 psi
Solids handling 13/16 inches
Dry weight 104 lbs.
Dimensions (LxWxH) 49CM x 39CM x 41CM
Heavy-duty 2" construction trash pump
Easy starting Honda OHV commercial engine
187 gal./min capacity
Solid handling capability up to 13/16"
Full frame protection
Easy quick clean out port
Easy service wear plate
Product Description
Engine:
1) Type: 1-cylinder, 4-stroke, air-cooled gasoline engine
2) Work capacity: 163cm³
3) Max. Output: 5.5horsepower/4, 000rpm
4) Ignition system: Non-contact transistor
5) Starting system: Recoil/Electric
6) Fuel tank capacity: 3.6L
7) Continuous operating time: 5hours
8) Engine oil system capacity: 0.6L
Water Pump:
1) Diameter of outlet: 2inch
2) Max. Delivery lift: 23m
2) Suction height: 8m
3) Max. Water displacement: 30m³ /hr
Packing:
