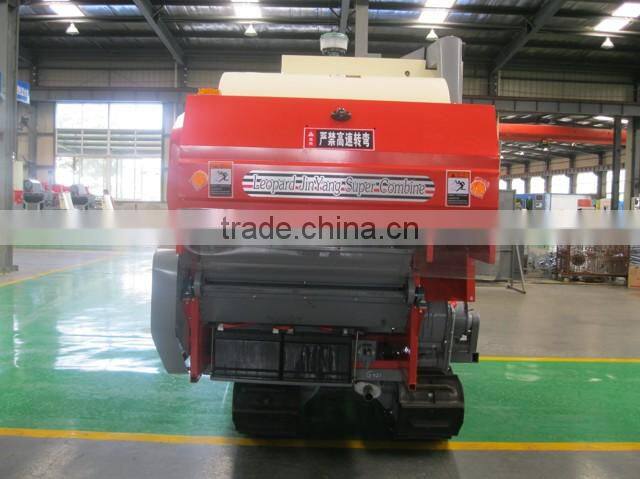

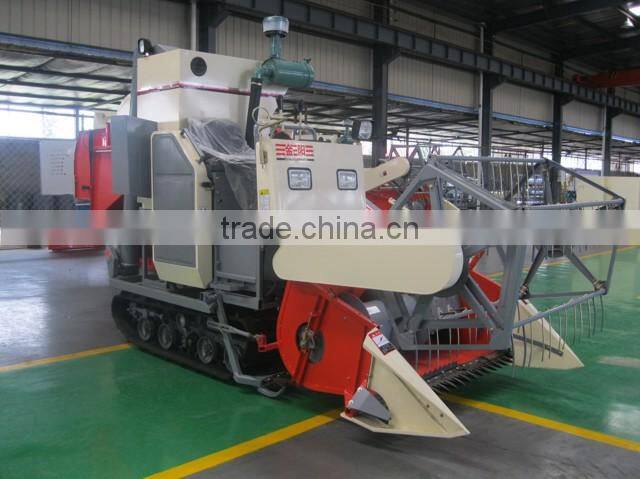

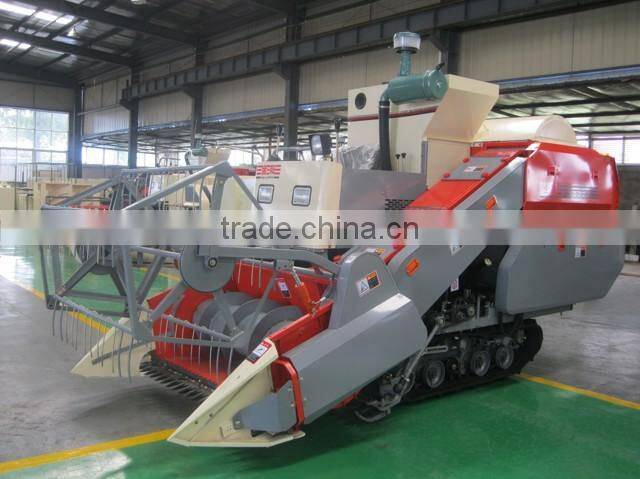

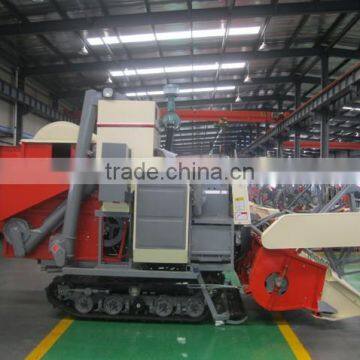

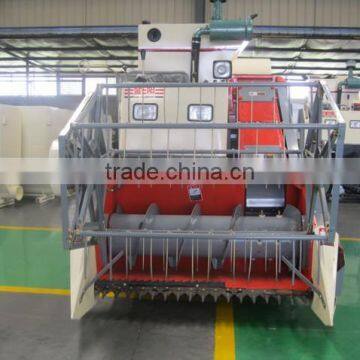

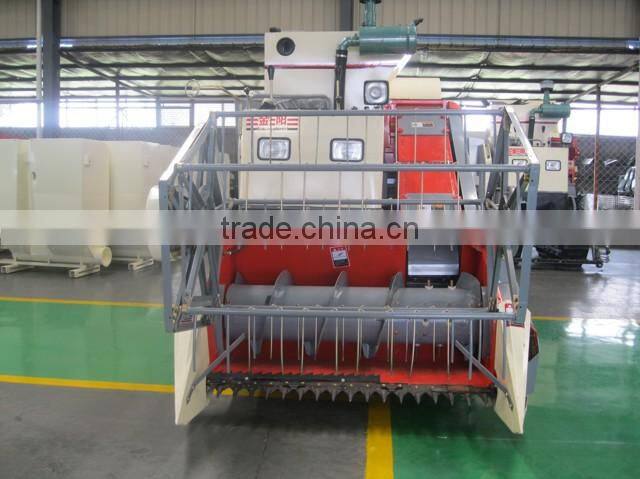

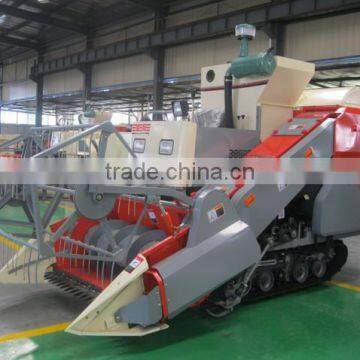

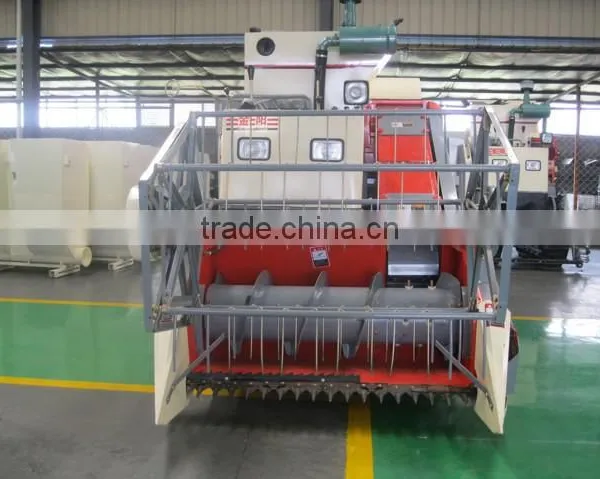

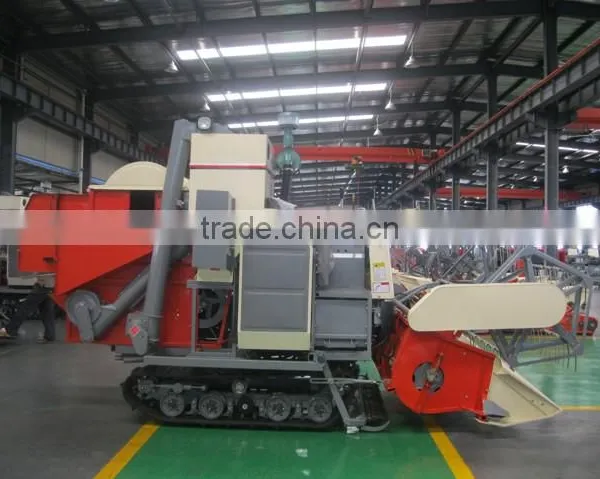

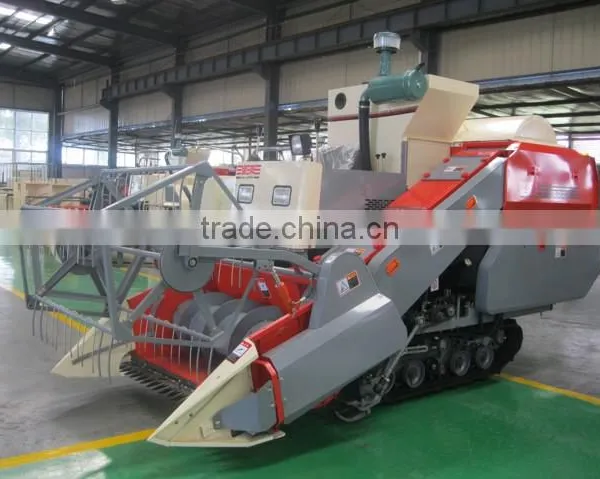

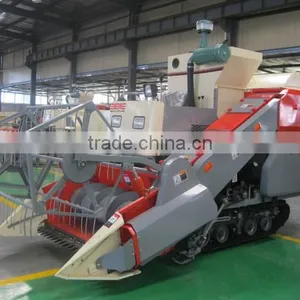

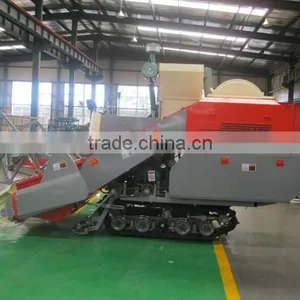

Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > Mini Combine Harvester 1.2
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
GRAIN,WHEAT, RAPE SEED
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4lZ-4.0Z: Full Feed Rice & Wheat BigTank Combine HarvesterNegotiableMOQ: 3 Sets -
4lZ-4.0Z Full Feed Rice & Wheat Combine Harvester Big TankNegotiableMOQ: 3 Sets
-
4lz-3.0full Feed Rice Wheat Big Tank Combine HarvesterUS$ 12,000 - 12,000MOQ: 3 Units
-
4LZ-3.0 Rice &Wheat Combine HarvesterUS$ 12,000 - 12,000MOQ: 3 Units
-
4LZ-3.0 Rice &Wheat Big Tank Combine HarvesterUS$ 12,000 - 12,000MOQ: 3 Units
Condition
New
Application
GRAIN,WHEAT, RAPE SEED
Type
Combine Harvester
Drive Type
Gear Drive
Usage
Grain Harvester
Place of Origin
Sichuan, China
Brand Name
K-BOS
Model Number
4LZ-1.2
Dimension(L*W*H)
4200*1650*2010
Weight
1700
Certificate
CE
Warranty
1 year
After-sales Service Provided
Overseas service center available
Specifications
easy for operation and maintenanceSpecifications
Easy for operation and maintenance.
It is a safety and energy-saving machine.
Threshing loss less than 3%, high purity 98%.
| Model: | 4LZ-1.2 Combine Harvester | Application: | Grain, Wheat, Rape Seed. | |
| Type: | Full-feed, Track Combine | Safety & Handling: | See Operation Manual | |
| Make: | JinYang Bao | Occupation: | Manufacturer | |
| Product Description: | 4LZ-1.2 combine with excellent performance in different crops and different field conditions, | |||
| the machine is easy for operation and maintenance, it is a safety and energy-saving machine. | ||||
| Quality System: | Production Plant Accredited to GB/T 19001-2008 / ISO9001 :2008. | |||
| Packing: | Strong standard export package suitable for long distance transportation. | |||
| Specification: | ||||
| Overall Dimension | Length×Width×Heights ( mm ): 4200×1650×2010 | |||
| Weight (kg) | 1700 | |||
| Feeding Capacity( kg/s ) | 1.2 | |||
| Harvesting Capacity(hm²/h): | 0.1-0.3 | |||
| Engine | Engine Model: QC2105; QC2110 | |||
| Rated Power ( kw/hp ): 28.6/38.9; 32/43 | ||||
| Engine Type: Water-Cooled, 2-Cylinder, DI-Injection, Vertical Diesel. | ||||
| Rated Rotation Speed (r/min) : 2600 | ||||
| Fuel Tank Capacity ( l ): 25 | ||||
| Driving System | Crawlers: Track Gauge( mm ): 850; Width×ground contact length ( mm ): 350×1200 | |||
| Crawler Steering Radius ( mm ): left turn 2300; right turn 2300 | ||||
| Minimum Ground Clearance (mm): 250 | ||||
| Type of Gearbox: Mechanism + HST(3F, 3R) | ||||
| Theoretical Operating Speed ( km/h ): 0~4 | ||||
| Type of Brake: By Foot. | ||||
| Steering: Clutch and Brake. | ||||
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 | |||
| Height Adjustment: Hydaulics. | ||||
| Cutting Bar Length ( mm ): 1400 | ||||
| Type of Cutting Bar Auger: Screw Conveying. | ||||
| Type of Blade: V Type / Left and Right. | ||||
| Rape Seed Extension: Optional | ||||
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow | |||
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 550×1070 | |||
| Reshresher: Blade-Rotation | ||||
| Vibrating Sieve: Adjustable Seive / Meshing Seive ( optional ) | ||||
| Blower Fan: Type: Swirl; Diameter( mm ): 260; Nos: 2 | ||||
| Grain Storing | Machanism Option: Grain Tank with Unloading Auger, Capacity: 432L | |||
| Manual Operation. | | |||
