Rice Combine Harvester

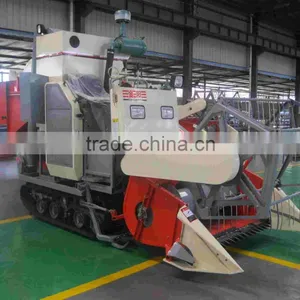

Rice Combine Harvester photo-1

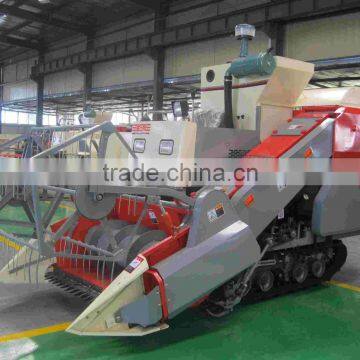

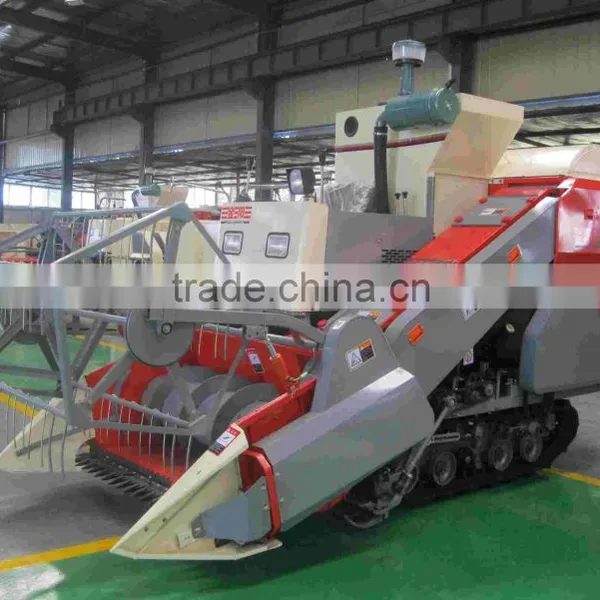

Rice Combine Harvester photo-2

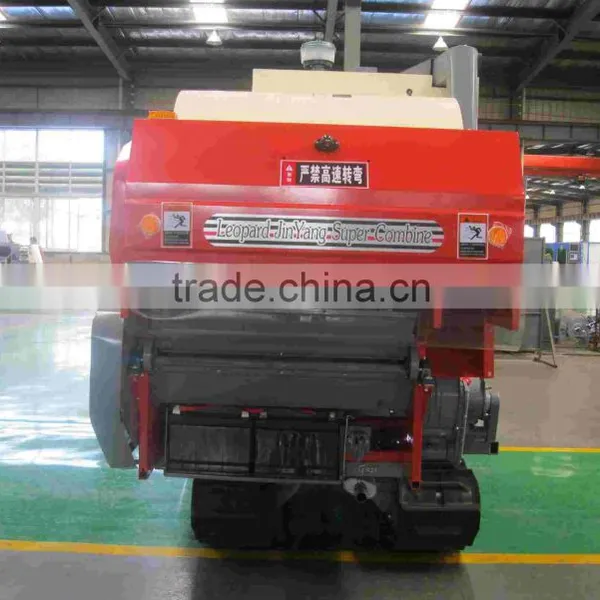

Rice Combine Harvester photo-3

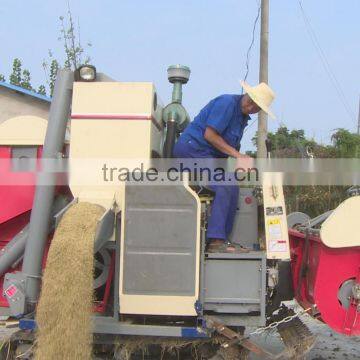

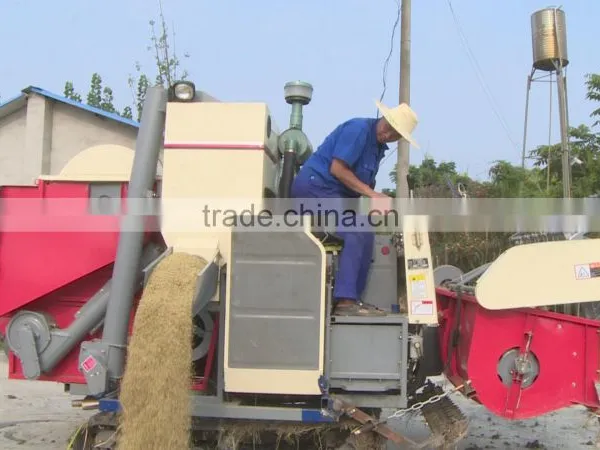

Rice Combine Harvester photo-4

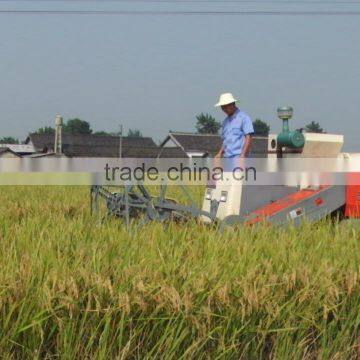

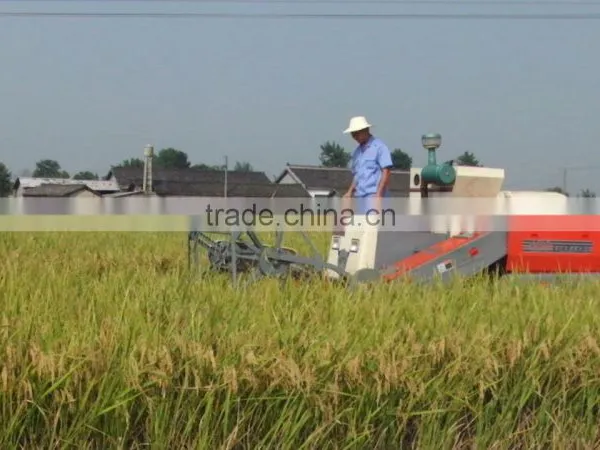

Rice Combine Harvester photo-5
Negotiable MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
rice, wheat, rape seed
Type:
Mini Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application rice, wheat, rape seed
Type Mini Harvester
Drive Type Gear Drive
Usage Grain Harvester
Place of Origin Sichuan, China
Brand Name JYB
Model Number 4LZ-1.2
Dimension(L*W*H) 4200*1650*2010
Weight 1700
Certificate Other
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Easy operation and maintenance.
Light body weight less pressure to field.

Overall Dimension Length×Width×Heights ( mm ):   4200×1650×2010

Weight (kg) 1700

Feeding Capacity( kg/s ) 1.2

Harvesting Capacity(hm²/h): 0.1-0.3

Engine Engine Model:   QC2105;   QC2110
  Rated Power ( kw/hp ):   28.6/38.9;   32/43
  Engine Type:   Water-Cooled, 2-Cylinder, DI-Injection, Vertical Diesel.

Driving System Crawlers:   Track Gauge( mm ): 850; Width×ground contact length ( mm ): 350×1200
  Minimum Ground Clearance (mm):   250
  Type of Gearbox:   Mechanism + HST(3F, 3R)
  Steering:   Clutch and Brake.

Cutting header Pickup Reel:   Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5
  Height Adjustment:   Hydaulics.
  Cutting Bar Length ( mm ):   1400
  Rape Seed Extension: Optional

Threshing & Separating Threshing System:   Spiked Tooth Axial Flow
& Cleaning System Threshing Cylinder Size Diameter × Length ( mm ):   550×1070
  Reshresher:   Blade-Rotation
  Vibrating Sieve:   Adjustable Seive / Meshing Seive ( optional )
  Blower Fan:   Type: Swirl; Diameter( mm ): 260; Nos: 2

Grain Storing Machanism Option: Grain Tank with Unloading Auger, Capacity:   432L
  Manual Operation.
