Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Grader > Motor Grader With CE

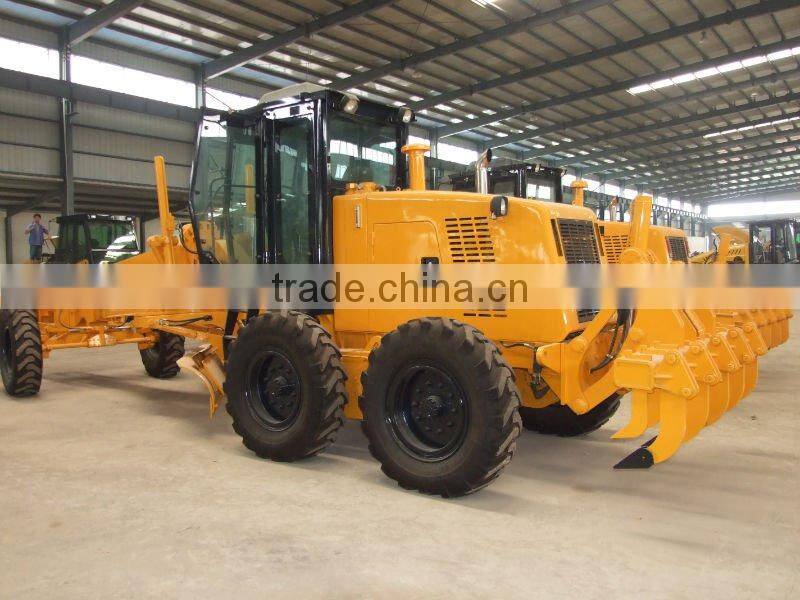

Motor Grader With CE

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Model Number:

PY130

Contact Supplier Request Quote Chat Now

Qingzhou Honorsun Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Model Number PY130

Operating mass	kg	11000
Engine model		6BT5.9-C135
Engine power	KW	100
Engine speed	r/min	2200
Overall dimensions	mm	8015×2380×3050
Max. forward speed	km/h	42
Max. backward speed	km/h	30
Speed gear number		F6/R3
Tractive force(f=0.75)	KN	61.3
Hydraulic system pressure	Mpa	16
Max. steering angle of front wheels	°	±49
Max. lean angle of front wheels	°	±17
Max. oscillation angle of front axle	°	±15
Max. oscillation angle of balance box		Front/Rear 16
Frame articulation angle	°	±27
Min. turning radius using articulation	mm	6600
Blade length × height	mm	3710×610
Maximum lift above ground	mm	410
Maximum depth of cutting	mm	535
Maximum blade position angle	°	90
Blade cutting angle	°	28—70
Engine		Cummins engine

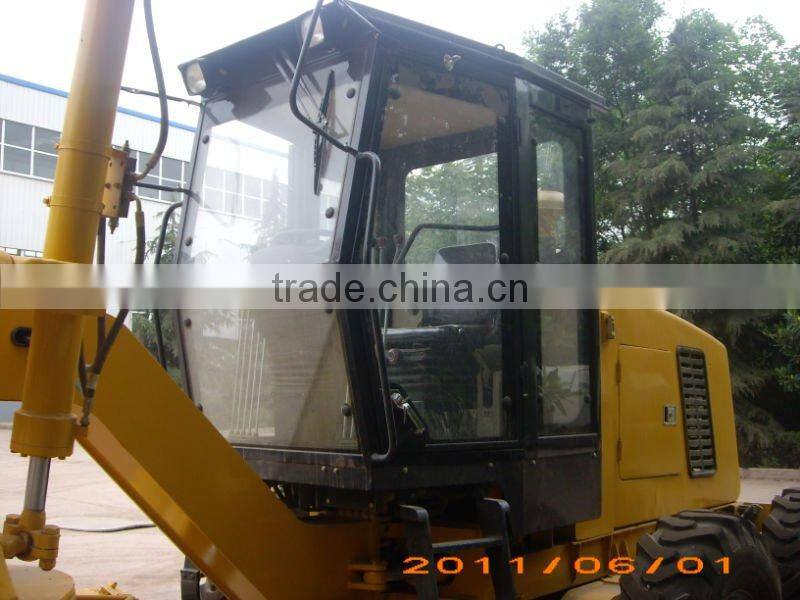

Cab		Cabin with AC.
Packing		Nude Cargo

(1)

Name of Commodity and Specification

(2)

Quantity

(3)

PY135C Motor Grader

(Air-condition, Cummins 6BT5.9 diesel engine)

1 unit

Optional equipments

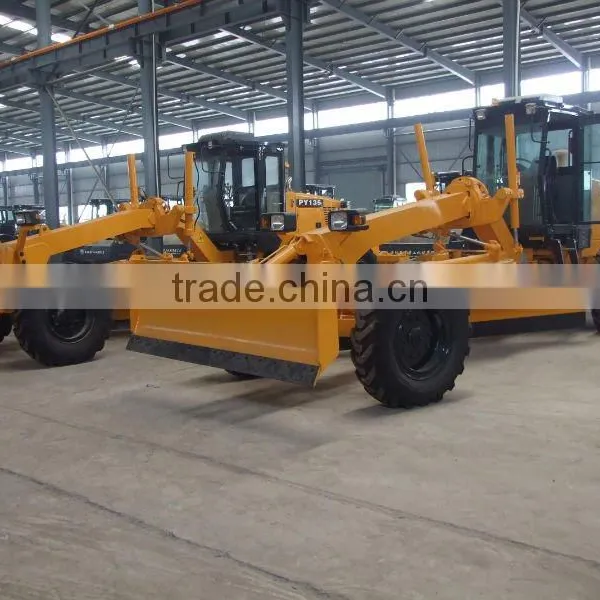

Front blade

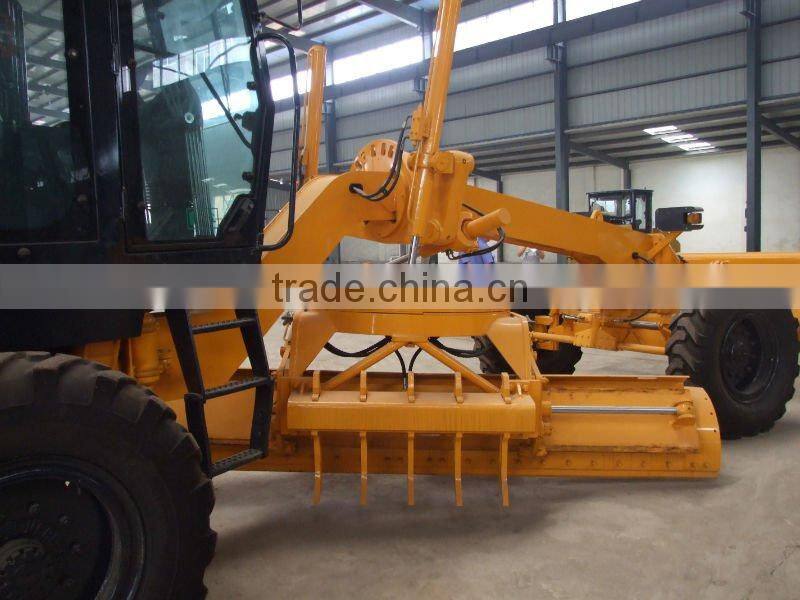

Middle ripper

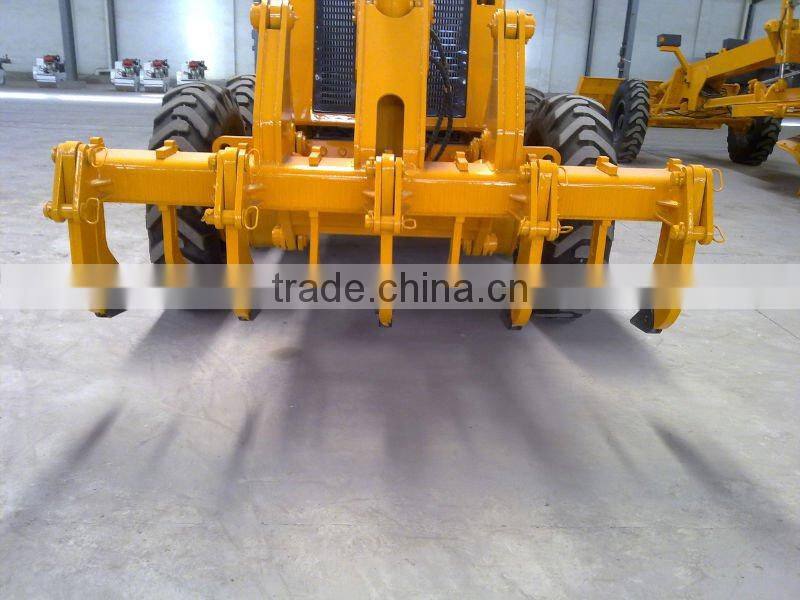

Rear ripper

1. Payment Terms: By TT. 30% deposit should be paid after singing contract, and 70% should be paid before goods dispatching from the factory.

2. Delivery Time: Within 35days after receiving deposit.

3. Guarantee Time: One year or 1500 working hours which comes first after the date of B/L.

4. Shipping by/in: 1) one unit with cabin & rear ripper/1*40HQ; Front blade to be disassembled and shipped separately. 2) R.O.R.O shipment

5. The price is effective in one month, but it can change at any time if exchange rate changes greatly.

3. Main Features

1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.

2. Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.

3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.

4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.

5. Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.

6. Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.

7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.

8. Dual diagonal appearance with whole metal hood 1m×1m distance.

9. Electro-hydraulically operated with entire instrumental monitoring system, Free

-maintenance OPTIMA Sweden batteries have.

10. It is optional for front bulldozing plate and rear ripper.
