2013 hot sale new style CS915 mini wheel loader with CE,joystick,quickhitch

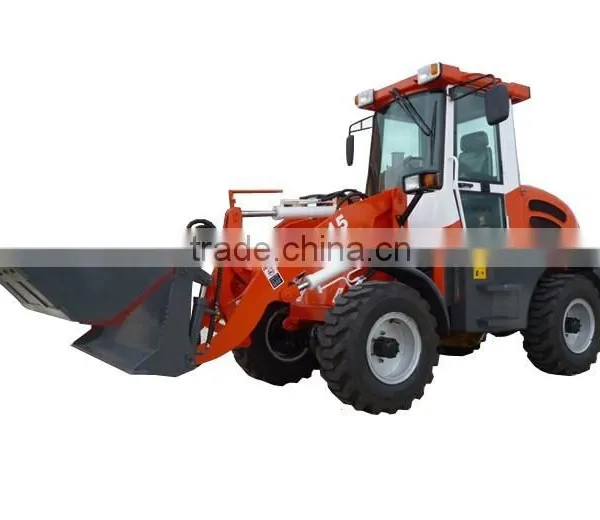

CS915 compact wheel loader with CE
1) Fully Hydraulic Driving
2) CE Certificated
3) Euroiii Engine
4) Multi-function
1.0 Engine Details
(1) Model: Xinchai 498BT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW
(4) Rated Speed: 2200 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)
3.0 Bucket
(1) Bucket Capacity: 0.7 m3
(2) Bucket width: 1750mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Max. Breakout Force: 36KN
(5) Rated Load: 1500kg
(6) Operating Weight: 3500kg
4.0 Overall Dimensions
(1) Overall Length (Bucket on ground position): 5200mm
(2) Overall Height
(a) Ground to Cab Top: 2670mm
(b) Dumping Height: 2650mm
(c) Min. Base to the Ground: 260mm
(3) Overall Width: 1730mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 12-16.5
8.0 Wheelbase: 2100mm
9.0 Track: 1500mm
1. Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency.
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance.
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction.
4. The brake system of the wheel loader is of the four wheel internal expanding type and is hydraulically operated on both front and rear wheels.
5. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view.
Welcome to Contact me , if you have any questions about the products
