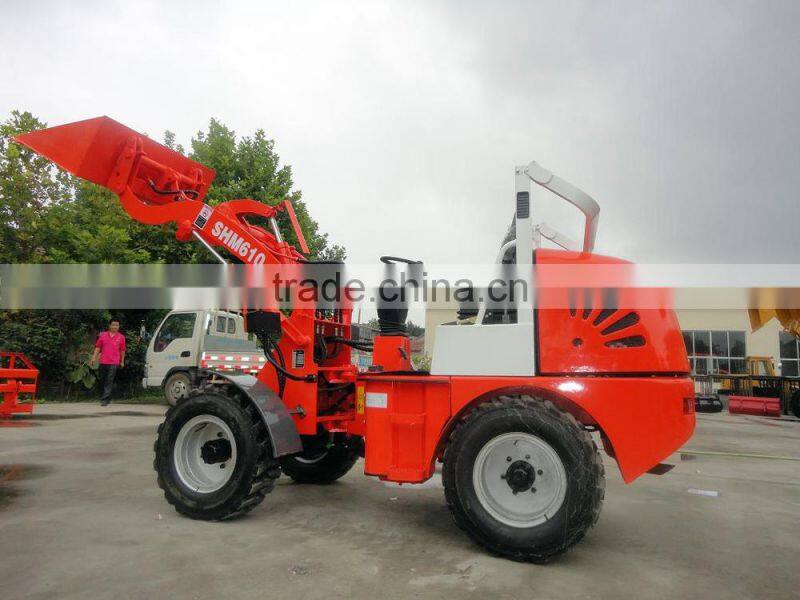

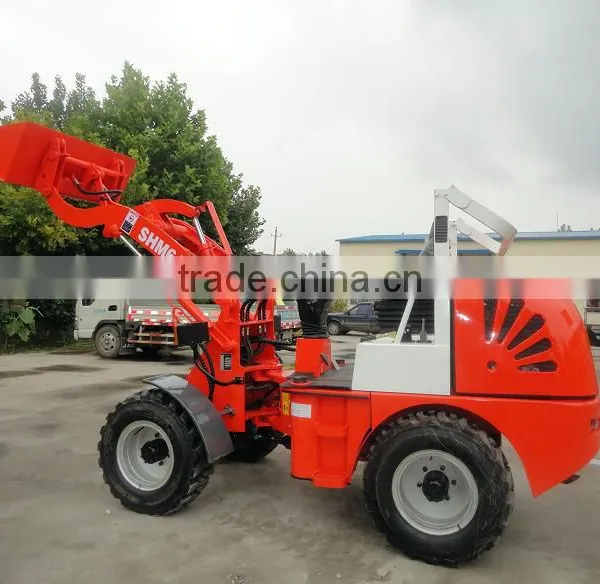

Help CenterChina Mini Wheel Loader/mini 4WDloaders With ce for Sale
Related Products
-
Hydraulic China Made Articulated Wheel Loader/Four-wheel Drive Wheel LoaderUS$ 8,500 - 8,800MOQ: 1 Set -
Mini Wheel Loader Zl12f Popular in EuropeUS$ 8,500 - 8,800MOQ: 1 Set
-
Hot Sale! Wheel Loader1.0-1.5 Ton Wheel Loader Zl12FUS$ 8,500 - 8,800MOQ: 1 Set
-
China Made Wheel Backhoe Loader/bucket Wheel Loader/wheel Loader ForksUS$ 12,000 - 14,000MOQ: 1 Set
-
China Wood Cane Loader With Grass Fork and Wood ForkUS$ 35,000 - 37,000MOQ: 1 Unit
1) Euro3 engine EPA motor
2)yanmar engine
3)euro III euro3 engine EuroIII engine
4)1T wheel loader
5)snow bucket
Use:
Wheel loader 1.0 4WD is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. To shovel and load or move earth, sand and stone, coal cinder, trash and other bulk materials. Compact wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
1) Euro3 engine EPA motor
2)yanmar engine
3)euro III euro3 engine EuroIII engine
4)1T wheel loader
5)snow bucket
Specifications of 1.0 4WD wheel loader
Model |
1.0 4WD |
Overall Dimension(mm) |
4450/1430/2370(2000) |
Rated Loading(t) |
1.0 |
Operating Weight(kg) |
2690 |
Maximum Breakout Force(kN) |
35 |
Min.Ground Clearance(mm |
230 |
Steering Angle(°) |
35 |
Min.Swerve Diameter(mm) |
3750 |
Forward I(km/h) |
0-7 |
Forward II(km/h) |
0-24 |
Backward I(km/h) |
0-7 |
Backward II(km/h) |
0-24 |
Engine Model |
490BPG |
Rated Power/Rated speeds(kw/r/nin) |
32.4/2400 |
Rated Bucket Capacity(m3) |
0.54. |
Total Time(S) |
9 |
Dump Height Fully Raised(mm) |
2420 |
Reach Fully Raised (mm) |
850 |
Tyre Type Specification |
10/12.5 |
Tyre Width (mm) |
270 |
Track Base (mm) |
1160 |
Wheel Base (mm) |
1710 |
Maximum Speed (km/h) |
24
|
The cars will be matching the following features:
