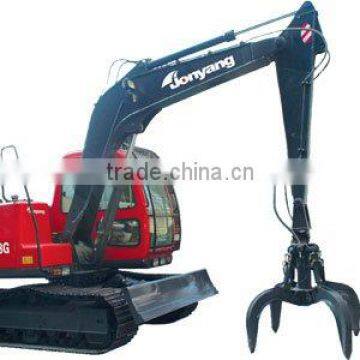

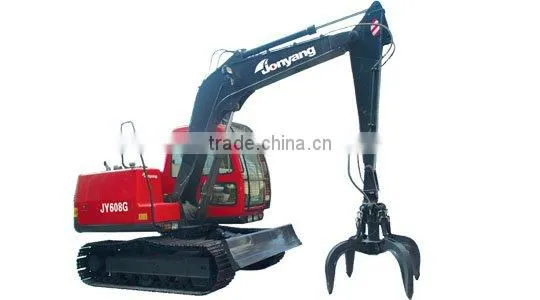

Crawler Grabber Excavator JY608
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
zy
Model Number:
Crawler Grabber Excavator JY608
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
zy
Model Number
Crawler Grabber Excavator JY608
Condition
New
Moving Type
Crawler Excavator
Operating Weight
8
Bucket capacity
0.25
Maximum Digging Height
2.5
Maximum Digging Depth
2.6
Machine Weight
5.6ton
Max Digging Radius
3.
Engine,hydraulic pump,valve.swivel pump and drive motor.
2,Suitable for scrap yard operations and scrap metal shipping operations.
3,Ergonomically design air-conditioned and wide vision cabin for comfort of the operator.
| Operating Weight(Tons) | 8 | Hydauli Flow Rate(L/min) | 198 |
| Standard Bucket Capacity(m3) | 0.25 | Hydraulic Pressure(Mpa) | 30 |
| Range of Bucket Capacity(m3) | Travelling Speed(km/h) | 3.8 | |
| Diesel Engine Manufcturer | Cummins | Grade Climbing Capacity(%) | 40 |
| Engine Model | B3.3 | Slewing Speed(r/min) | 12 |
| Engine Power(KW) | 60 |
|
|
| Hydraulic System |
|
||
| A | Overall Width(mm) | 2200 |
| B | Overall Height of Cab(mm) | 2511 |
| C | Engine Cover Height(mm) | 1739 |
| D | Counterweight Clearance(mm) | 806 |
| E | Ground Clearance(mm) | 308 |
| F | Upperstructuer Width(mm) | 2160 |
| G | Rear-End Lenghth/Swing Radius(mm) | 1850 |
| H | Overall Track Length(mm) | 1750 |
| I | Track Length on ground (mm) | 2180 |
| J | Gauge Width (mm) | 398 |
| k | Track Width(mm) | 1679 |
| L | Ground Pressure(mm) |
| Stick Length(mm) | ||
| A | Maximum Lifting Height(mm) | 4764 |
| B | Maximum Dumping Height(mm) | 4324 |
| C | Maximum Lifting Reach(mm) | 5476 |
| Operating Weight(Tons) | 8 | Hydauli Flow Rate(L/min) | 198 |
| Standard Bucket Capacity(m3) | 0.25 | Hydraulic Pressure(Mpa) | 30 |
| Range of Bucket Capacity(m3) | Travelling Speed(km/h) | 3.8 | |
| Diesel Engine Manufcturer | Cummins | Grade Climbing Capacity(%) | 40 |
| Engine Model | B3.3 | Slewing Speed(r/min) | 12 |
| Engine Power(KW) | 60 |
|
|
| Hydraulic System |
|
||
