Yuchai YC55SR Hydraulic Mini Excavator With CE

Name: Yuchai YC55SR Hydraulic Mini Excavator With CE
Brand: yuchai
SKU: 141307876
Availability: InStock

US$ 25,900 - 27,500 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

yuchai

Model Number:

yuchaI35-8

Qingzhou Honorsun Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name yuchai

Model Number yuchaI35-8

Condition New

Moving Type Crawler Excavator

Operating Weight 5.5 ton

Bucket capacity 0.22m3

Maximum Digging Height 2.4

Maximum Digging Depth 1.5

Machine Weight 1720kg

Max Digging Radius 2.2

Certification CE

After-sales Service Provided Overseas service center available

CHINA BEST MINI EXCAVATOR BRAND YUCHAI

CHINA NO.1 THERE ARE NO NO 2

weight:5750kg(12676lbs)
	rated power:36.9KWrpm/2200 (49.45hp/2100rpm)
	standard bucket capacity:0.2mm³(7.07cu.ft.)
	standard bucket wide:740mm(2'5''in)

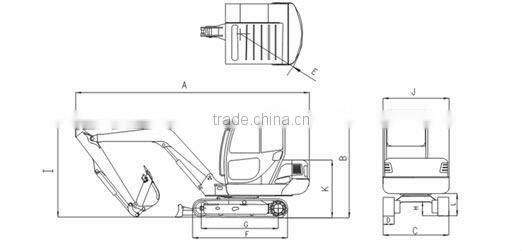

A Overall Length (trans pos)	5715mm (18'9''in)
B Overall Height (trans pos)	2715mm(8'11''in)
C Width of Undercarriage	2000mm (6'7''in)
D Width Of Track	400mm (1'4''in)
E Maximum Platform Tail Turning Radius	996mm (3'3''in)
F Length Of Track	2608mm (8'7''in)
G Sprocket To Idler Centres	2060mm(6'9''in)
H Dist. Between Undercarriage And Ground	292mm (1'in)
J Width Of Platform	1936mm(6'4''in)
L Dist. Between Platform And Ground	680mm(2'3''in)

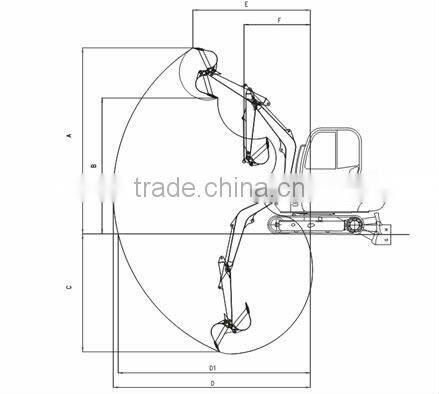

A Maximum Digging Height	5940mm(19'6''in)
B Maximum Dumping Height	4050mm(13'3''in)
C Maximum Digging Depth	3790mm(12'5''in)
D Maximum Digging Radius	6370mm(20'11''in)
D1 Maximum Digging Dist.of Ground	6227mm(20'5''in)
E Maximum Height Digging Radius	6370mm(20'11''in)
F Maximum Platform Tail Turning Radius	2465mm(8'1''in)
G Maximum Depth for Bulldozing	460mm(1'6''in)
H Maximum Height for Bulldozing	350mm(1'2''in)
Maximum Digging Force	25.7mm

characteristic

Operation Hydraulic Pressure	24.5Mpa (3552.5)
Maximum Digging Force	≥37.5KN (8433lbs)
Maximum Gradeadility	≥70%(35°)
Travelling Speed	4.4~5 km/h (2.7~3.1)
Maximum traction	44KN (9894lbs)
Swing Speed of Platform	10.5~12rpm
Variable displacement pump capacity	50+5ml/r (0.011+0.0011gallon/r)
Fixed displacement pump capacity	4.5+4.5ml/r(0.001+0.001gallon/r)
Swing Angularity of the Digging Arm(left/right)	75°/50°
