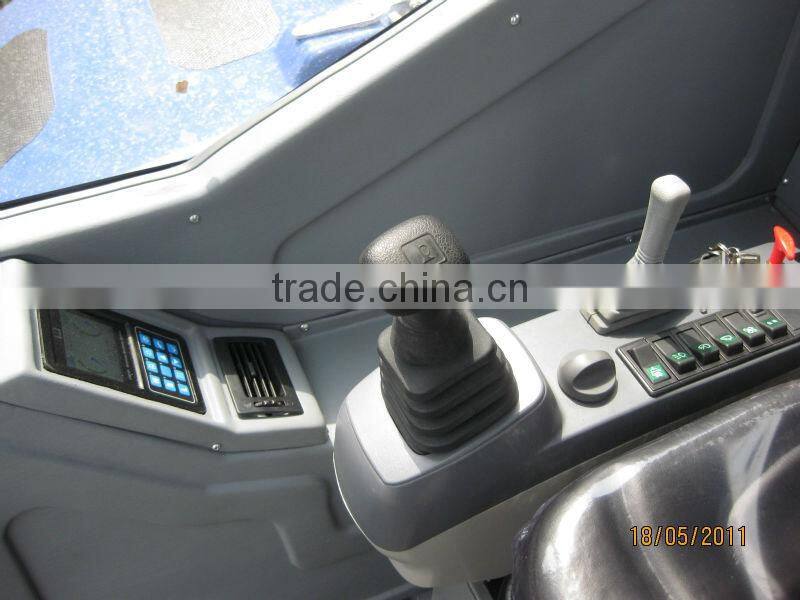

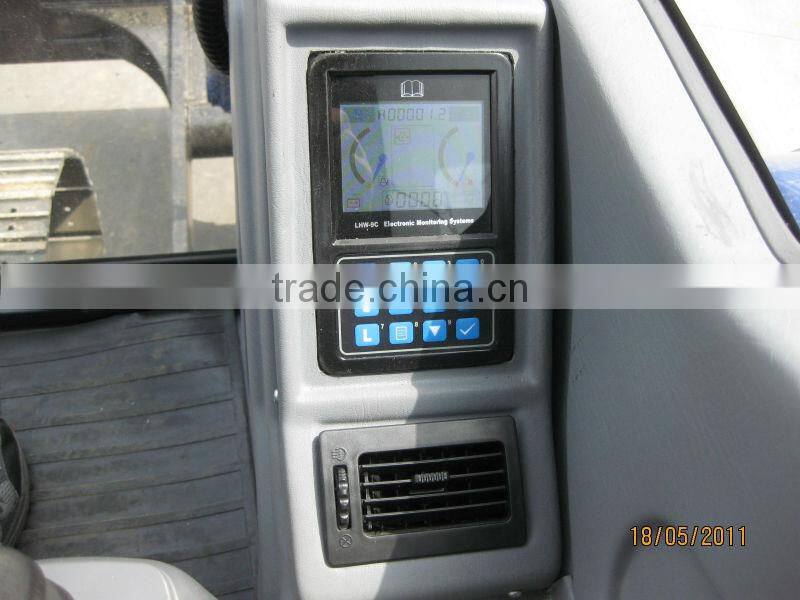

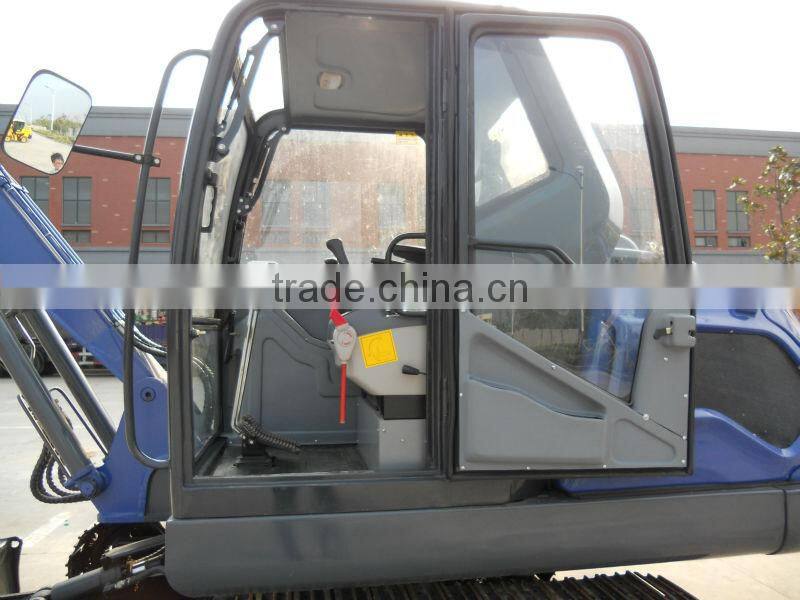

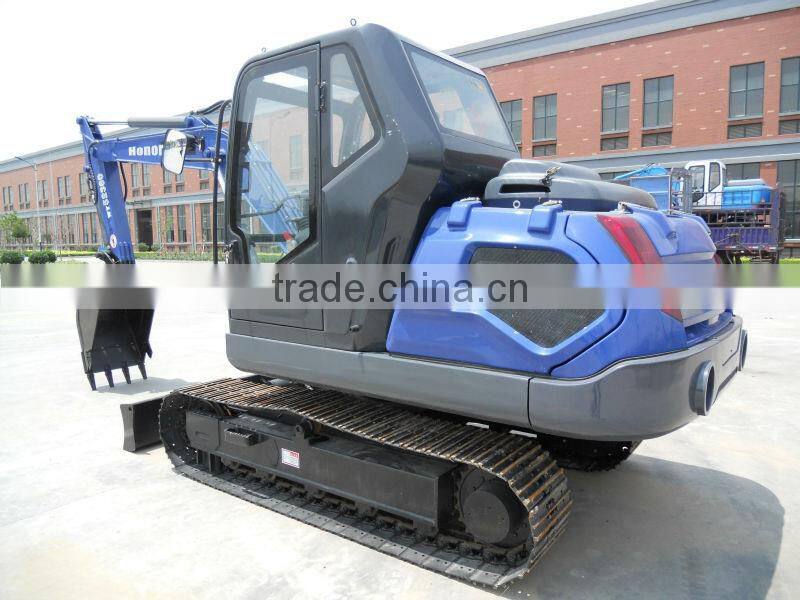

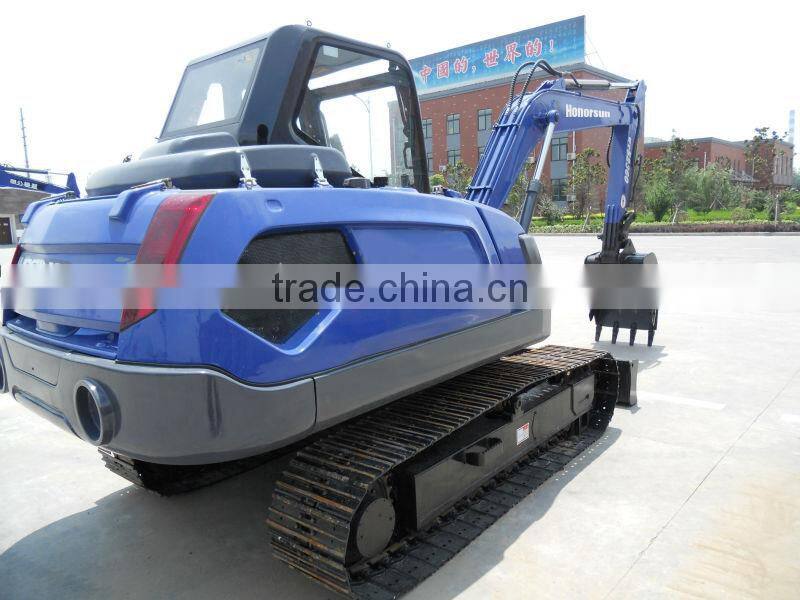

HS85 Hydraulic Crawler Excavators with comfortable cabin

HS85 Crawler Excavator Specification

                           Specification

Operating weight of total machine

7900 kg

Bucket capacity

0.35 m³

Performance

Swing speed

11 r/min

Traveling speed

2~3.85 km/h

Grade ability

57.7%

Max.digging force

55kN

Engine

Model

YUCHAI

Rated power

56 kw

Rated speed

2200 r/min

Operation range

Max.digging radius

6640mm

Max.digging depth

4300mm

Max.digging height

7270mm

Max.dump height

4575mm

                       Overall Dimensions

length

7260 mm

width

2088 mm

height

2690 mm

Min. Ground clearance

345 mm

Tail Slewing Radius

2150 mm

center distance of track

1640 mm

Hydraulic system

Rated Pressure

22 Mpa
